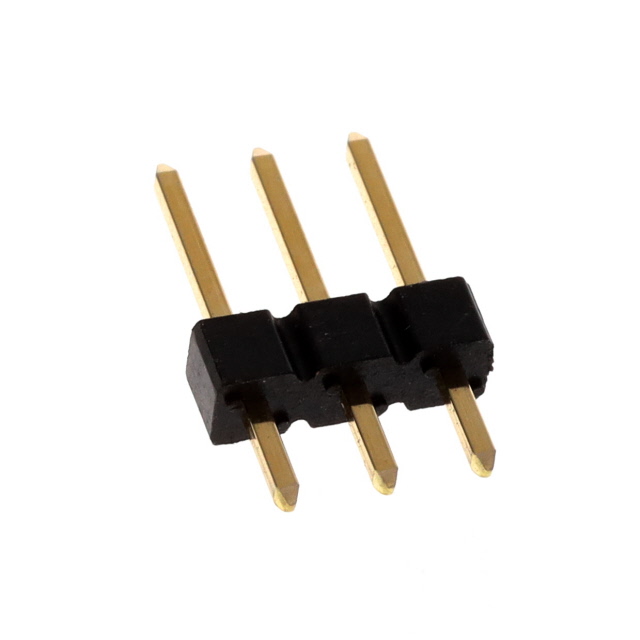

10129378-903004BLF
ActiveAmphenol ICC (FCI)
CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10129378-903004BLF |
|---|---|
| Applications | Industrial, Medical, General Purpose, Telecommunications |
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1 µin |
| Contact Finish Thickness - Mating | 0.025 µm |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Length - Post | 0.09 " |
| Contact Length - Post | 2.29 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 12.9 mm |
| Overall Contact Length | 0.508 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
10129378 Series
| Part | Fastening Type | Insulation Color | Number of Positions | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Overall Contact Length | Overall Contact Length | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Type | Current Rating (Amps) | Style | Contact Finish - Mating | Contact Material | Applications | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Length - Mating [x] | Contact Length - Mating [x] | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Insulation Height | Insulation Height | Shrouding | Contact Shape | Connector Type | Insulation Material | Contact Length - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Push-Pull | Black | 10 | All | 1 µin | 0.025 µm | 0.538 " | 13.67 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.318 " | 8.08 mm | 1 | 0.12 in | 3.05 mm | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | |||
Amphenol ICC (FCI) | Push-Pull | Black | 9 | All | 1 µin | 0.025 µm | 0.538 " | 13.67 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.318 " | 8.08 mm | 1 | 0.12 in | 3.05 mm | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | |||
Amphenol ICC (FCI) | Push-Pull | Black | 7 | All | 1 µin | 0.025 µm | 0.45 " | 11.43 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.23 in | 1 | 0.12 in | 3.05 mm | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | 5.84 mm | |||
Amphenol ICC (FCI) | Push-Pull | Black | All | 1 µin | 0.025 µm | 0.508 in | 12.9 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.318 " | 8.08 mm | 1 | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | 0.09 " | 2.29 mm | ||||
Amphenol ICC (FCI) | Push-Pull | Black | 2 | All | 1 µin | 0.025 µm | 0.45 " | 11.43 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.23 in | 1 | 0.12 in | 3.05 mm | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | 5.84 mm | |||
Amphenol ICC (FCI) | Push-Pull | Black | 20 | All | 1 µin | 0.025 µm | 0.45 " | 11.43 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.23 in | 1 | 0.12 in | 3.05 mm | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | 5.84 mm | |||
Amphenol ICC (FCI) | Push-Pull | Black | 12 | All | 1 µin | 0.025 µm | 0.538 " | 13.67 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.318 " | 8.08 mm | 1 | 0.12 in | 3.05 mm | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | |||
Amphenol ICC (FCI) | Push-Pull | Black | 10 | All | 1 µin | 0.025 µm | 0.42 " | 10.67 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.23 in | 1 | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | 5.84 mm | 0.09 " | 2.29 mm | |||
Amphenol ICC (FCI) | Push-Pull | Black | 4 | All | 1 µin | 0.025 µm | 0.45 " | 11.43 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.23 in | 1 | 0.12 in | 3.05 mm | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | 5.84 mm | |||
Amphenol ICC (FCI) | Push-Pull | Black | 9 | All | 1 µin | 0.025 µm | 0.42 " | 10.67 mm | 105 ░C | -55 °C | UL94 V-0 | Male Pin | 3 A | Board to Board Cable | Gold | Copper Alloy | General Purpose Industrial Medical Telecommunications | Through Hole | 0.1 in | 2.54 mm | 0.23 in | 1 | Solder | 0.1 in | 2.54 mm | Unshrouded | Square | Cuttable Header | Thermoplastic | 5.84 mm | 0.09 " | 2.29 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.11 | |
| 10 | $ 0.08 | |||
| 100 | $ 0.06 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.05 | |||
| 5000 | $ 0.04 | |||
| 10000 | $ 0.04 | |||
Description
General part information
10129378 Series
Connector Header Through Hole 3 position 0.100" (2.54mm)
