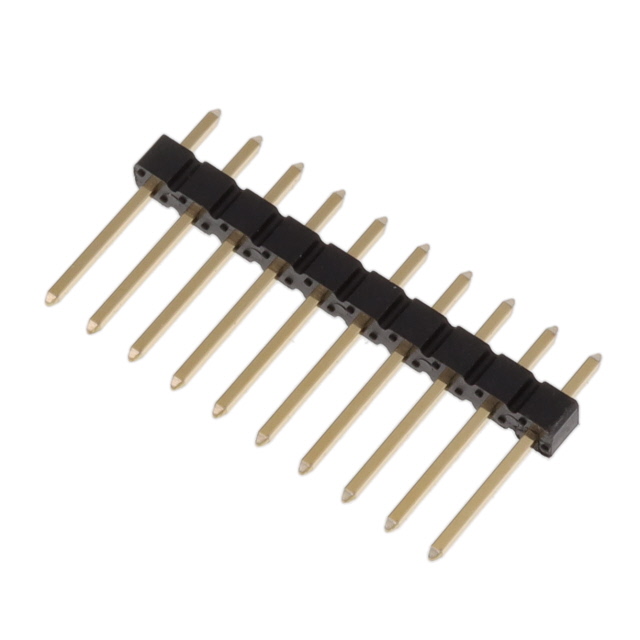

10129378-910003BLF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-12-1223 Other Related Documents econostik productpresentation Other Related Document +1

10129378-910003BLF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Documentsgs-12-1223 Other Related Documents econostik productpresentation Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10129378-910003BLF

Applications	Industrial, Medical, General Purpose, Telecommunications
Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.538 "
Overall Contact Length	13.67 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

10129378 Series

Part	Fastening Type	Insulation Color	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Type	Current Rating (Amps)	Style	Contact Finish - Mating	Contact Material	Applications	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Insulation Height	Insulation Height	Shrouding	Contact Shape	Connector Type	Insulation Material	Contact Length - Mating	Contact Length - Post	Contact Length - Post
Amphenol ICC (FCI) 10129378-910003BLF	Push-Pull	Black	10	All	1 µin	0.025 µm	0.538 "	13.67 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	1	0.12 in	3.05 mm	Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic
Amphenol ICC (FCI) 10129378-909003BLF	Push-Pull	Black	9	All	1 µin	0.025 µm	0.538 "	13.67 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	1	0.12 in	3.05 mm	Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic
Amphenol ICC (FCI) 10129378-907001BLF	Push-Pull	Black	7	All	1 µin	0.025 µm	0.45 "	11.43 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.23 in		1	0.12 in	3.05 mm	Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic	5.84 mm
Amphenol ICC (FCI) 10129378-903004BLF	Push-Pull	Black		All	1 µin	0.025 µm	0.508 in	12.9 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	1			Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic		0.09 "	2.29 mm
Amphenol ICC (FCI) 10129378-902001ALF	Push-Pull	Black	2	All	1 µin	0.025 µm	0.45 "	11.43 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.23 in		1	0.12 in	3.05 mm	Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic	5.84 mm
Amphenol ICC (FCI) 10129378-920001BLF	Push-Pull	Black	20	All	1 µin	0.025 µm	0.45 "	11.43 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.23 in		1	0.12 in	3.05 mm	Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic	5.84 mm
Amphenol ICC (FCI) 10129378-912003BLF	Push-Pull	Black	12	All	1 µin	0.025 µm	0.538 "	13.67 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.318 "	8.08 mm	1	0.12 in	3.05 mm	Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic
Amphenol ICC (FCI) 10129378-910002BLF	Push-Pull	Black	10	All	1 µin	0.025 µm	0.42 "	10.67 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.23 in		1			Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic	5.84 mm	0.09 "	2.29 mm
Amphenol ICC (FCI) 10129378-904001BLF	Push-Pull	Black	4	All	1 µin	0.025 µm	0.45 "	11.43 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.23 in		1	0.12 in	3.05 mm	Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic	5.84 mm
Amphenol ICC (FCI) 10129378-909002BLF	Push-Pull	Black	9	All	1 µin	0.025 µm	0.42 "	10.67 mm	105 ░C	-55 °C	UL94 V-0	Male Pin	3 A	Board to Board Cable	Gold	Copper Alloy	General Purpose Industrial Medical Telecommunications	Through Hole	0.1 in	2.54 mm	0.23 in		1			Solder	0.1 in	2.54 mm	Unshrouded	Square	Cuttable Header	Thermoplastic	5.84 mm	0.09 "	2.29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.31
		10	$ 0.24
		100	$ 0.18
		500	$ 0.15
		1000	$ 0.13
		5000	$ 0.11
