1-1609112-3

Active

TE Connectivity Corcom Filters

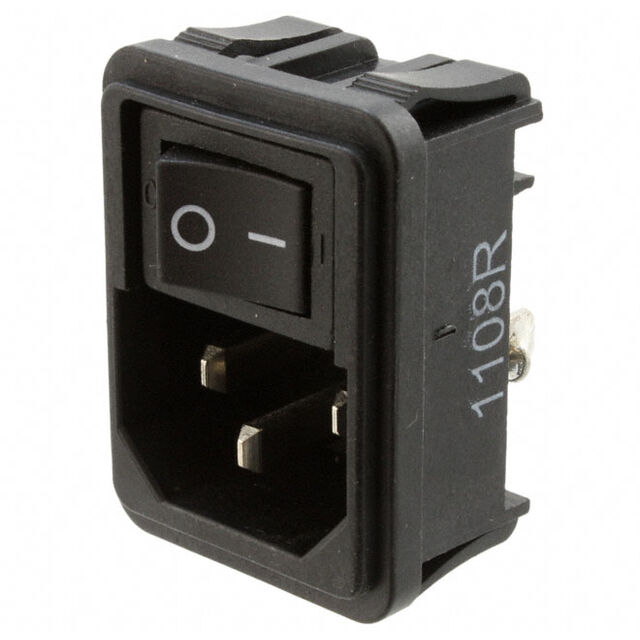

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

1-1609112-3

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1609112-3	1609112 Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	15 A	10 - 15 A
Current Rating - Filter	-	15 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial, Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In, Flange
Panel Cutout Dimensions [x]	26.7 mm	26.7 - 28.09 mm
Panel Cutout Dimensions [y]	31.6 mm	31.6 - 39.12 mm
Panel Thickness	-	1 mm
Panel Thickness	-	0.039 in
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Panel Thickness [Max]	0.098 in	0.083 - 0.098 in
Panel Thickness [Max]	2.49 mm	2.1 - 2.49 mm
Panel Thickness [Min]	0.79 mm	0.63 - 0.79 mm
Panel Thickness [Min]	0.031 "	0.025 - 0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC	120 VAC

1609112 Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Filter Type	Connector Style	Switch Features	Connector Type	Termination	Termination	Mounting Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Current Rating - Appliance Inlet	Approval Agency	Panel Thickness	Panel Thickness	Panel Thickness [custom]	Panel Thickness [custom]	Current Rating - Filter
TE Connectivity Corcom Filters 1-1609112-3	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In	0.098 in	2.49 mm	0.79 mm	0.031 "	26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE
TE Connectivity Corcom Filters 1-1609112-6	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In					26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE	1 mm	0.039 in
TE Connectivity Corcom Filters 1-1609112-8	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In					26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE			0.059 in	1.5 mm
TE Connectivity Corcom Filters 1609112-1	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Flange, Panel Mount					28.09 mm	39.12 mm	250 VAC	120 VAC	10 A	CSA, UL, VDE
TE Connectivity Corcom Filters 1-1609112-9	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In					26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE			0.059 in	1.5 mm
TE Connectivity Corcom Filters 1-1609112-5	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In	0.083 "	2.1 mm	0.63 mm	0.025 "	26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE
TE Connectivity Corcom Filters 1-1609112-1	Filtered (EMI, RFI) - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In	0.098 in	2.49 mm	0.79 mm	0.031 "	26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE					15 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.95
		10	$ 12.37
		25	$ 11.89
		50	$ 11.42
		100	$ 10.78
		250	$ 9.83
		500	$ 9.20
		1000	$ 8.44

Description

General part information

1609112 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Documents

Technical documentation and resources
