1-1609112-1

Active

TE Connectivity Corcom Filters

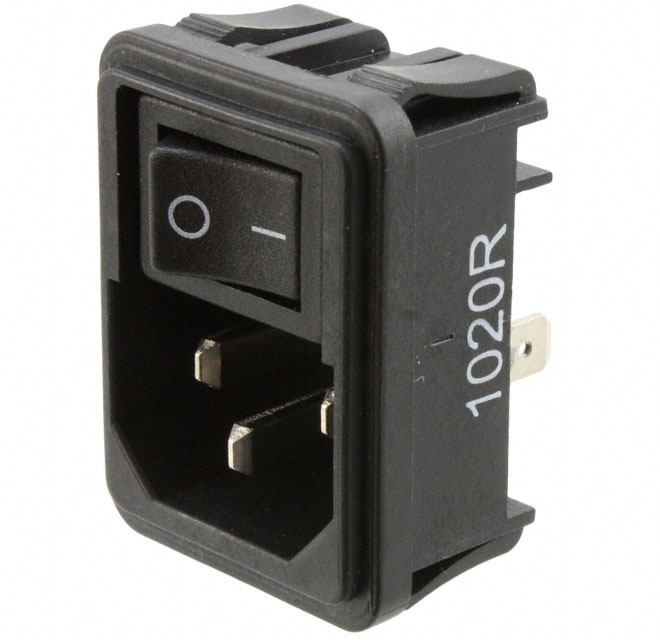

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector Chart Datasheet

1-1609112-1

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector Chart Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.98
		42	$ 9.80
		126	$ 9.25
		1008	$ 7.24

Description

General part information

1609112 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Documents

Technical documentation and resources

Corcom EMI/RFI Filter Selector Chart

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1609112-1	1609112 Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	15 A	10 - 15 A
Current Rating - Filter	15 A	15 A
Filter Type	Filtered (EMI, RFI) - Commercial	Unfiltered - Commercial, Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In, Flange
Panel Cutout Dimensions [x]	26.7 mm	26.7 - 28.09 mm
Panel Cutout Dimensions [y]	31.6 mm	31.6 - 39.12 mm
Panel Thickness	-	1 mm
Panel Thickness	-	0.039 in
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Panel Thickness [Max]	0.098 in	0.083 - 0.098 in
Panel Thickness [Max]	2.49 mm	2.1 - 2.49 mm
Panel Thickness [Min]	0.79 mm	0.63 - 0.79 mm
Panel Thickness [Min]	0.031 "	0.025 - 0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC	120 VAC

1609112 Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Filter Type	Connector Style	Switch Features	Connector Type	Termination	Termination	Mounting Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Current Rating - Appliance Inlet	Approval Agency	Panel Thickness	Panel Thickness	Panel Thickness [custom]	Panel Thickness [custom]	Current Rating - Filter
TE Connectivity Corcom Filters 1-1609112-3	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In	0.098 in	2.49 mm	0.79 mm	0.031 "	26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE
TE Connectivity Corcom Filters 1-1609112-6	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In					26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE	1 mm	0.039 in
TE Connectivity Corcom Filters 1-1609112-8	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In					26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE			0.059 in	1.5 mm
TE Connectivity Corcom Filters 1609112-1	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Flange, Panel Mount					28.09 mm	39.12 mm	250 VAC	120 VAC	10 A	CSA, UL, VDE
TE Connectivity Corcom Filters 1-1609112-9	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In					26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE			0.059 in	1.5 mm
TE Connectivity Corcom Filters 1-1609112-5	Unfiltered - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In	0.083 "	2.1 mm	0.63 mm	0.025 "	26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE
TE Connectivity Corcom Filters 1-1609112-1	Filtered (EMI, RFI) - Commercial	IEC 320-C14	Switch On-Off	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	Panel Mount, Snap-In	0.098 in	2.49 mm	0.79 mm	0.031 "	26.7 mm	31.6 mm	250 VAC	120 VAC	15 A	CSA, UL, VDE					15 A
