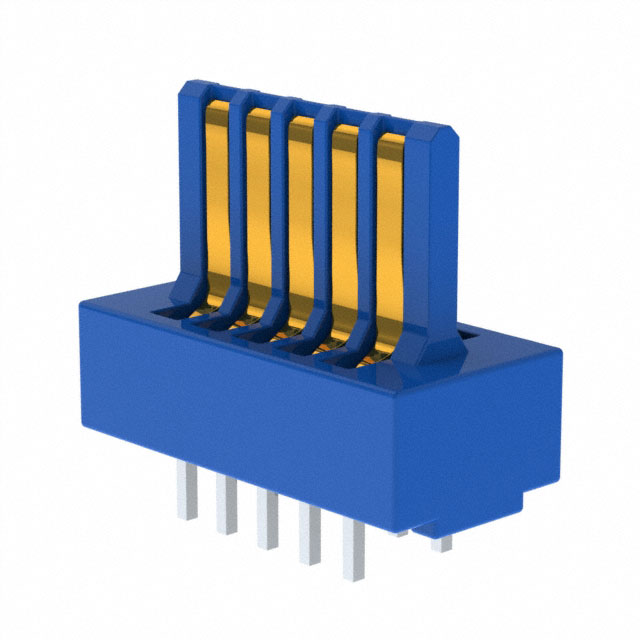

ECC05MMWN
ActiveSullins Connector Solutions
CONN CARDEDGE MALE 10POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
ECC05MMWN
ActiveSullins Connector Solutions
CONN CARDEDGE MALE 10POS 0.100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECC05MMWN |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Fits Female Edgecards |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Gender | Male |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
ECC05 Series
...
| Part | Termination | Read Out | Card Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Finish | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Flange Feature | Card Thickness | Card Thickness | Contact Material | Pitch [x] | Pitch [x] | Number of Positions | Number of Positions/Bay/Row [custom] | Gender | Features | Color | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Solder | Dual | Fits Female Edgecards | Through Hole Right Angle | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Male | |||||
Sullins Connector Solutions | Press-Fit | Dual | Non Specified - Dual Edge | Through Hole | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Female | Open Card Slot | Black | ||||||
Sullins Connector Solutions | Solder | Dual | Non Specified - Dual Edge | Through Hole | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Female | Cantilever | |||||||
Sullins Connector Solutions | Solder | Dual | Fits Female Edgecards | Through Hole Right Angle | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Male | ||||||||
Sullins Connector Solutions | Solder | Dual | Fits Female Edgecards | Through Hole Right Angle | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Male | ||||||||
Sullins Connector Solutions | Solder | Dual | Non Specified - Dual Edge | Through Hole | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | Side Mount Opening Unthreaded | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Female | Blue | Full Bellows | 0.125 in | 3.18 mm | |||
Sullins Connector Solutions | Solder | Dual | Non Specified - Dual Edge | Board Edge Straddle Mount | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | 4-40 Threaded Insert Top Mount Opening | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Female | Card Extender | Blue | Full Bellows | ||||
Sullins Connector Solutions | Solder | Dual | Non Specified - Dual Edge | Through Hole | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | Top Mount Opening Unthreaded | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Female | Blue | Full Bellows | 0.125 in | 3.18 mm | |||
Sullins Connector Solutions | Solder | Dual | Non Specified - Dual Edge | Through Hole | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | Side Mount Opening Unthreaded | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Female | Blue | Full Bellows | 0.125 in | 3.18 mm | |||
Sullins Connector Solutions | Solder | Dual | Fits Female Edgecards | Through Hole | 0.76 Ám | 30 Áin | 2 | Gold | Polybutylene Terephthalate (PBT) | 125 °C | -65 ░C | 0.062 in | 1.57 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 10 | 5 | Male |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 3.97 | |
Description
General part information
ECC05 Series
10 Position Male Connector Fits Female Edgecards Gold 0.100" (2.54mm)
