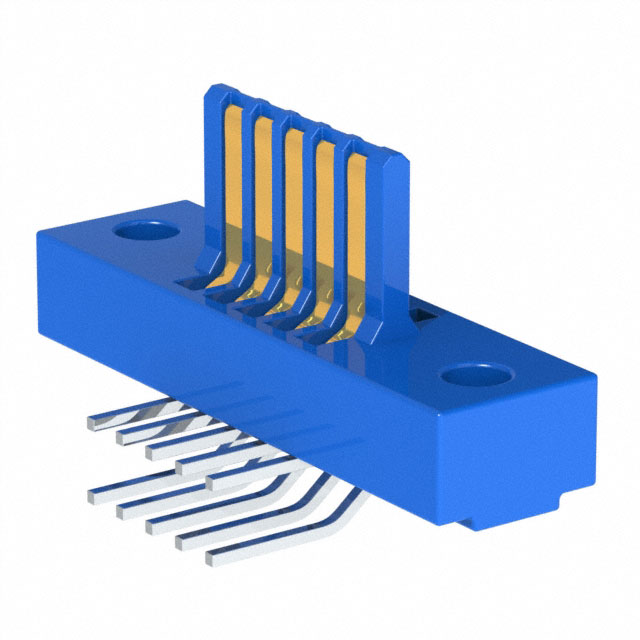

ECC05MMBD

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 10POS 0.100

ECC05MMBD

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 10POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

ECC05 Series

10 Position Male Connector Fits Female Edgecards Gold 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

Specification	ECC05MMBD

Card Thickness	0.062 in
Card Type	Fits Female Edgecards
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Phosphor Bronze
Flange Feature	Top Opening, Unthreaded, Flush Mount
Flange Feature Diameter	0.125 in
Gender	Male
Material - Insulation	PBT, Polybutylene Terephthalate
Mounting Type	Through Hole, Right Angle
Number of Positions	10, 5
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder

ECC05 Series

...

Part	Material - Insulation	Gender	Mounting Type	Card Thickness	Number of Rows	Read Out	Contact Material	Flange Feature Diameter	Flange Feature	Termination	Number of Positions	Contact Finish Thickness	Contact Finish	Card Type	Operating Temperature (Max)	Operating Temperature (Min)	Pitch	Color	Features	Contact Type
Sullins Connector Solutions ECC05MMBD	PBT Polybutylene Terephthalate	Male	Right Angle Through Hole	0.062 in	2	Dual	Phosphor Bronze	0.125 in	Flush Mount Top Opening Unthreaded	Solder	5 10	30 µin	Gold	Fits Female Edgecards	125 °C	-65 °C	0.1 in
Sullins Connector Solutions ECC05DJWB	PBT Polybutylene Terephthalate	Female	Through Hole	0.062 in	2	Dual	Phosphor Bronze			Press-Fit	5 10	30 µin	Gold	Dual Edge Non Specified	125 °C	-65 °C	0.1 in	Black	Open Card Slot
Sullins Connector Solutions ECC05DETN	PBT Polybutylene Terephthalate	Female	Through Hole	0.062 in	2	Dual	Phosphor Bronze			Solder	5 10	30 µin	Gold	Dual Edge Non Specified	125 °C	-65 °C	0.1 in			Cantilever
Sullins Connector Solutions ECC05MMVN-S189	PBT Polybutylene Terephthalate	Male	Right Angle Through Hole	0.062 in	2	Dual	Phosphor Bronze			Solder	5 10	30 µin	Gold	Fits Female Edgecards	125 °C	-65 °C	0.1 in
Sullins Connector Solutions ECC05DRAI	PBT Polybutylene Terephthalate	Female	Right Angle Through Hole	0.062 in	2	Dual	Phosphor Bronze		4-40 Threaded Insert Top Mount Opening	Solder	5 10	30 µin	Gold	Dual Edge Non Specified	125 °C	-65 °C	0.1 in	Blue		Full Bellows
Sullins Connector Solutions ECC05DRYN	PBT Polybutylene Terephthalate	Female	Through Hole	0.062 in	2	Dual	Phosphor Bronze			Solder	5 10	30 µin	Gold	Dual Edge Non Specified	125 °C	-65 °C	0.1 in	Blue		Full Bellows
Sullins Connector Solutions ECC05MMDN	PBT Polybutylene Terephthalate	Male	Right Angle Through Hole	0.062 in	2	Dual	Phosphor Bronze			Solder	5 10	30 µin	Gold	Fits Female Edgecards	125 °C	-65 °C	0.1 in
Sullins Connector Solutions ECC05DRYS	PBT Polybutylene Terephthalate	Female	Through Hole	0.062 in	2	Dual	Phosphor Bronze	0.125 in	Side Mount Opening Unthreaded	Solder	5 10	30 µin	Gold	Dual Edge Non Specified	125 °C	-65 °C	0.1 in	Blue		Full Bellows
Sullins Connector Solutions ECC05DRYI-S13	PBT Polybutylene Terephthalate	Female	Board Edge Straddle Mount	0.062 in	2	Dual	Phosphor Bronze		4-40 Threaded Insert Top Mount Opening	Solder	5 10	30 µin	Gold	Dual Edge Non Specified	125 °C	-65 °C	0.1 in	Blue	Card Extender	Full Bellows
Sullins Connector Solutions ECC05DRTH	PBT Polybutylene Terephthalate	Female	Through Hole	0.062 in	2	Dual	Phosphor Bronze	0.125 in	Top Mount Opening Unthreaded	Solder	5 10	30 µin	Gold	Dual Edge Non Specified	125 °C	-65 °C	0.1 in	Blue		Full Bellows
