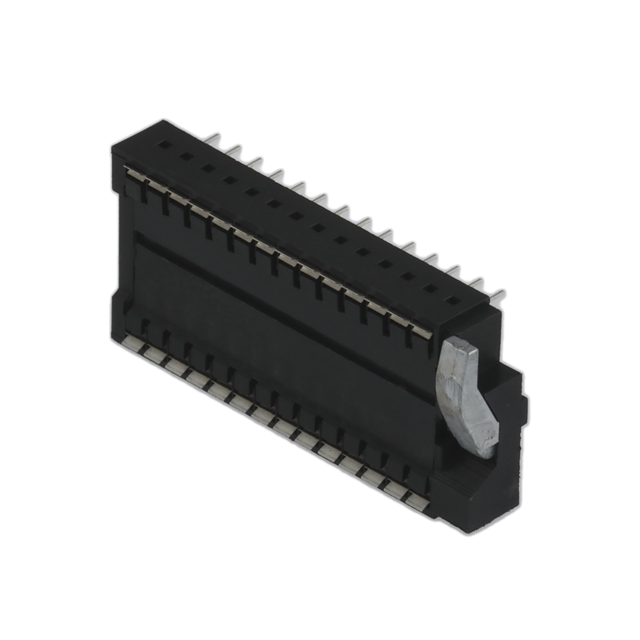

28-526-10
ActiveAries Electronics
CONN IC DIP SOCKET ZIF 28POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
28-526-10
ActiveAries Electronics
CONN IC DIP SOCKET ZIF 28POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 28-526-10 |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Current Rating (Amps) | 3 A |
| Features | Closed Frame |
| Housing Material | Glass Filled, Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 28 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 0.105 in |
| Termination Post Length | 2.67 mm |
| Type | ZIF (ZIP), DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.64 | |
| 15 | $ 11.21 | |||
| 105 | $ 9.77 | |||
| 1005 | $ 7.64 | |||
Description
General part information
28-526 Series
28 (2 x 14) Pos DIP, ZIF (ZIP) Socket Tin Through Hole
