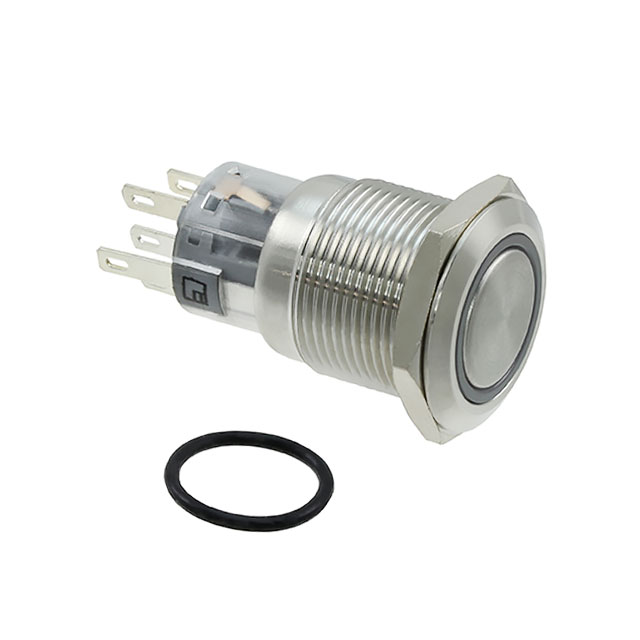

PV4F230SS-301

Active

E-Switch

SWITCH PUSHBUTTON SPDT 2A 24V

Deep-Dive with AI

Search across all available documentation for this part.

PV4F230SS-301

Active

E-Switch

SWITCH PUSHBUTTON SPDT 2A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV4F230SS-301

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	24 V

PV4F230 Series

Part	Switch Function	Illumination Voltage (Nominal)	Type	Current Rating (Amps)	Electrical Life	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style	Circuit	Mounting Type	Ingress Protection	Illumination Type, Color	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage Rating - DC	Color - Actuator/Cap	Actuator Marking
E-Switch PV4F230SS-3K1-M01	On-On	1.8 VDC 2.8 VDC	Anti-Vandal Illuminated	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant	LED Green/Orange	1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	Power Symbol
E-Switch PV4F230SS-M05	On-On		Anti-Vandal	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant		1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	No Marking
E-Switch PV4F230SS-324	On-On	12 VDC	Anti-Vandal Illuminated	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant	LED Orange	1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	No Marking
E-Switch PV4F230SS-341	On-On	2.8 VDC	Anti-Vandal Illuminated	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant	Blue LED	1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	No Marking
E-Switch PV4F230SS-301	On-On	2.8 VDC	Anti-Vandal Illuminated	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant	LED White	1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	No Marking
E-Switch PV4F230SS-345	On-On	24 V	Anti-Vandal Illuminated	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant	Blue LED	1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	No Marking
E-Switch PV4F230SS	On-On		Anti-Vandal	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant		1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	No Marking
E-Switch PV4F230SS-325	On-On	24 V	Anti-Vandal Illuminated	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant	LED Orange	1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	No Marking
E-Switch PV4F230SS-346	On-On	125 VAC	Anti-Vandal Illuminated	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant	Blue LED	1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	No Marking
E-Switch PV4F230SS-331	On-On	2.8 VDC	Anti-Vandal Illuminated	2 A	50000 Cycles	19 mm	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Panel Mount Front	IP65 - Dust Tight Water Resistant	Green LED	1000000 Cycles	55 °C	-20 C	Button Flush Round	24 V	Silver	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 23.34
		10	$ 21.20
		25	$ 20.25
		40	$ 19.18
		80	$ 18.46
		240	$ 17.27
		440	$ 14.74

Description

General part information

PV4F230 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
