PV4F230SS-324
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 2A 24V
Deep-Dive with AI
Search across all available documentation for this part.

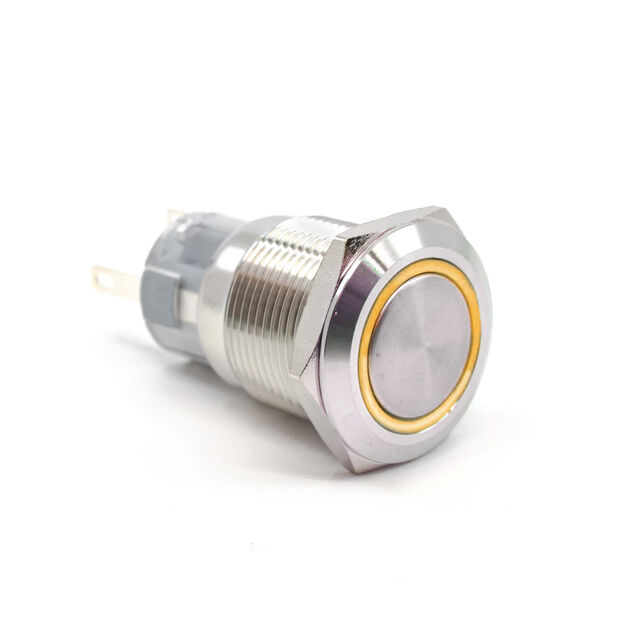

PV4F230SS-324
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 2A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PV4F230SS-324 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 2 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Orange |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 19 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 24 V |
PV4F230 Series
| Part | Switch Function | Illumination Voltage (Nominal) | Type | Current Rating (Amps) | Electrical Life | Panel Cutout Dimensions [diameter] | Termination Style | Termination Style | Termination Style | Circuit | Mounting Type | Ingress Protection | Illumination Type, Color | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Voltage Rating - DC | Color - Actuator/Cap | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | On-On | 1.8 VDC 2.8 VDC | Anti-Vandal Illuminated | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | LED Green/Orange | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | Power Symbol |
E-Switch | On-On | Anti-Vandal | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | No Marking | ||
E-Switch | On-On | 12 VDC | Anti-Vandal Illuminated | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | LED Orange | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | No Marking |
E-Switch | On-On | 2.8 VDC | Anti-Vandal Illuminated | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | Blue LED | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | No Marking |
E-Switch | On-On | 2.8 VDC | Anti-Vandal Illuminated | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | LED White | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | No Marking |
E-Switch | On-On | 24 V | Anti-Vandal Illuminated | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | Blue LED | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | No Marking |
E-Switch | On-On | Anti-Vandal | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | No Marking | ||
E-Switch | On-On | 24 V | Anti-Vandal Illuminated | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | LED Orange | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | No Marking |
E-Switch | On-On | 125 VAC | Anti-Vandal Illuminated | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | Blue LED | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | No Marking |
E-Switch | On-On | 2.8 VDC | Anti-Vandal Illuminated | 2 A | 50000 Cycles | 19 mm | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Panel Mount Front | IP65 - Dust Tight Water Resistant | Green LED | 1000000 Cycles | 55 °C | -20 C | Button Flush Round | 24 V | Silver | No Marking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.36 | |
| 10 | $ 19.40 | |||
| 40 | $ 19.19 | |||
Description
General part information
PV4F230 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
