CD54HC42F3A - SN54HC253J

CD54HC42F3A

Active
Texas Instruments

HIGH SPEED CMOS LOGIC BCD TO DECIMAL DECODER (1 OF 10)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCD54HC42, CD74HC42, CD74HCT42 datasheet (Rev. C)
CD54HC42F3A - SN54HC253J

CD54HC42F3A

Active
Texas Instruments

HIGH SPEED CMOS LOGIC BCD TO DECIMAL DECODER (1 OF 10)

Deep-Dive with AI

DocumentsDatasheetCD54HC42, CD74HC42, CD74HCT42 datasheet (Rev. C)
SpecificationsPricingSeriesDescriptionDocuments

Technical Specifications

Parameters and characteristics for this part

SpecificationCD54HC42F3A
Circuit [custom]4:10
Circuit [custom]1
Current - Output High, Low5.2 mA, 5.2 mA
Independent Circuits1
Mounting TypeThrough Hole
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C

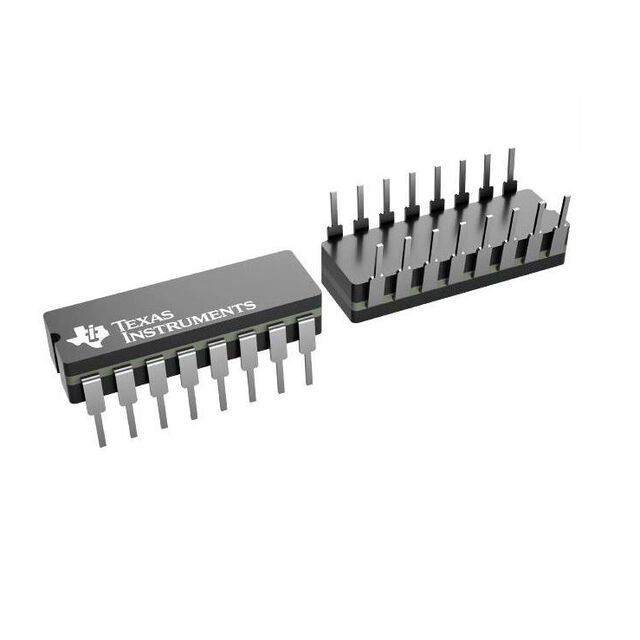

Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CDIP
TypeDecoder
Voltage - Supply [Max]6 V
Voltage - Supply [Min]2 V
Voltage Supply SourceSingle Supply

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CD54HC42 Series

High Speed CMOS Logic BCD to Decimal Decoder (1 of 10)

PartVoltage Supply SourceOperating Temperature [Min]Operating Temperature [Max]Supplier Device PackageTypeCurrent - Output High, LowCircuit [custom]Circuit [custom]Mounting TypePackage / CaseVoltage - Supply [Min]Voltage - Supply [Max]Independent Circuits
Texas Instruments
CD54HC42F3A
The ’HC42 and CD74HCT42 BCD-to-Decimal Decoders utilize silicon-gate CMOS technology to achieve operating speeds similar to LSTTL decoders with the low power consumption of standard CMOS integrated circuits. These devices have the capability of driving 10 LSTLL loads and are compatible with the standard LS logic family. One of ten outputs (low on select) is selected in accordance with the BCD input. Non-valid BCD inputs result in none of the outputs being selected (all outputs are high). The ’HC42 and CD74HCT42 BCD-to-Decimal Decoders utilize silicon-gate CMOS technology to achieve operating speeds similar to LSTTL decoders with the low power consumption of standard CMOS integrated circuits. These devices have the capability of driving 10 LSTLL loads and are compatible with the standard LS logic family. One of ten outputs (low on select) is selected in accordance with the BCD input. Non-valid BCD inputs result in none of the outputs being selected (all outputs are high).
Single Supply
-55 °C
125 °C
16-CDIP
Decoder
5.2 mA, 5.2 mA
4:10
1
Through Hole
16-CDIP (0.300", 7.62mm)
2 V
6 V
1

Description

General part information

CD54HC42 Series

The ’HC42 and CD74HCT42 BCD-to-Decimal Decoders utilize silicon-gate CMOS technology to achieve operating speeds similar to LSTTL decoders with the low power consumption of standard CMOS integrated circuits. These devices have the capability of driving 10 LSTLL loads and are compatible with the standard LS logic family. One of ten outputs (low on select) is selected in accordance with the BCD input. Non-valid BCD inputs result in none of the outputs being selected (all outputs are high).

The ’HC42 and CD74HCT42 BCD-to-Decimal Decoders utilize silicon-gate CMOS technology to achieve operating speeds similar to LSTTL decoders with the low power consumption of standard CMOS integrated circuits. These devices have the capability of driving 10 LSTLL loads and are compatible with the standard LS logic family. One of ten outputs (low on select) is selected in accordance with the BCD input. Non-valid BCD inputs result in none of the outputs being selected (all outputs are high).
