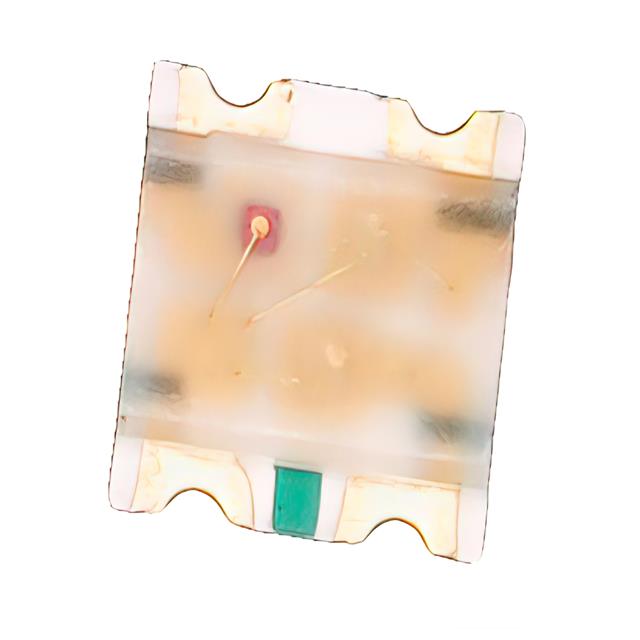

QBLP600-RGB5-3164

Active

QT Brightek (QTB)

LED RGB DIFFUSED 4SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RGB DIFFUSED 4SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QBLP600-RGB5-3164	QBLP600 Series

Color	Red, Green, Blue	Red, Yellow-Green, Green, Blue
Configuration	Common Anode	Independent, Common Anode
Current - Test	-	20 mA
Current - Test [custom]	5 mA	5 mA
Current - Test [custom]	5 mA	5 mA
Current - Test [custom]	5 mA	5 mA
Height (Max)	-	0.8 mm
Height (Max) [Max]	0.9 mm	0.9 mm
Lens Color	White	Colorless, White
Lens Size [x]	1.1 mm	1.1 mm
Lens Size [y]	1.5 mm	1.5 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Clear, Diffused
Millicandela Rating	-	32 - 80 mcd
Millicandela Rating [custom]	35 mcd	35 mcd
Millicandela Rating [custom]	34 mcd	34 mcd
Millicandela Rating [custom]	230 mcd	230 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	0606, 1616 Metric	0606, 1616 Metric
Package / Case	-	4-SMD, No Lead
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [y]	1.5 mm	1.5 mm
Supplier Device Package	4-SMD	0606, 4-SMD
Viewing Angle	140 °	140 °
Voltage - Forward (Vf) (Typ)	-	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	1.9 V	1.9 V
Voltage - Forward (Vf) (Typ) [custom]	2.8 V	2.8 V
Voltage - Forward (Vf) (Typ) [custom]	2.8 V	2.8 V
Wavelength - Dominant	-	570 - 640 nm
Wavelength - Dominant [custom]	470 nm	470 nm
Wavelength - Dominant [custom]	620 nm	620 nm
Wavelength - Dominant [custom]	528 nm	528 nm

LED RED/YLW-GRN CLEAR 0606 SMD

Part	Voltage - Forward (Vf) (Typ)	Lens Size [x]	Lens Size [y]	Wavelength - Dominant	Lens Color	Lens Style	Current - Test	Supplier Device Package	Height (Max) [Max] [z]	Lens Transparency	Configuration	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Color	Package / Case	Mounting Type	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle	Package / Case	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Height (Max) [Max]
QT Brightek (QTB) QBLP600-RAG	2.1 V, 2.1 V	1.1 mm	1.5 mm	570 nm, 640 nm	Colorless	Rectangle with Flat Top	20 mA, 20 mA	0606	0.8 mm	Clear	Independent	32 mcd, 80 mcd	1.5 mm	1.6 mm	Red, Yellow-Green	4-SMD, No Lead	Surface Mount
QT Brightek (QTB) QBLP600-RGB5-3164		1.1 mm	1.5 mm		White	Rectangle with Flat Top		4-SMD		Diffused	Common Anode		1.5 mm	1.6 mm	Blue, Green, Red		Surface Mount	1.9 V	2.8 V	2.8 V	35 mcd	34 mcd	230 mcd	140 °	0606, 1616 Metric	5 mA	5 mA	5 mA	470 nm	620 nm	528 nm	0.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 620nm Red, 528nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 2.8V Green, 2.8V Blue 0606 (1616 Metric)
