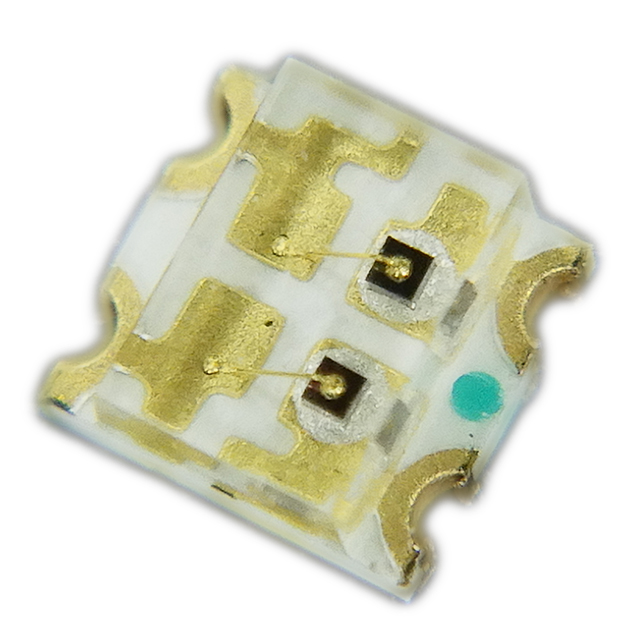

QBLP600-RAG

Active

QT Brightek (QTB)

LED RED/YLW-GRN CLEAR 0606 SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RED/YLW-GRN CLEAR 0606 SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED/YLW-GRN CLEAR 0606 SMD

Part	Voltage - Forward (Vf) (Typ)	Lens Size [x]	Lens Size [y]	Wavelength - Dominant	Lens Color	Lens Style	Current - Test	Supplier Device Package	Height (Max) [Max] [z]	Lens Transparency	Configuration	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Color	Package / Case	Mounting Type	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle	Package / Case	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Height (Max) [Max]
QT Brightek (QTB) QBLP600-RAG	2.1 V, 2.1 V	1.1 mm	1.5 mm	570 nm, 640 nm	Colorless	Rectangle with Flat Top	20 mA, 20 mA	0606	0.8 mm	Clear	Independent	32 mcd, 80 mcd	1.5 mm	1.6 mm	Red, Yellow-Green	4-SMD, No Lead	Surface Mount
QT Brightek (QTB) QBLP600-RGB5-3164		1.1 mm	1.5 mm		White	Rectangle with Flat Top		4-SMD		Diffused	Common Anode		1.5 mm	1.6 mm	Blue, Green, Red		Surface Mount	1.9 V	2.8 V	2.8 V	35 mcd	34 mcd	230 mcd	140 °	0606, 1616 Metric	5 mA	5 mA	5 mA	470 nm	620 nm	528 nm	0.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Yellow-Green 640nm Red, 570nm Yellow-Green LED Indication - Discrete 2.1V Red, 2.1V Yellow-Green 4-SMD, No Lead

Technical documentation and resources

No documents available
