C091 31H105 100 2
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 5P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C091 31H105 100 2
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 5P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C091 31H105 100 2 |
|---|---|
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 7 A |
| Features | Stereo, Strain Relief |
| Ingress Protection | IP69K, IP65, IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-5(S) |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.12 | |
| 10 | $ 18.80 | |||
| 25 | $ 17.62 | |||
| 50 | $ 16.78 | |||
| 100 | $ 15.98 | |||
| 300 | $ 14.79 | |||
| 500 | $ 14.27 | |||
Description
General part information
C091 31H105 Series

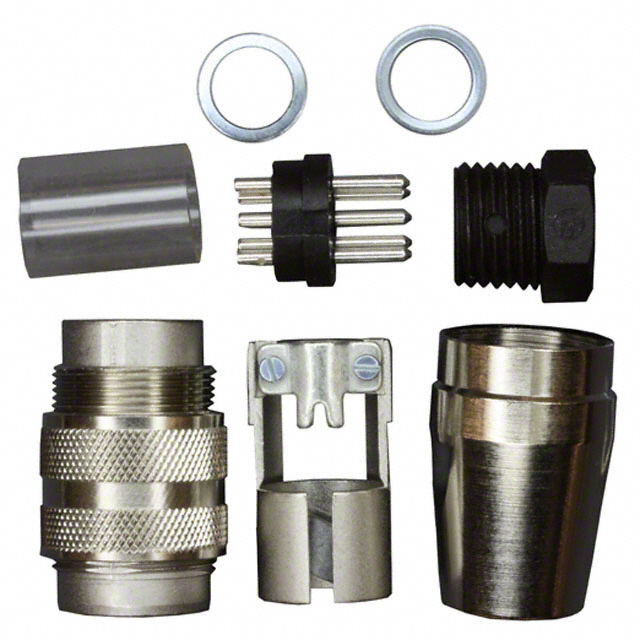

5 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
