A11ASP12VDC1.2D
ActiveCIT Relay and Switch

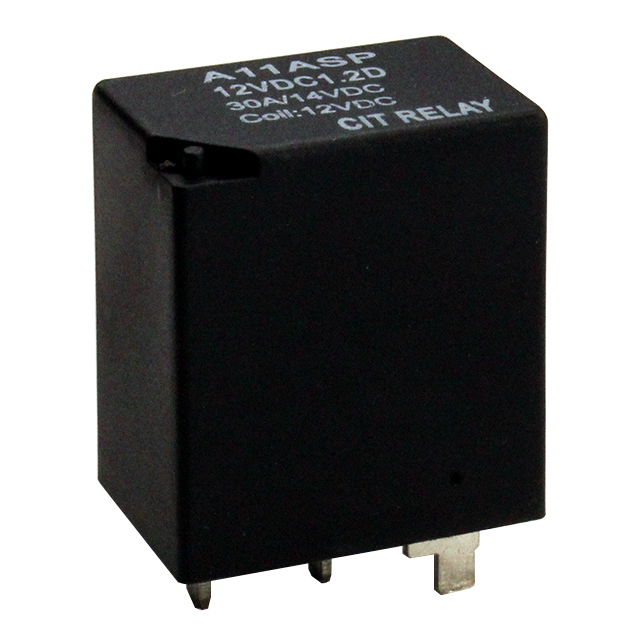

RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
A11ASP12VDC1.2D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A11ASP12VDC1.2D | A11ASP Series |
|---|---|---|
| Coil Current | 100 mA | 50 - 125 mA |
| Coil Power | 1.2 W | 1.2 - 1.5 W |
| Coil Resistance | 120 Ohms | 96 - 480 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 24 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A | 30 A |
| Features | Sealed - Fully, Diode | Sealed - Fully, Diode, Resistor |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 8.4 VDC | 8.4 - 18 VDC |
| Must Release Voltage | 1.2 VDC | 1.2 - 2.4 VDC |
| Operate Time | 10 ms | 10 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Release Time | 7 ms | 7 ms |
| Switching Voltage | 75 VDC | 75 VDC |
| Termination Style | PC Pin | PC Pin |
A11ASP Series
RELAY AUTOMOTIVE SPST 30A 24V
| Part | Termination Style | Must Release Voltage | Coil Power | Mounting Type | Coil Resistance | Coil Current | Contact Rating (Current) | Release Time | Features | Contact Form | Switching Voltage | Coil Voltage | Contact Material | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CIT Relay and Switch A11ASP24VDC1.5D | PC Pin | 2.4 VDC | 1.5 W | Through Hole | 384 Ohms | 62.5 mA | 30 A | 7 ms | Diode, Sealed - Fully | SPST-NO (1 Form A) | 75 VDC | 24 VDC | Silver Tin Oxide (AgSnO) | 18 VDC | 85 °C | -40 °C | 10 ms | Non Latching |
CIT Relay and Switch A11ASP12VDC1.2D | PC Pin | 1.2 VDC | 1.2 W | Through Hole | 120 Ohms | 100 mA | 30 A | 7 ms | Diode, Sealed - Fully | SPST-NO (1 Form A) | 75 VDC | 12 VDC | Silver Tin Oxide (AgSnO) | 8.4 VDC | 85 °C | -40 °C | 10 ms | Non Latching |
CIT Relay and Switch A11ASP24VDC1.5R | PC Pin | 2.4 VDC | 1.5 W | Through Hole | 384 Ohms | 62.5 mA | 30 A | 7 ms | Resistor, Sealed - Fully | SPST-NO (1 Form A) | 75 VDC | 24 VDC | Silver Tin Oxide (AgSnO) | 18 VDC | 85 °C | -40 °C | 10 ms | Non Latching |
CIT Relay and Switch A11ASP12VDC1.2 | PC Pin | 1.2 VDC | 1.2 W | Through Hole | 120 Ohms | 100 mA | 30 A | 7 ms | Sealed - Fully | SPST-NO (1 Form A) | 75 VDC | 12 VDC | Silver Tin Oxide (AgSnO) | 8.4 VDC | 85 °C | -40 °C | 10 ms | Non Latching |
CIT Relay and Switch A11ASP24VDC1.2D | PC Pin | 2.4 VDC | 1.2 W | Through Hole | 480 Ohms | 50 mA | 30 A | 7 ms | Diode, Sealed - Fully | SPST-NO (1 Form A) | 75 VDC | 24 VDC | Silver Tin Oxide (AgSnO) | 18 VDC | 85 °C | -40 °C | 10 ms | Non Latching |
CIT Relay and Switch A11ASP24VDC1.2 | PC Pin | 2.4 VDC | 1.2 W | Through Hole | 480 Ohms | 50 mA | 30 A | 7 ms | Sealed - Fully | SPST-NO (1 Form A) | 75 VDC | 24 VDC | Silver Tin Oxide (AgSnO) | 18 VDC | 85 °C | -40 °C | 10 ms | Non Latching |
CIT Relay and Switch A11ASP12VDC1.5D | PC Pin | 1.2 VDC | 1.5 W | Through Hole | 96 Ohms | 125 mA | 30 A | 7 ms | Diode, Sealed - Fully | SPST-NO (1 Form A) | 75 VDC | 12 VDC | Silver Tin Oxide (AgSnO) | 8.4 VDC | 85 °C | -40 °C | 10 ms | Non Latching |
CIT Relay and Switch A11ASP12VDC1.5 | PC Pin | 1.2 VDC | 1.5 W | Through Hole | 96 Ohms | 125 mA | 30 A | 7 ms | Sealed - Fully | SPST-NO (1 Form A) | 75 VDC | 12 VDC | Silver Tin Oxide (AgSnO) | 8.4 VDC | 85 °C | -40 °C | 10 ms | Non Latching |
CIT Relay and Switch A11ASP24VDC1.5 | PC Pin | 2.4 VDC | 1.5 W | Through Hole | 384 Ohms | 62.5 mA | 30 A | 7 ms | Sealed - Fully | SPST-NO (1 Form A) | 75 VDC | 24 VDC | Silver Tin Oxide (AgSnO) | 18 VDC | 85 °C | -40 °C | 10 ms | Non Latching |
