9GV1224G402

Active

Sanyo Denki America Inc.

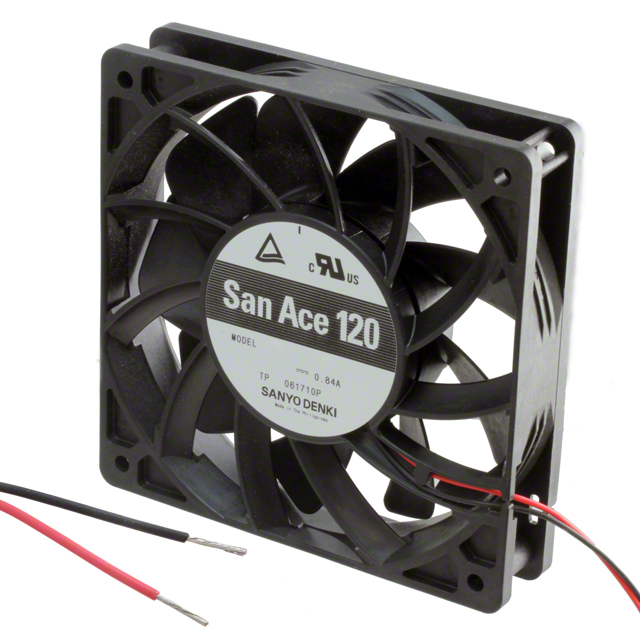

FAN AXIAL 119X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +1

9GV1224G402

Active

Sanyo Denki America Inc.

FAN AXIAL 119X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GV1224G402

Air Flow	171 CFM
Air Flow	4.79 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.84 A
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	58 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	20.16 W
RPM	5100 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.9 in H2O
Static Pressure	224.2 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Width [y]	25.4 mm

9GV1224 Series

Part	Voltage - Rated	Power (Watts)	Static Pressure	Static Pressure	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Bearing Type	RPM	Termination	Width [y]	Material - Frame	Air Flow	Air Flow	Fan Type	Features	Approval Agency	Weight [custom]	Weight [custom]	Air Flow
Sanyo Denki America Inc. 9GV1224P4G011	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	120 mm	120 mm	40000 Hrs	Ball	5100 RPM	4 Wire Leads	25.4 mm	Plastic	171 CFM	4.79 m³/min	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CSA TUV UL
Sanyo Denki America Inc. 9GV1224G402	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	119 mm	119 mm	40000 Hrs	Ball	5100 RPM	2 Wire Leads	25.4 mm	Plastic	171 CFM	4.79 m³/min	Tubeaxial		CSA TUV UL
Sanyo Denki America Inc. 9GV1224H1021	24 VDC	19.2 W	0.95 in H2O	237 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	800 mA	120 mm	120 mm	40000 Hrs	Ball	5200 RPM	2 Wire Leads	38 mm	Plastic	182.3 CFM	5.1 m³/min	Tubeaxial		CSA TUV UL	360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1224G4D01	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	120 mm	120 mm	40000 Hrs	Ball	5100 RPM	3 Wire Leads	25.4 mm	Plastic		171 CFM	Tubeaxial	Locked Rotor Sensor	CSA TUV UL			4.79 mł/min
Sanyo Denki America Inc. 9GV1224P1J011	24 VDC	36 W	1.45 in H2O	361.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	64 dB(A)	1.5 A	119 mm	119 mm	40000 Hrs	Ball	6400 RPM	4 Wire Leads	38 mm	Plastic	224 CFM	6.27 mł/min	Tubeaxial	PWM Control Speed Sensor (Tach)	CSA TUV UL	360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1224G401	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	119 mm	119 mm	40000 Hrs	Ball	5100 RPM	3 Wire Leads	25.4 mm	Plastic	171 CFM	4.79 m³/min	Tubeaxial	Speed Sensor (Tach)	CSA TUV UL
Sanyo Denki America Inc. 9GV1224H1011	24 VDC	19.2 W	0.95 in H2O	237 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	800 mA	120 mm	120 mm	40000 Hrs	Ball	5200 RPM	3 Wire Leads	38 mm	Plastic	182.3 CFM	5.1 m³/min	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1224G4021	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	120 mm	120 mm	40000 Hrs	Ball	5100 RPM	2 Wire Leads	25.4 mm	Plastic	171 CFM	4.79 m³/min	Tubeaxial		CSA TUV UL
Sanyo Denki America Inc. 9GV1224P1H01	24 VDC	19.2 W	0.95 in H2O	237 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	800 mA	119 mm	119 mm	40000 Hrs	Ball	5200 RPM	4 Wire Leads	38 mm	Plastic	182.3 CFM	5.1 m³/min	Tubeaxial	PWM Control Speed Sensor (Tach)	CSA TUV UL	360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1224H102	24 VDC	19.2 W	0.95 in H2O	237 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	800 mA	119 mm	119 mm	40000 Hrs	Ball	5200 RPM	2 Wire Leads	38 mm	Plastic	182.3 CFM	5.1 m³/min	Tubeaxial		CSA TUV UL	360.15 g	0.794 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	30	$ 42.39

Description

General part information

9GV1224 Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 171.0 CFM (4.79m³/min) 2 Wire Leads
