9GV1224G4021

Active

Sanyo Denki America Inc.

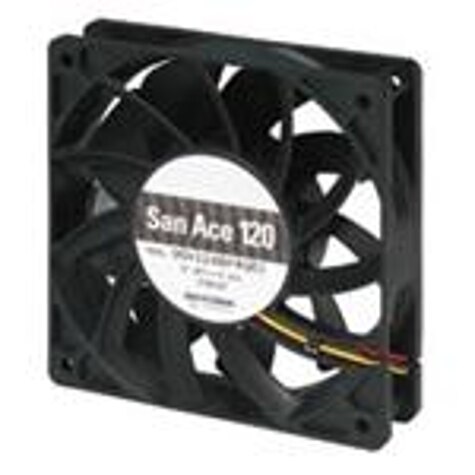

FAN AXIAL 120X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing

9GV1224G4021

Active

Sanyo Denki America Inc.

FAN AXIAL 120X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GV1224G4021

Air Flow	171 CFM
Air Flow	4.79 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.84 A
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	58 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	20.16 W
RPM	5100 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	0.9 in H2O
Static Pressure	224.2 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Width [y]	25.4 mm

9GV1224 Series

Part	Voltage - Rated	Power (Watts)	Static Pressure	Static Pressure	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Bearing Type	RPM	Termination	Width [y]	Material - Frame	Air Flow	Air Flow	Fan Type	Features	Approval Agency	Weight [custom]	Weight [custom]	Air Flow
Sanyo Denki America Inc. 9GV1224P4G011	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	120 mm	120 mm	40000 Hrs	Ball	5100 RPM	4 Wire Leads	25.4 mm	Plastic	171 CFM	4.79 m³/min	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CSA TUV UL
Sanyo Denki America Inc. 9GV1224G402	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	119 mm	119 mm	40000 Hrs	Ball	5100 RPM	2 Wire Leads	25.4 mm	Plastic	171 CFM	4.79 m³/min	Tubeaxial		CSA TUV UL
Sanyo Denki America Inc. 9GV1224H1021	24 VDC	19.2 W	0.95 in H2O	237 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	800 mA	120 mm	120 mm	40000 Hrs	Ball	5200 RPM	2 Wire Leads	38 mm	Plastic	182.3 CFM	5.1 m³/min	Tubeaxial		CSA TUV UL	360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1224G4D01	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	120 mm	120 mm	40000 Hrs	Ball	5100 RPM	3 Wire Leads	25.4 mm	Plastic		171 CFM	Tubeaxial	Locked Rotor Sensor	CSA TUV UL			4.79 mł/min
Sanyo Denki America Inc. 9GV1224P1J011	24 VDC	36 W	1.45 in H2O	361.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	64 dB(A)	1.5 A	119 mm	119 mm	40000 Hrs	Ball	6400 RPM	4 Wire Leads	38 mm	Plastic	224 CFM	6.27 mł/min	Tubeaxial	PWM Control Speed Sensor (Tach)	CSA TUV UL	360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1224G401	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	119 mm	119 mm	40000 Hrs	Ball	5100 RPM	3 Wire Leads	25.4 mm	Plastic	171 CFM	4.79 m³/min	Tubeaxial	Speed Sensor (Tach)	CSA TUV UL
Sanyo Denki America Inc. 9GV1224H1011	24 VDC	19.2 W	0.95 in H2O	237 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	800 mA	120 mm	120 mm	40000 Hrs	Ball	5200 RPM	3 Wire Leads	38 mm	Plastic	182.3 CFM	5.1 m³/min	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1224G4021	24 VDC	20.16 W	0.9 in H2O	224.2 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	0.84 A	120 mm	120 mm	40000 Hrs	Ball	5100 RPM	2 Wire Leads	25.4 mm	Plastic	171 CFM	4.79 m³/min	Tubeaxial		CSA TUV UL
Sanyo Denki America Inc. 9GV1224P1H01	24 VDC	19.2 W	0.95 in H2O	237 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	800 mA	119 mm	119 mm	40000 Hrs	Ball	5200 RPM	4 Wire Leads	38 mm	Plastic	182.3 CFM	5.1 m³/min	Tubeaxial	PWM Control Speed Sensor (Tach)	CSA TUV UL	360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1224H102	24 VDC	19.2 W	0.95 in H2O	237 Pa	Plastic	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	800 mA	119 mm	119 mm	40000 Hrs	Ball	5200 RPM	2 Wire Leads	38 mm	Plastic	182.3 CFM	5.1 m³/min	Tubeaxial		CSA TUV UL	360.15 g	0.794 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	30	$ 42.39

Description

General part information

9GV1224 Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 171.0 CFM (4.79m³/min) 2 Wire Leads
