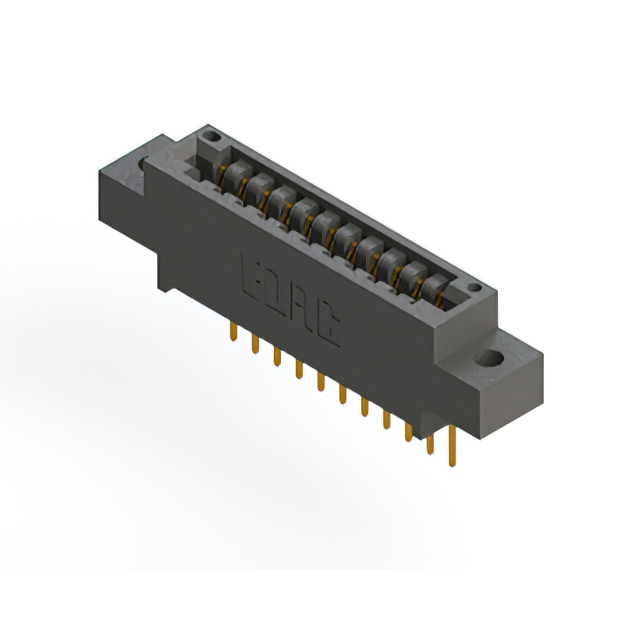

396-011-526-602
ActiveEDAC Inc.
CONN EDGE SGL FMALE 11POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-011-526-602
ActiveEDAC Inc.
CONN EDGE SGL FMALE 11POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-011-526-602 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
396-011 Series
| Part | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Contact Finish | Termination Rows | Contact Type | Pitch [x] | Pitch [x] | Contact Material | Number of Rows | Number of Positions | Read Out | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder Wire Wrap | Through Hole Right Angle | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | |||
EDAC Inc. | Solder | Through Hole | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | |||
EDAC Inc. | Solder | Through Hole | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | 4-40 Flush Mount Threaded Insert Top Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | Card Guides | ||||
EDAC Inc. | Solder | Through Hole | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | |||
EDAC Inc. | Wire Wrap | Through Hole | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | |||
EDAC Inc. | Solder Wire Wrap | Through Hole Right Angle | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Side Mount Opening Unthreaded | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | 3.25 mm | 0.128 in | |||
EDAC Inc. | Solder | Through Hole | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | M3 Threaded Insert Top Mount Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | |||||
EDAC Inc. | Solder | Through Hole | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | |||
EDAC Inc. | Wire Wrap | Through Hole | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | M3 Threaded Insert Top Mount Opening | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | |||||
EDAC Inc. | Solder | Through Hole | 10 Áin | 0.25 Ám | 11 | Non Specified - Single Edge | -40 °C | 105 ░C | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 1 | Cantilever | 0.125 in | 3.18 mm | Copper Alloy | 1 | 11 | Single | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.27 | |
Description
General part information
396-011 Series
11 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
