EDAC Inc.

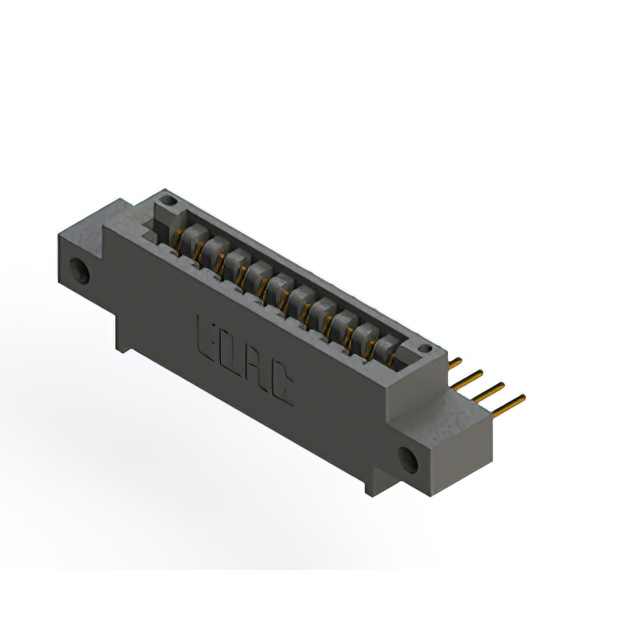

CARD EDGE CONNECTOR, 11 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.125 INCH PITCH, SOLDER TERMINAL, HOLE .125-.137, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

396-011-559-612

Active

EDAC Inc.

CARD EDGE CONNECTOR, 11 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.125 INCH PITCH, SOLDER TERMINAL, HOLE .125-.137, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	396-011-559-612

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	11
Number of Positions/Bay/Row [custom]	11
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1

396-011 Series

Part	Termination	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Contact Finish	Termination Rows	Contact Type	Pitch [x]	Pitch [x]	Contact Material	Number of Rows	Number of Positions	Read Out	Features	Flange Feature	Flange Feature
EDAC Inc. 396-011-558-604	Solder Wire Wrap	Through Hole Right Angle	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single
EDAC Inc. 396-011-520-102	Solder	Through Hole	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single
EDAC Inc. 396-011-522-158	Solder	Through Hole	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black		4-40 Flush Mount Threaded Insert Top Opening		Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single	Card Guides
EDAC Inc. 396-011-526-104	Solder	Through Hole	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single
EDAC Inc. 396-011-541-603	Wire Wrap	Through Hole	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single
EDAC Inc. 396-011-559-612	Solder Wire Wrap	Through Hole Right Angle	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black		Side Mount Opening Unthreaded		Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single		3.25 mm	0.128 in
EDAC Inc. 396-011-526-607	Solder	Through Hole	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black		M3 Threaded Insert Top Mount Opening		Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single
EDAC Inc. 396-011-520-104	Solder	Through Hole	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single
EDAC Inc. 396-011-540-607	Wire Wrap	Through Hole	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black		M3 Threaded Insert Top Mount Opening		Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single
EDAC Inc. 396-011-526-602	Solder	Through Hole	10 Áin	0.25 Ám	11	Non Specified - Single Edge	-40 °C	105 ░C	Black				Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Gold	1	Cantilever	0.125 in	3.18 mm	Copper Alloy	1	11	Single		3.25 mm	0.128 in
