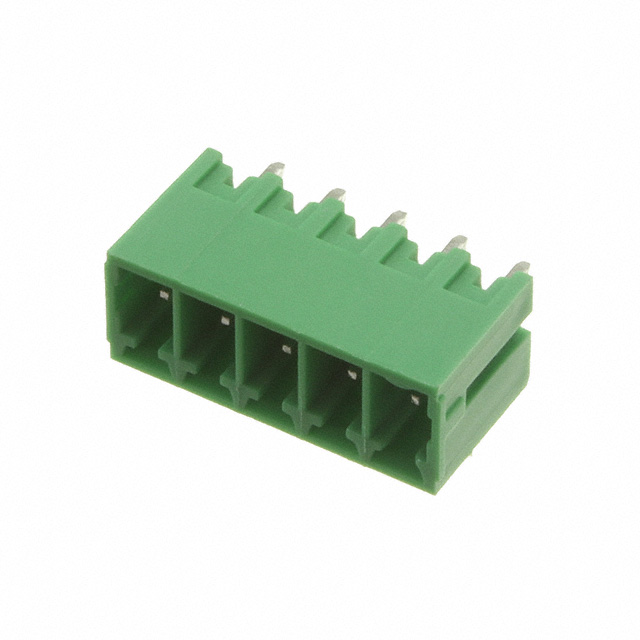

EBRA-05-A

Active

Adam Tech

TERM BLOCK HDR 5POS 3.50MM

Search across all available documentation for this part.

Active

Adam Tech

TERM BLOCK HDR 5POS 3.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	EBRA-05-A

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.4 mm
Contact Tail Length	0.134 in
Current - UL	8 A
Header Orientation	Vertical
Insulation Height	0.362 in
Insulation Height	9.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Mounting Type	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Type	Insulation Height	Insulation Height	Termination Style	Contact Mating Finish	Positions Per Level	Pitch [x]	Pitch [x]	Contact Material	Color	Current - UL	Voltage - UL	Number of Levels	Contact Tail Length	Contact Tail Length	Number of Positions
Adam Tech EBRA-05-A	Through Hole	Vertical	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (4 Side)	0.362 in	9.2 mm	Solder	Tin	5	3.5 mm	0.138 in	Brass	Green	8 A	300 V	1	3.4 mm	0.134 in
Adam Tech EBRA-04-B	Through Hole	Vertical	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (4 Side)	0.362 in	9.2 mm	Solder	Tin	4	3.81 mm	0.15 in	Brass	Green	8 A	300 V	1	3.5 mm	0.138 in	4
Adam Tech EBRA-02-A	Through Hole	Vertical	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (4 Side)	0.362 in	9.2 mm	Solder	Tin	2	3.5 mm	0.138 in	Brass	Green	8 A	300 V	1	3.4 mm	0.134 in	2
Adam Tech EBRA-04-A	Through Hole	Vertical	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (4 Side)	0.362 in	9.2 mm	Solder	Tin	4	3.5 mm	0.138 in	Brass	Green	8 A	300 V	1	3.4 mm	0.134 in	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
