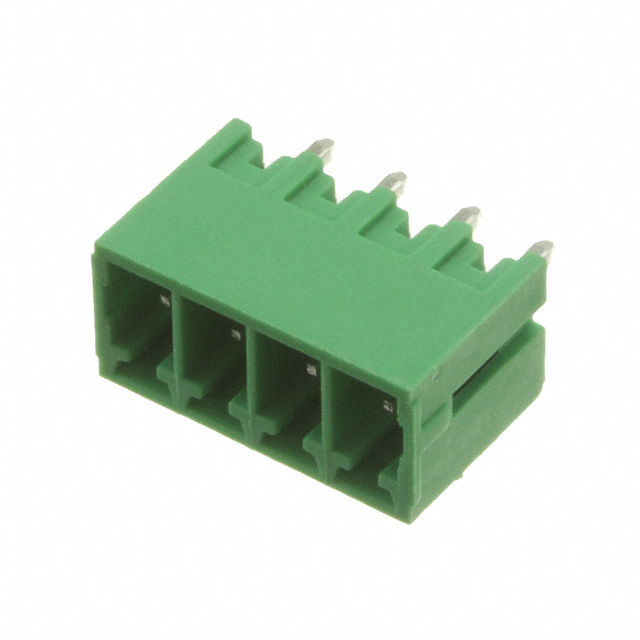

EBRA-04-A

Active

Adam Tech

EURO BLOCK 4P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 4P

Technical Specifications

Parameters and characteristics for this part

Specification	EBRA-04-A

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.4 mm
Contact Tail Length	0.134 in
Current - UL	8 A
Header Orientation	Vertical
Insulation Height	0.362 in
Insulation Height	9.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	4
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Mounting Type	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Type	Insulation Height	Insulation Height	Termination Style	Contact Mating Finish	Positions Per Level	Pitch [x]	Pitch [x]	Contact Material	Color	Current - UL	Voltage - UL	Number of Levels	Contact Tail Length	Contact Tail Length	Number of Positions
Adam Tech EBRA-05-A	Through Hole	Vertical	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (4 Side)	0.362 in	9.2 mm	Solder	Tin	5	3.5 mm	0.138 in	Brass	Green	8 A	300 V	1	3.4 mm	0.134 in
Adam Tech EBRA-04-B	Through Hole	Vertical	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (4 Side)	0.362 in	9.2 mm	Solder	Tin	4	3.81 mm	0.15 in	Brass	Green	8 A	300 V	1	3.5 mm	0.138 in	4
Adam Tech EBRA-02-A	Through Hole	Vertical	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (4 Side)	0.362 in	9.2 mm	Solder	Tin	2	3.5 mm	0.138 in	Brass	Green	8 A	300 V	1	3.4 mm	0.134 in	2
Adam Tech EBRA-04-A	Through Hole	Vertical	-40 °C	105 ░C	UL94 V-0	Header Male Pins Shrouded (4 Side)	0.362 in	9.2 mm	Solder	Tin	4	3.5 mm	0.138 in	Brass	Green	8 A	300 V	1	3.4 mm	0.134 in	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
