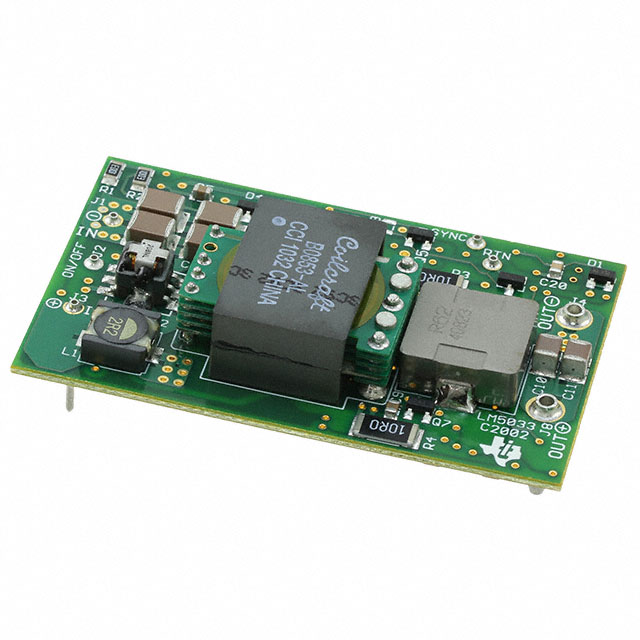

Specification	LM5033SD-EVAL

Board Type	Fully Populated
Contents	Board
Current - Output	20 A
Frequency - Switching	315 kHz
Main Purpose	DC/DC, Step Down
Non-Isolated Output Count	1 count
Output Type	Non-Isolated
Regulator Topology	Buck
Supplied Contents	Board(s)
Total Output Count	1
Utilized IC / Part	LM5033
Voltage - Input (Maximum)	60 V
Voltage - Input (Minimum)	40 V
Voltage - Output	9 V

LM5033 Series

Part	Output Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Synchronous Rectifier	Clock Sync	Output Phases	Mounting Type	Control Features	Package / Case	Output Type	Package Length	Package Name	Package Width	Number of Outputs	Function	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Frequency - Switching	Topology	Supplied Contents	Board Type	Total Output Count	Non-Isolated Output Count	Utilized IC / Part	Contents	Voltage - Output	Current - Output	Regulator Topology	Main Purpose	Voltage - Input (Minimum)	Voltage - Input (Maximum)
Texas Instruments LM5033SDX/NOPB	Positive	125 °C	-40 °C	Yes	Yes	1	Surface Mount	Frequency Control Soft Start	10-WDFN Exposed Pad	PWM Signal	4 mm	10-WSON	4 mm	2	Step-Down Step-Up	90 V	15 V	200 kHz 600 kHz	Full-Bridge Half-Bridge Push-Pull
Texas Instruments LM5033SD-EVAL										Non-Isolated								315 kHz		Board(s)	Fully Populated	1	1 count	LM5033	Board	9 V	20 A	Buck	DC/DC Step Down	40 V	60 V
Texas Instruments LM5033SD	Positive	125 °C	-40 °C	Yes	Yes	1	Surface Mount	Frequency Control Soft Start	10-WDFN Exposed Pad	PWM Signal	4 mm	10-WSON	4 mm	2	Step-Down Step-Up	90 V	15 V	200 kHz 600 kHz	Full-Bridge Half-Bridge Push-Pull
Texas Instruments LM5033SDX	Positive	125 °C	-40 °C	Yes	Yes	1	Surface Mount	Frequency Control Soft Start	10-WDFN Exposed Pad	PWM Signal	4 mm	10-WSON	4 mm	2	Step-Down Step-Up	90 V	15 V	200 kHz 600 kHz	Full-Bridge Half-Bridge Push-Pull
Texas Instruments LM5033MM/NOPB	Positive	125 °C	-40 °C	Yes	Yes	1	Surface Mount	Frequency Control Soft Start		PWM Signal	0.118 in	10-MSOP 10-TFSOP 10-VSSOP	3 mm	2	Step-Down Step-Up	90 V	15 V	200 kHz 600 kHz	Full-Bridge Half-Bridge Push-Pull
Texas Instruments LM5033MMX	Positive	125 °C	-40 °C	Yes	Yes	1	Surface Mount	Frequency Control Soft Start		PWM Signal	0.118 in	10-MSOP 10-TFSOP 10-VSSOP	3 mm	2	Step-Down Step-Up	90 V	15 V	200 kHz 600 kHz	Full-Bridge Half-Bridge Push-Pull
Texas Instruments LM5033MM	Positive	125 °C	-40 °C	Yes	Yes	1	Surface Mount	Frequency Control Soft Start		PWM Signal	0.118 in	10-MSOP 10-TFSOP 10-VSSOP	3 mm	2	Step-Down Step-Up	90 V	15 V	200 kHz 600 kHz	Full-Bridge Half-Bridge Push-Pull
Texas Instruments LM5033MMX/NOPB	Positive	125 °C	-40 °C	Yes	Yes	1	Surface Mount	Frequency Control Soft Start		PWM Signal	0.118 in	10-MSOP 10-TFSOP 10-VSSOP	3 mm	2	Step-Down Step-Up	90 V	15 V	200 kHz 600 kHz	Full-Bridge Half-Bridge Push-Pull
Texas Instruments LM5033SD	Positive	125 °C	-40 °C	Yes	Yes	1	Surface Mount	Frequency Control Soft Start	10-WDFN Exposed Pad	PWM Signal	4 mm	10-WSON	4 mm	2	Step-Down Step-Up	90 V	15 V	200 kHz 600 kHz	Full-Bridge Half-Bridge Push-Pull
Texas Instruments LM5033SD/NOPB	Positive	125 °C	-40 °C	Yes	Yes	1	Surface Mount	Frequency Control Soft Start	10-WDFN Exposed Pad	PWM Signal	4 mm	10-WSON	4 mm	2	Step-Down Step-Up	90 V	15 V	200 kHz 600 kHz	Full-Bridge Half-Bridge Push-Pull
