Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ500414QEVM-629 | BQ500414 Series |
|---|---|---|
| Applications | - | Wireless Power Transmitter |
| Contents | Board(s) | Board(s) |
| Embedded | False | False |
| Function | Wireless Power Supply/Charging | Wireless Power Supply/Charging |
| Grade | - | Automotive |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Package / Case | - | 48-VFQFN Exposed Pad |
| Primary Attributes | Transmitter | Transmitter |
| Qualification | - | AEC-Q100 |
| Secondary Attributes | Qi Standard Compatibility | Qi Standard Compatibility |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-VQFN (7x7) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ500414Q | BQ500414Q |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ500414 Series
Free Positioning, Qi-Compliant Wireless Power Transmitter Manager, Automotive
| Part | Applications | Qualification | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Grade | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Supplied Contents | Primary Attributes | Secondary Attributes | Contents | Embedded | Utilized IC / Part | Type | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ500414QRGZTQ1 | Wireless Power Transmitter | AEC-Q100 | 48-VQFN (7x7) | -40 °C | 85 °C | Automotive | Surface Mount | 3.6 V | 3 V | 48-VFQFN Exposed Pad | ||||||||

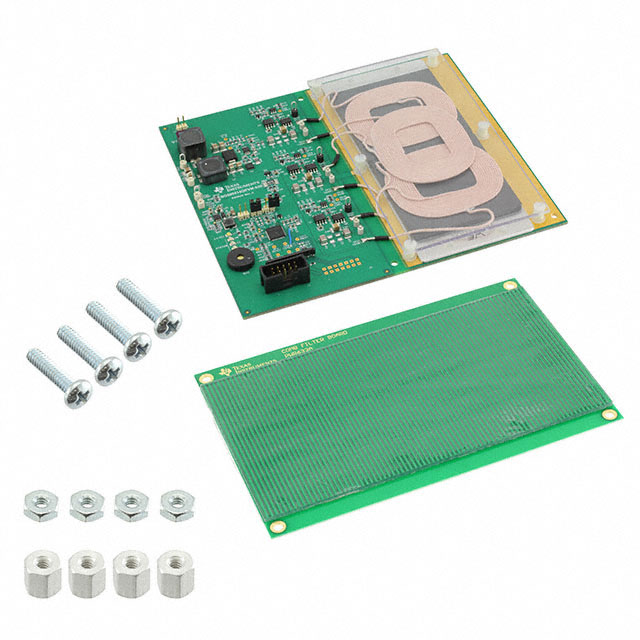

Texas Instruments BQ500414QEVM-629 | Board(s) | Transmitter | Qi Standard Compatibility | Board(s) | BQ500414Q | Power Management | Wireless Power Supply/Charging |
Description
General part information
BQ500414 Series
The bq500414Q is an AEC-Q100 qualified free-positioning digital wireless power controller designed for automotive applications. It integrates all functions required to control wireless power transfer to a WPC compliant receiver. It is WPC v1.1 ready and designed for 12-V systems; however, the bq500414Q is applicable to other supply voltages. The bq500414Q pings the surrounding environment for WPC compliant devices to be powered. Once a WPC compliant device is detected, the bq500414Q reads the packet feedback from the powered device and manages the power transfer. A charging area of 70-mm x 20-mm provides flexible receiver placement on a transmitter pad. The bq500414Q supports both Parasitic Metal Object Detection (PMOD) and Foreign Object Detection (FOD) by continuously monitoring the transmitted and received power of the system, protecting the device from over heating. Should any abnormal condition develop during power transfer, the bq500414Q handles it and provides fault indicator outputs. Comprehensive protection features provide a robust design to protect the system in all receiver placements.
The bq500414Q is available in an area saving 48-pin, 7-mm × 7-mm VQFN package and operates over a temperature range from –40°C to 85°C.
