5309 725/SET

Active

Altech Corporation

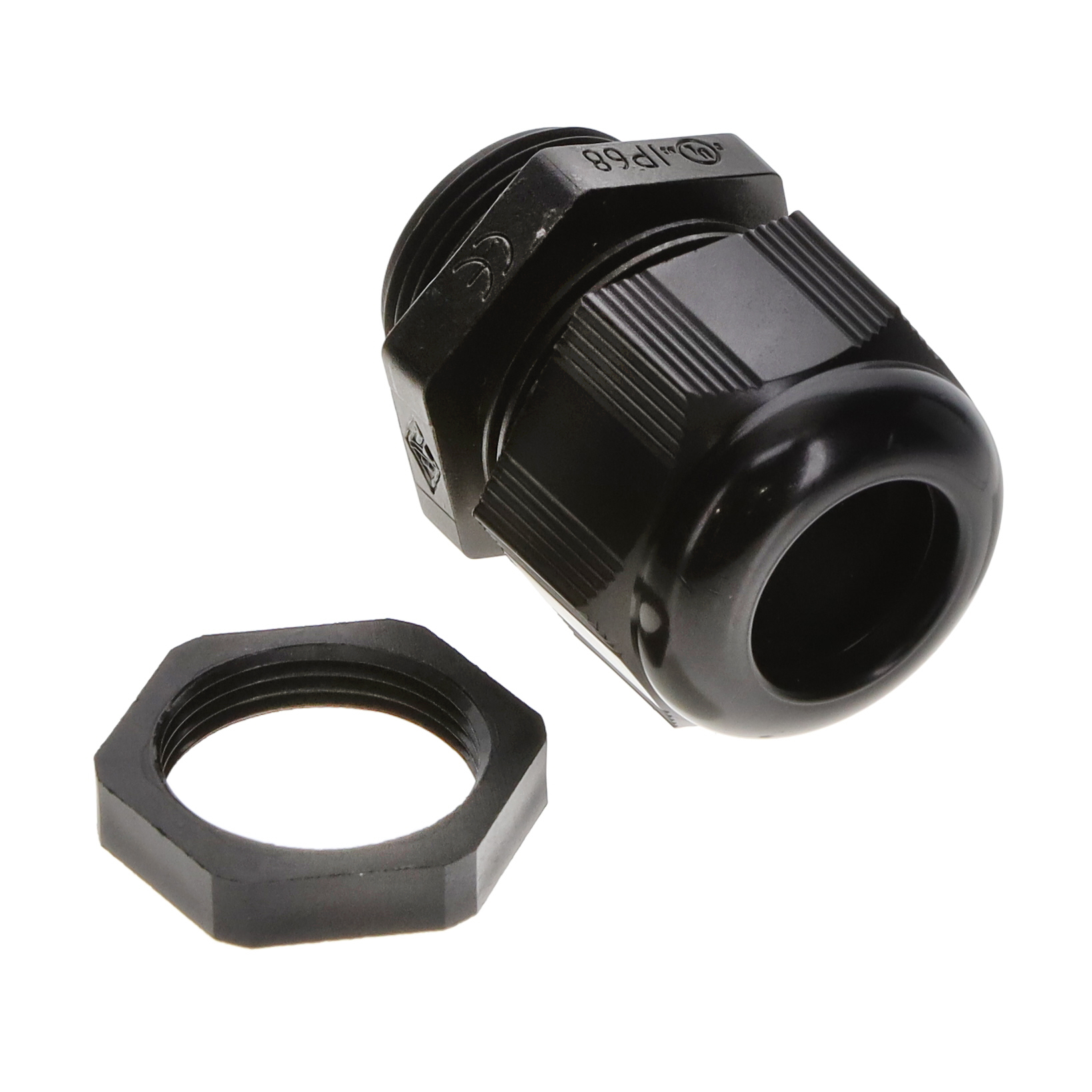

CABLE GLAND 7-16MM M25 POLYAMIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5309 725/SET

Active

Altech Corporation

CABLE GLAND 7-16MM M25 POLYAMIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.42
		10	$ 4.01
		25	$ 3.80
		50	$ 3.71
		100	$ 3.54
		250	$ 3.09
		500	$ 3.00
		1000	$ 2.56
		2500	$ 2.39
Newark	Each	1	$ 4.61
		100	$ 3.77
		250	$ 3.45
		500	$ 3.21
		1000	$ 3.01

Description

General part information

5309 Series

Cable Gland Polyamide (PA), Nylon M25x1.5 Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5309 725/SET	5309 Series

Color	Black	Black, Light Gray, Gray
Includes	Locknut	Locknut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature	-	-25 - 100 °C
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	9 mm
Outside Cable Diameter (Max)	-	31 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.63 "	0.197 - 1.535 in
Outside Cable Diameter (Max) [Max] [diameter]	16 mm	0.354 - 39 mm
Outside Cable Diameter (Min)	7 mm	7 - 13 mm
Outside Cable Diameter (Min)	-	1.5 - 11 mm
Outside Cable Diameter (Min)	-	0.197 - 1.024 in
Outside Cable Diameter (Min)	-	5 - 26 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.276 in	0.059 - 0.512 in
Panel Hole Size	0.984 in	0.472 - 2.48 in
Panel Hole Size	25 mm	1.457 - 63 mm
Panel Hole Size	-	37 mm
Panel Hole Size	-	59.3 mm
Panel Hole Size	-	2.335 in
Thread Length	10 mm	8 - 14 mm
Thread Length	0.394 in	0.315 - 0.551 in
Thread Size	M25x1.5	M16x1.5, M25x1.5, PG9, PG11, PG29, PG21, PG7, M20x1.5, PG13.5, M32x1.5, PG48, M40x1.5, M12x1.5, PG16, M50x1.5
Type	Cable Gland	Cable Gland
