5309 121/SET

Active

Altech Corporation

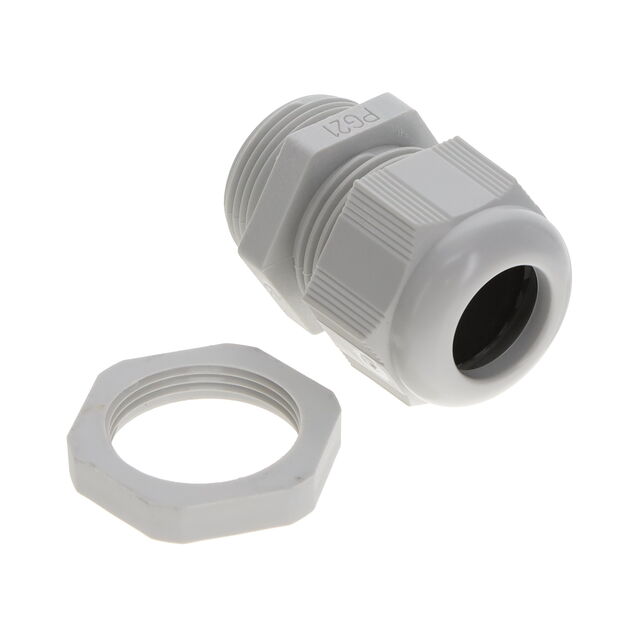

CABLE GLAND 7-16MM PG21 POLYAMID

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5309 121/SET

Active

Altech Corporation

CABLE GLAND 7-16MM PG21 POLYAMID

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.60
		10	$ 4.17
		25	$ 3.95
		50	$ 3.86
		100	$ 3.68
		250	$ 3.22
		500	$ 3.12
		1000	$ 2.67
		2500	$ 2.48
Newark	Each	1	$ 4.79
		100	$ 3.92
		250	$ 3.59
		500	$ 3.33
		1000	$ 3.13

Description

General part information

5309 Series

Cable Gland Polyamide (PA), Nylon PG21 Gray

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5309 121/SET	5309 Series

Color	Gray	Black, Light Gray, Gray
Includes	Locknut	Locknut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature	-	-25 - 100 °C
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	9 mm
Outside Cable Diameter (Max)	-	31 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.63 "	0.197 - 1.535 in
Outside Cable Diameter (Max) [Max] [diameter]	16 mm	0.354 - 39 mm
Outside Cable Diameter (Min)	7 mm	7 - 13 mm
Outside Cable Diameter (Min)	-	1.5 - 11 mm
Outside Cable Diameter (Min)	-	0.197 - 1.024 in
Outside Cable Diameter (Min)	-	5 - 26 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.276 in	0.059 - 0.512 in
Panel Hole Size	28.3 mm	1.457 - 63 mm
Panel Hole Size	1.114 in	0.472 - 2.48 in
Panel Hole Size	-	37 mm
Panel Hole Size	-	59.3 mm
Panel Hole Size	-	2.335 in
Thread Length	0.433 in	0.315 - 0.551 in
Thread Length	11 mm	8 - 14 mm
Thread Size	PG21	M16x1.5, M25x1.5, PG9, PG11, PG29, PG21, PG7, M20x1.5, PG13.5, M32x1.5, PG48, M40x1.5, M12x1.5, PG16, M50x1.5
Type	Cable Gland	Cable Gland

5309 Series

CABLE GLAND 1.5-6MM M16 POLYAMID

Part	Includes	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Panel Hole Size	Panel Hole Size	Operating Temperature [custom]	Ingress Protection	Color	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Outside Cable Diameter (Min)	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]
Altech Corporation 5309 715/SET	Locknut	Cable Gland	0.236 in	6 mm	M16x1.5	0.63 in	16 mm	-25 °C, 100 °C	IP68 - Dust Tight, Waterproof	Black	10 mm	0.394 in	0.059 in	1.5 mm
Altech Corporation 5309 725/SET	Locknut	Cable Gland	0.63 "	16 mm	M25x1.5	0.984 in	25 mm		IP68 - Dust Tight, Waterproof	Black	10 mm	0.394 in	0.276 in		Polyamide (PA), Nylon	7 mm	100 °C	-40 °C
Altech Corporation 5309 209/SET	Locknut	Cable Gland	0.236 in	6 mm	PG9	0.6 in	15.2 mm		IP68 - Dust Tight, Waterproof	Black	8 mm	0.315 in	0.059 in	1.5 mm			100 °C	-40 °C
Altech Corporation 5309 763		Cable Gland	1.535 in	39 mm		2.48 in	63 mm	-25 °C, 100 °C	IP68 - Dust Tight, Waterproof	Black	12 mm	0.472 in			Polyamide (PA), Nylon				1.024 in	26 mm
Altech Corporation 5309 109/SET	Locknut	Cable Gland	0.236 in	6 mm	PG9	0.6 in	15.2 mm		IP68 - Dust Tight, Waterproof	Light Gray	8 mm	0.315 in	0.059 in	1.5 mm			100 °C	-40 °C
Altech Corporation 5309 111/SET	Locknut	Cable Gland	0.276 in	7 mm	PG11	0.732 in	18.6 mm		IP68 - Dust Tight, Waterproof	Gray	8 mm	0.315 in	0.079 in	2 mm	Polyamide (PA), Nylon		100 °C	-40 °C
Altech Corporation 5309 229/SET	Locknut	Cable Gland	0.827 in	21 mm	PG29		1.457 in		IP68 - Dust Tight, Waterproof	Black	11 mm	0.433 in	0.433 in	11 mm			100 °C	-40 °C			37 mm
Altech Corporation 5309 121/SET	Locknut	Cable Gland	0.63 "	16 mm	PG21	1.114 in	28.3 mm		IP68 - Dust Tight, Waterproof	Gray	11 mm	0.433 in	0.276 in		Polyamide (PA), Nylon	7 mm	100 °C	-40 °C
Altech Corporation 5309 107		Cable Gland	0.197 in	5 mm	PG7	0.492 in	12.5 mm		IP68 - Dust Tight, Waterproof	Light Gray	8 mm	0.315 in	0.059 in	1.5 mm			100 °C	-40 °C
Altech Corporation 5309 619/SET	Locknut	Cable Gland		0.354 in	M20x1.5	0.787 in	20 mm	-25 °C, 100 °C	IP68 - Dust Tight, Waterproof	Light Gray	10 mm	0.394 in	0.118 in	3 mm								9 mm
