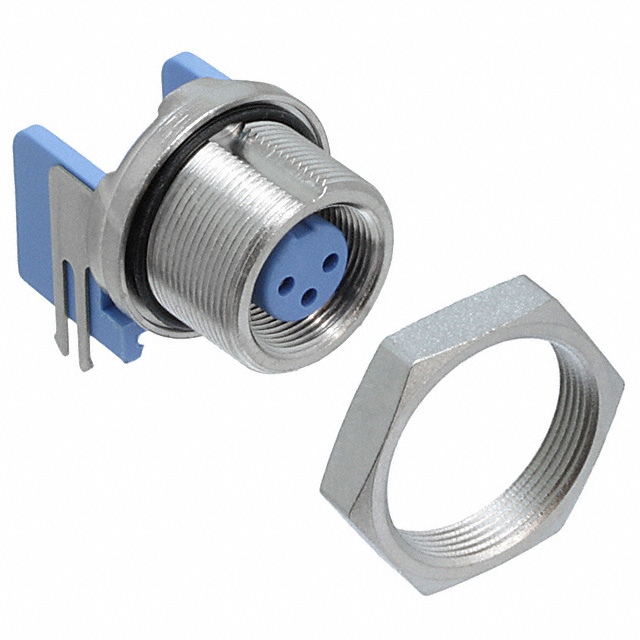

Specification	5-1437719-4

Connector Type	Receptacle, Female Sockets
Current Rating	3 A
Fastening Type	Threaded
Features	Board Lock
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Insert Material	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-2
Mounting Feature	Bulkhead
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Tribor
Shell Material	Brass
Shielding	Shielded
Termination	Solder
Voltage Rating	60 V

1437719 Series

Part	Ingress Protection IP Rating	Ingress Protection Description	Connector Type	Number of Positions	Mounting Feature	Shell Finish	Voltage Rating	Shell Material	Primary Material	Mounting Type	Material Flammability Rating	Features	Orientation	Shielding	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Current Rating	Insert Material
TE Connectivity AMP Connectors 5-1437719-1	IP65	Dust Tight Water Resistant	Male Pins Plug	5	Bulkhead	Tribor	60 V	Brass	Metal	Panel Mount Right Angle Through Hole	UL94 V-2	Board Lock	Keyed	Shielded	Threaded	-40 °C	85 °C	Solder	3 A	PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 3-1437719-6	IP65	Dust Tight Water Resistant	Female Sockets Receptacle	5		Tribor	60 V	Brass	Metal	Free Hanging (In-Line)	UL94 V-2	Strain Relief	Keyed	Shielded	Threaded	-40 °C	85 °C	Solder Cup	3 A	PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 9-1437719-3	IP65	Dust Tight Water Resistant	Male Pins Plug	8	Bulkhead Front Side Nut	Tribor	60 V	Brass	Metal	Panel Mount	UL94 V-2		Keyed	Shielded	Threaded	-40 °C	85 °C	Solder Cup	1 A	PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 6-1437719-4	IP65	Dust Tight Water Resistant	Male Pins Plug	4	Bulkhead	Tribor	60 V	Brass	Metal	Panel Mount Through Hole	UL94 V-2	Board Lock	Keyed	Shielded	Threaded	-40 °C	85 °C	Solder	3 A	PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 7-1437719-2	IP65	Dust Tight Water Resistant	Female Sockets Receptacle	5	Bulkhead	Tribor	60 V	Brass	Metal	Panel Mount Through Hole	UL94 V-2	Board Lock	Keyed	Shielded	Threaded	-40 °C	85 °C	Solder	3 A	PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 9-1437719-9	IP65	Dust Tight Water Resistant	Female Sockets Receptacle	4	Bulkhead Front Side Nut	Tribor	60 V	Brass	Metal	Panel Mount	UL94 V-2		Keyed	Shielded	Threaded	-40 °C	85 °C	Solder Cup	3 A	PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 8-1437719-7	IP65	Dust Tight Water Resistant	Male Pins Plug	5	Bulkhead Front Side Nut	Tribor	60 V	Brass	Metal	Panel Mount	UL94 V-2		Keyed	Shielded	Threaded	-40 °C	85 °C	Solder Cup	3 A	PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 1-1437719-5	IP65	Dust Tight Water Resistant	Male Pins Plug	3		Tribor	60 V	Brass	Metal	Free Hanging (In-Line)	UL94 V-2	Strain Relief	Keyed	Shielded	Threaded	-40 °C	85 °C	Solder Cup	3 A	PBT Polybutylene Terephthalate
TE Connectivity AMP Connectors 9-1437719-9	IP65	Dust Tight Water Resistant	Female Sockets Receptacle	4	Bulkhead Front Side Nut	Tribor	60 V	Brass	Metal	Panel Mount	UL94 V-2		Keyed	Shielded	Threaded	-40 °C	85 °C	Solder Cup	3 A
TE Connectivity AMP Connectors 8-1437719-1	IP65	Dust Tight Water Resistant	Male Pins Plug	3	Bulkhead Front Side Nut	Tribor	60 V	Brass	Metal	Panel Mount	UL94 V-2		Keyed	Shielded	Threaded	-40 °C	85 °C	Solder Cup	3 A	PBT Polybutylene Terephthalate
