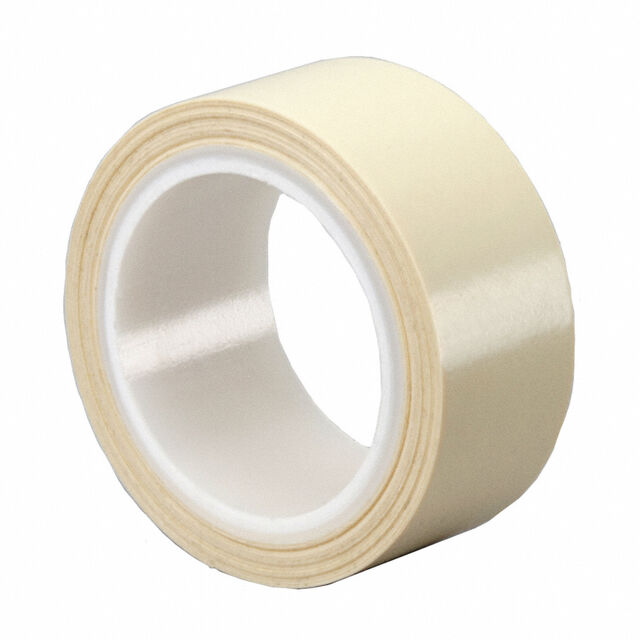

470-1-5

Active

3M (TC)

TAPE ELECTROPLATING TAN 1"X5YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ELECTROPLATING TAN 1"X5YDS

Technical Specifications

Parameters and characteristics for this part

Specification	470-1-5

Adhesive	Rubber
Backing, Carrier	Vinyl
Color	Tan
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Electroplating
Temperature Range	170 °F
Temperature Range	77 °C
Thickness	0.18 mm
Thickness	7.1 mils
Thickness	0.0071 in
Thickness - Adhesive [custom]	0.021 mm
Thickness - Adhesive [custom]	0.0008 "
Thickness - Adhesive [custom]	0.8 mils
Thickness - Backing, Carrier [custom]	6.3 mils
Thickness - Backing, Carrier [custom]	0.16 mm
Thickness - Backing, Carrier [custom]	0.0063 in
Usage	Sealing, Protection, Masking
Width [x]	25.4 mm
Width [x]	1 in

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Length	Length	Length	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Shelf Life Start	Shelf Life	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Usage	Tape Type	Thickness	Thickness	Thickness	Width [x]	Width [x]	Temperature Range	Temperature Range	Color	Adhesive	Width	Width	Width
3M (TC) 470-1-5	16 °C 60 °F	27 °C 80 °F	Vinyl	4.6 m	15 ft	5 yd	0.021 mm	0.0008 "	0.8 mils	Date of Manufacture	18 Months	6.3 mils	0.16 mm	0.0063 in	Masking Protection Sealing	Electroplating	0.18 mm	7.1 mils	0.0071 in	25.4 mm	1 in	170 °F	77 °C	Tan	Rubber
3M (TC) 470-0.75-5	16 °C 60 °F	27 °C 80 °F	Vinyl	4.6 m	15 ft	5 yd	0.021 mm	0.0008 "	0.8 mils	Date of Manufacture	18 Months	6.3 mils	0.16 mm	0.0063 in	Masking Protection Sealing	Electroplating	0.18 mm	7.1 mils	0.0071 in			170 °F	77 °C	Tan	Rubber	0.75 in	19.05 mm	0.75 in
3M (TC) 470-12-5	16 °C 60 °F	27 °C 80 °F	Vinyl	4.6 m	15 ft	5 yd	0.021 mm	0.0008 "	0.8 mils	Date of Manufacture	18 Months	6.3 mils	0.16 mm	0.0063 in	Masking Protection Sealing	Electroplating	0.18 mm	7.1 mils	0.0071 in	304.8 mm	12 in	170 °F	77 °C	Tan	Rubber

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Electroplating Tape Rubber Adhesive Tan 1.00" (25.40mm) X 15' (4.6m) 5 yds
