NHD-0116GZ-FSW-GBW

Active

Newhaven Display Intl

LCD MOD 16DIG 16X1 TRANSFLCT WHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Solvent Precautions +1

NHD-0116GZ-FSW-GBW

Active

Newhaven Display Intl

LCD MOD 16DIG 16X1 TRANSFLCT WHT

Deep-Dive with AI

DocumentsDatasheet LCD Solvent Precautions +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 19.71

Description

General part information

NHD-0116 Series

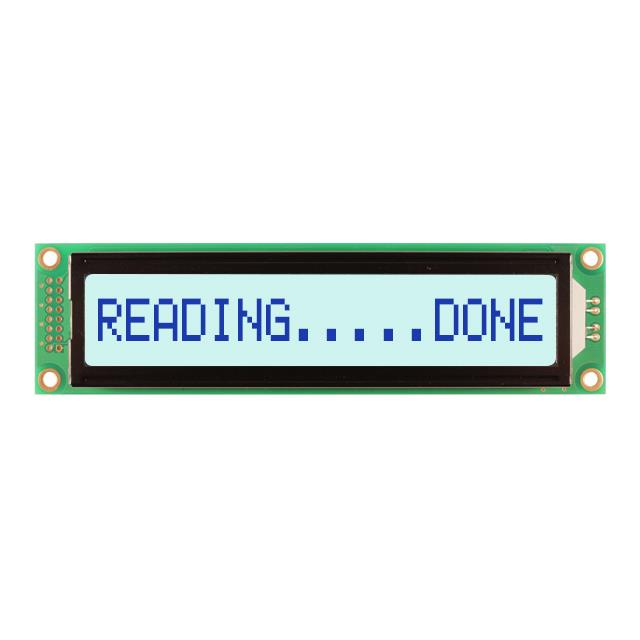

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 151.00mm x 40.00mm x 13.00mm

Documents

Technical documentation and resources

Datasheet

LCD Solvent Precautions

LCD Safe Handling Procedure

Related Document

Specification	NHD-0116GZ-FSW-GBW	NHD-0116 Series

Background Color	Gray	Gray, Green, Amber, Blue, Red, White, Orange
Backlight	LED - White	LED - White, LED - Amber, Without Backlight, LED - Blue, LED - Green, LED - Red, LED - Orange
Character Format	-	5 x 7 Dots w/Cursor
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size [y]	6 mm	3.07 - 6 mm
Character Size [z]	14.54 mm	6.56 - 14.54 mm
Controller Type	SPLC780D, ST7066U	SPLC780D, ST7066U
Display Format [x]	16	16
Display Format [y]	1	1
Display Mode	Transflective	Transflective, Reflective, Transmissive
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic, FSTN - Film Super-Twisted Nematic
Dot Size	-	0.75 - 1.1 mm
Dot Size	-	0.55 - 0.92 mm
Dot Size [custom]	1.15 mm	1.15 mm
Dot Size [custom]	1.77 mm	1.77 mm
Interface	Parallel	Parallel, Parallel, 8-Bit
Number of Characters	16	16
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline L x W x H [x]	151 mm	80 - 151 mm
Outline L x W x H [y]	40 mm	33 - 40 mm
Outline L x W x H [z]	13 mm	10 - 14 mm
Text Color	Blue	Blue, Gray, Black, White
Viewing Area [x]	120 mm	64 - 120 mm
Viewing Area [y]	23 mm	13 - 23 mm
Voltage - Supply	-	3.3 V
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.7 V	4.7 V

Part

Number of Characters

Dot Size [custom]

Character Size [z]

Character Size [y]

Voltage - Supply [Max]

Voltage - Supply [Min]

Display Type

Display Mode

Character Format [y]

Character Format [x]

Backlight

Outline L x W x H [y]

Outline L x W x H [x]

Outline L x W x H [z]

Controller Type

Display Format [x]

Display Format [y]

Operating Temperature [Min]

Operating Temperature [Max]

Text Color

Interface

Viewing Area [y]

Viewing Area [x]

Background Color

Character Format

Dot Size [y]

Dot Size [x]

Voltage - Supply

Newhaven Display Intl

NHD-0116GZ-FSW-GBW

1.15 mm

1.77 mm

14.54 mm

6 mm

5.5 V

4.7 V

STN - Super-Twisted Nematic

Transflective

8 Dots

5 Dots

LED - White

40 mm

151 mm

13 mm

SPLC780D, ST7066U

-20 C

70 °C

Blue

Parallel

23 mm

120 mm

Gray

Newhaven Display Intl

NHD-0116DZ-FL-YBW

9.66 mm

4.84 mm

5.5 V

4.7 V

STN - Super-Twisted Nematic

Transflective

33 mm

122 mm

14 mm

SPLC780D, ST7066U

-20 C

70 °C

Gray

Parallel

13 mm

99 mm

Green

5 x 7 Dots w/Cursor

1.1 mm

0.92 mm

Newhaven Display Intl

NHD-0116GZ-FSA-FBW

1.15 mm

1.77 mm

14.54 mm

6 mm

5.5 V

4.7 V

FSTN - Film Super-Twisted Nematic

Transflective

8 Dots

5 Dots

LED - Amber

40 mm

151 mm

13 mm

SPLC780D, ST7066U

-20 C

70 °C

Black

Parallel

23 mm

120 mm

Amber

Newhaven Display Intl

NHD-0116AZ-FL-YBW

6.56 mm

3.07 mm

5.5 V

4.7 V

STN - Super-Twisted Nematic

Transflective

8 Dots

5 Dots

36 mm

80 mm

13.5 mm

SPLC780D, ST7066U

-20 C

70 °C

Blue

Parallel

13.8 mm

64 mm

Green

0.75 mm

0.55 mm

Newhaven Display Intl

NHD-0116AZ-RN-GBW

6.56 mm

3.07 mm

5.5 V

4.7 V

STN - Super-Twisted Nematic

Reflective

8 Dots

5 Dots

Without Backlight

36 mm

80 mm

10 mm

SPLC780D, ST7066U

-20 C

70 °C

Blue

Parallel

13.8 mm

64 mm

Gray

0.75 mm

0.55 mm

Newhaven Display Intl

NHD-0116DZ-NSW-BBW

9.66 mm

4.84 mm

5.5 V

4.7 V

STN - Super-Twisted Nematic

Transmissive

LED - White

33 mm

122 mm

14 mm

SPLC780D, ST7066U

-20 C

70 °C

White

Parallel

13 mm

99 mm

Blue

5 x 7 Dots w/Cursor

1.1 mm

0.92 mm

Newhaven Display Intl

NHD-0116GZ-FSB-FBW

1.15 mm

1.77 mm

14.54 mm

6 mm

5.5 V

4.7 V

FSTN - Film Super-Twisted Nematic

Transflective

8 Dots

5 Dots

LED - Blue

40 mm

151 mm

13 mm

SPLC780D, ST7066U

-20 C

70 °C

Black

Parallel

23 mm

120 mm

Blue

Newhaven Display Intl

NHD-0116GZ-FL-YBW

1.15 mm

1.77 mm

14.54 mm

6 mm

5.5 V

4.7 V

STN - Super-Twisted Nematic

Transflective

8 Dots

5 Dots

40 mm

151 mm

13 mm

SPLC780D, ST7066U

-20 C

70 °C

Blue

Parallel

23 mm

120 mm

Green

Newhaven Display Intl

NHD-0116AZ-FL-GBW

6.56 mm

3.07 mm

5.5 V

4.7 V

STN - Super-Twisted Nematic

Transflective

8 Dots

5 Dots

36 mm

80 mm

13 mm

SPLC780D, ST7066U

-20 C

70 °C

Blue

Parallel, 8-Bit

13.8 mm

64 mm

Green

0.75 mm

0.55 mm

Newhaven Display Intl

NHD-0116DZ-FL-YBW-33V

9.66 mm

4.84 mm

STN - Super-Twisted Nematic

Transflective

33 mm

122 mm

14 mm

SPLC780D, ST7066U

-20 C

70 °C

Blue

Parallel

13 mm

99 mm

Green

5 x 7 Dots w/Cursor

1.1 mm

0.92 mm

3.3 V

Part	Number of Characters	Dot Size [custom]	Dot Size [custom]	Character Size [z]	Character Size [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Type	Display Mode	Character Format [y]	Character Format [x]	Backlight	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Controller Type	Display Format [x]	Display Format [y]	Operating Temperature [Min]	Operating Temperature [Max]	Text Color	Interface	Viewing Area [y]	Viewing Area [x]	Background Color	Character Format	Dot Size [y]	Dot Size [x]	Voltage - Supply
Newhaven Display Intl NHD-0116GZ-FSW-GBW	16	1.15 mm	1.77 mm	14.54 mm	6 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	Transflective	8 Dots	5 Dots	LED - White	40 mm	151 mm	13 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	Blue	Parallel	23 mm	120 mm	Gray
Newhaven Display Intl NHD-0116DZ-FL-YBW	16			9.66 mm	4.84 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	Transflective				33 mm	122 mm	14 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	Gray	Parallel	13 mm	99 mm	Green	5 x 7 Dots w/Cursor	1.1 mm	0.92 mm
Newhaven Display Intl NHD-0116GZ-FSA-FBW	16	1.15 mm	1.77 mm	14.54 mm	6 mm	5.5 V	4.7 V	FSTN - Film Super-Twisted Nematic	Transflective	8 Dots	5 Dots	LED - Amber	40 mm	151 mm	13 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	Black	Parallel	23 mm	120 mm	Amber
Newhaven Display Intl NHD-0116AZ-FL-YBW	16			6.56 mm	3.07 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	Transflective	8 Dots	5 Dots		36 mm	80 mm	13.5 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	Blue	Parallel	13.8 mm	64 mm	Green		0.75 mm	0.55 mm
Newhaven Display Intl NHD-0116AZ-RN-GBW	16			6.56 mm	3.07 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	Reflective	8 Dots	5 Dots	Without Backlight	36 mm	80 mm	10 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	Blue	Parallel	13.8 mm	64 mm	Gray		0.75 mm	0.55 mm
Newhaven Display Intl NHD-0116DZ-NSW-BBW	16			9.66 mm	4.84 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	Transmissive			LED - White	33 mm	122 mm	14 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	White	Parallel	13 mm	99 mm	Blue	5 x 7 Dots w/Cursor	1.1 mm	0.92 mm
Newhaven Display Intl NHD-0116GZ-FSB-FBW	16	1.15 mm	1.77 mm	14.54 mm	6 mm	5.5 V	4.7 V	FSTN - Film Super-Twisted Nematic	Transflective	8 Dots	5 Dots	LED - Blue	40 mm	151 mm	13 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	Black	Parallel	23 mm	120 mm	Blue
Newhaven Display Intl NHD-0116GZ-FL-YBW	16	1.15 mm	1.77 mm	14.54 mm	6 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	Transflective	8 Dots	5 Dots		40 mm	151 mm	13 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	Blue	Parallel	23 mm	120 mm	Green
Newhaven Display Intl NHD-0116AZ-FL-GBW	16			6.56 mm	3.07 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	Transflective	8 Dots	5 Dots		36 mm	80 mm	13 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	Blue	Parallel, 8-Bit	13.8 mm	64 mm	Green		0.75 mm	0.55 mm
Newhaven Display Intl NHD-0116DZ-FL-YBW-33V	16			9.66 mm	4.84 mm			STN - Super-Twisted Nematic	Transflective				33 mm	122 mm	14 mm	SPLC780D, ST7066U	16	1	-20 C	70 °C	Blue	Parallel	13 mm	99 mm	Green	5 x 7 Dots w/Cursor	1.1 mm	0.92 mm	3.3 V
