NHD-0116AZ-RN-GBW
ActiveNewhaven Display Intl
LCD MOD 16 DIG 16 X 1 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NHD-0116AZ-RN-GBW
ActiveNewhaven Display Intl
LCD MOD 16 DIG 16 X 1 REFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-0116AZ-RN-GBW |
|---|---|
| Background Color | Gray |
| Backlight | Without Backlight |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.07 mm |
| Character Size [z] | 6.56 mm |
| Controller Type | SPLC780D, ST7066U |
| Display Format [x] | 16 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.75 mm |
| Interface | Parallel |
| Number of Characters | 16 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 10 mm |
| Text Color | Blue |
| Viewing Area [x] | 64 mm |
| Viewing Area [y] | 13.8 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.61 | |
| 5 | $ 10.91 | |||
| 10 | $ 10.22 | |||
| 50 | $ 9.64 | |||
| 100 | $ 9.17 | |||
| 250 | $ 8.71 | |||
| 500 | $ 8.36 | |||
Description
General part information
NHD-0116AZ-RN-GBW

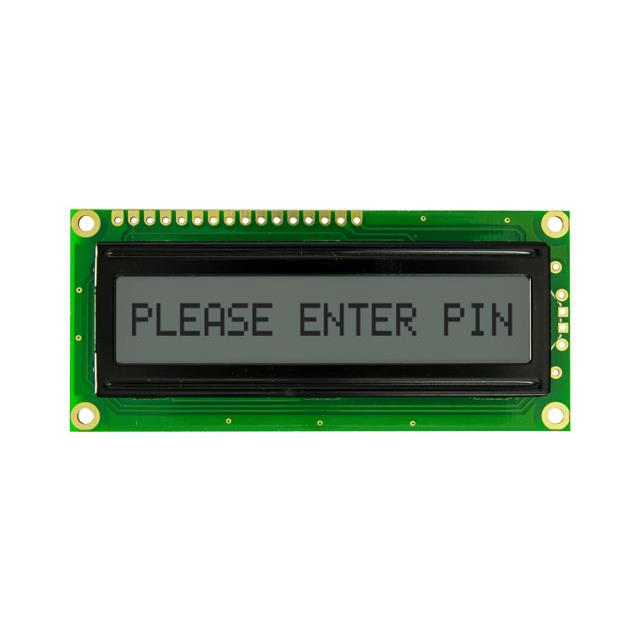

Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 80.00mm x 36.00mm x 10.00mm
