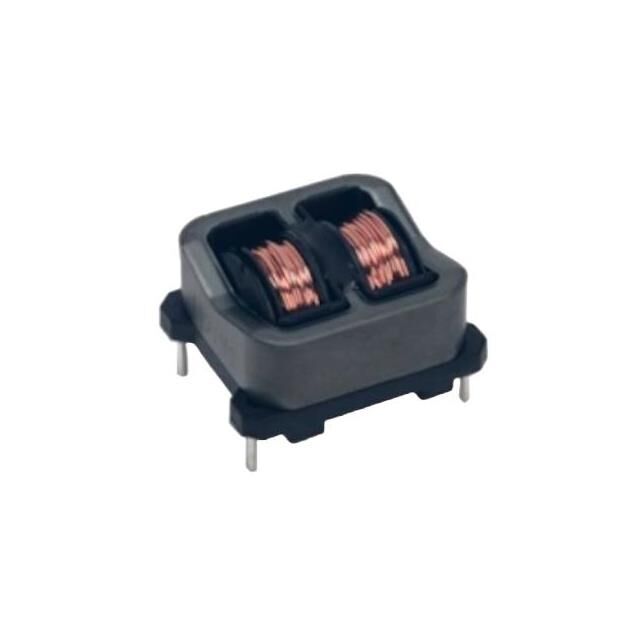

SSHB21H-10184

Active

KEMET

CMC 18.4MH 1A 2LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet KEM_LF0038_SSHB21H.pdf

SSHB21H-10184

Active

KEMET

CMC 18.4MH 1A 2LN TH

Deep-Dive with AI

DocumentsDatasheet KEM_LF0038_SSHB21H.pdf

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSHB21H-10184

Current Rating (Max) [Max]	1 A
DC Resistance (DCR) (Max) [Max]	640 mOhm
Height (Max)	15.5 mm
Height (Max) [Max]	0.61 in
Inductance @ Frequency	18.4 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	26 mm
Size / Dimension [x]	1.024 in
Size / Dimension [y]	0.906 in
Size / Dimension [y]	23 mm
Voltage Rating - AC	250 V

SSHB21H Series

Part	DC Resistance (DCR) (Max) [Max]	Mounting Type	Package / Case	Package / Case	Current Rating (Max) [Max]	Height (Max)	Height (Max) [Max]	Number of Lines	Operating Temperature [Min]	Operating Temperature [Max]	Inductance @ Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC
KEMET SSHB21H-25027	100 mOhm	Through Hole	4 Lead	Vertical	2.5 A	15.5 mm	0.61 in	2	-25 °C	130 °C	2.7 mH	0.906 in	26 mm	23 mm	1.024 in	250 V
KEMET SSHB21HS-R18095	200 mOhm	Through Hole	4 Lead	Vertical	1.8 A	15.5 mm	0.61 in	2	-25 °C	120 °C	9.5 mH	0.906 in	26 mm	23 mm	1.024 in	250 V
KEMET SSHB21H-10184	640 mOhm	Through Hole	4 Lead	Vertical	1 A	15.5 mm	0.61 in	2	-25 °C	130 °C	18.4 mH	0.906 in	26 mm	23 mm	1.024 in	250 V
KEMET SSHB21H-R051100	2.1 Ohm	Through Hole	4 Lead	Vertical	500 mA	15.5 mm	0.61 in	2	-25 °C	120 °C	10 kHz 110 mH	0.906 in	26 mm	23 mm	1.024 in	250 V
KEMET SSHB21HS-R30028	60 mOhm	Through Hole	4 Lead	Vertical	3 A	15.5 mm	0.61 in	2	-25 °C	120 °C	2.8 mH	0.906 in	26 mm	23 mm	1.024 in	250 V
KEMET SSHB21H-20046	170 mOhm	Through Hole	4 Lead	Vertical	2 A	15.5 mm	0.61 in	2	-25 °C	130 °C	4.6 mH	0.906 in	26 mm	23 mm	1.024 in	250 V
KEMET SSHB21HS-18046	200 mOhm	Through Hole	4 Lead	Vertical	1.8 A	15.5 mm	0.61 in	2	-25 °C	130 °C	4.6 mH	0.906 in	26 mm	23 mm	1.024 in	250 V
KEMET SSHB21H-06400	1.5 Ohm	Through Hole	4 Lead	Vertical	600 mA	15.5 mm	0.61 in	2	-25 °C	130 °C	40 mH	0.906 in	26 mm	23 mm	1.024 in	250 V
KEMET SSHB21HS-25021	90 mOhm	Through Hole	4 Lead	Vertical	2.5 A	15.5 mm	0.61 in	2	-25 °C	130 °C	2.1 mH 10 kHz	0.906 in	26 mm	23 mm	1.024 in	250 V
KEMET SSHB21H-18054	220 mOhm	Through Hole	4 Lead	Vertical	1.8 A	15.5 mm	0.61 in	2	-25 °C	130 °C	5.4 mH	0.906 in	26 mm	23 mm	1.024 in	250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.42
		10	$ 2.19
		25	$ 2.11
		60	$ 2.03
		120	$ 1.96
		300	$ 1.88
		540	$ 1.83
		1020	$ 1.78
		5040	$ 1.66

Description

General part information

SSHB21H Series

18.4 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 640mOhm

Documents

Technical documentation and resources

Datasheet

KEM_LF0038_SSHB21H.pdf

Datasheet
