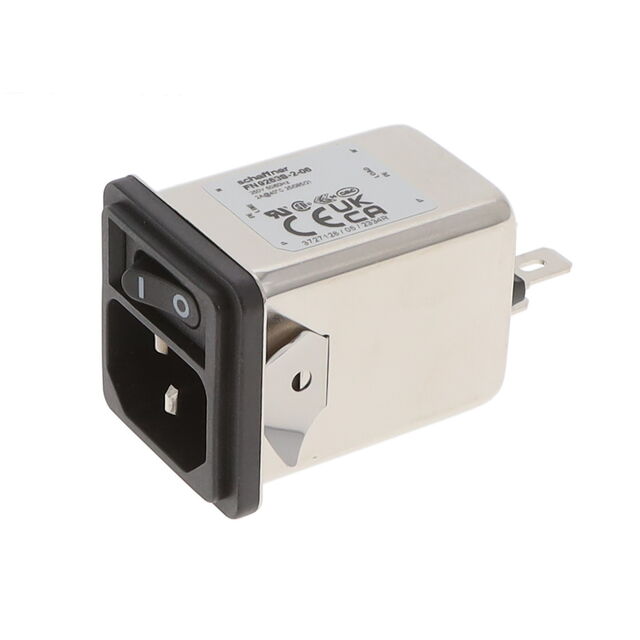

FN9263S-2-06
NRNDTE Connectivity Raychem Cable Protection
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN9263S-2-06
NRNDTE Connectivity Raychem Cable Protection
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9263S-2-06 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, CQC, CSA, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Filter | 2 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29 mm |
| Panel Cutout Dimensions [y] | 32.6 mm |
| Panel Thickness [Max] | 1.5 mm |
| Panel Thickness [Max] | 0.059 in |
| Panel Thickness [Min] | 0.6 mm |
| Panel Thickness [Min] | 0.024 in |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
FN9263 Series
| Part | Approval Agency | Ingress Protection | Termination | Termination | Termination | Features | Filter Type | Material Flammability Rating | Current Rating - Filter | Connector Type | Switch Features | Mounting Type | Accomodates a Fuse | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Connector Style | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Panel Thickness [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Front or Rear Side Mount | Filtered (EMI RFI) - Commercial | UL94 V-2 | 3 A | Receptacle Male Blades - Module | Switch On-Off | Flange Panel Mount | 33.2 mm | 29.2 mm | IEC 320-C14 | |||||
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Filtered (EMI RFI) - Commercial | UL94 V-2 | 3 A | Receptacle Male Blades - Module | Switch On-Off | Panel Mount Snap-In | 32.6 mm | 29 mm | IEC 320-C14 | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | ||
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Filtered (EMI RFI) - Commercial | UL94 V-2 | 2 A | Receptacle Male Blades - Module | Switch On-Off | Panel Mount Snap-In | 32.6 mm | 29 mm | IEC 320-C14 | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | ||
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Filtered (EMI RFI) - Commercial | UL94 V-2 | 8 A | Receptacle Male Blades - Module | Switch On-Off | Panel Mount Snap-In | 32.6 mm | 29 mm | IEC 320-C14 | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | ||
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Filtered (EMI RFI) - Commercial | UL94 V-2 | 10 A | Receptacle Male Blades - Module | Switch On-Off | Panel Mount Snap-In | 33.3 mm | 28.3 mm | IEC 320-C14 | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | ||
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Filtered (EMI RFI) - Commercial | UL94 V-2 | 8 A | Receptacle Male Blades - Module | Switch On-Off | Panel Mount Snap-In | 33.3 mm | 28.3 mm | IEC 320-C14 | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | ||
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Filtered (EMI RFI) - Commercial | UL94 V-2 | 6 A | Receptacle Male Blades - Module | Switch On-Off | Panel Mount Snap-In | 32.6 mm | 29 mm | IEC 320-C14 | 1.5 mm | 0.6 mm | 0.024 in | 0.059 in | ||
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Front or Rear Side Mount | Filtered (EMI RFI) - Commercial | UL94 V-2 | 4 A | Receptacle Male Blades - Module | Switch On-Off | Flange Panel Mount | 33.2 mm | 29.2 mm | IEC 320-C14 | |||||
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Front or Rear Side Mount | Filtered (EMI RFI) - Commercial | UL94 V-2 | 6 A | Receptacle Male Blades - Module | Switch On-Off | Flange Panel Mount | 33.2 mm | 29.2 mm | IEC 320-C14 | |||||
TE Connectivity Raychem Cable Protection | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | Quick Connect | Front or Rear Side Mount | Filtered (EMI RFI) - Commercial | UL94 V-2 | 2 A | Receptacle Male Blades - Module | Switch On-Off | Flange Panel Mount | 33.2 mm | 29.2 mm | IEC 320-C14 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 21.95 | |
| 10 | $ 18.66 | |||
| 25 | $ 17.49 | |||
| 60 | $ 16.44 | |||
| 120 | $ 15.66 | |||
| 300 | $ 14.68 | |||
| 540 | $ 14.08 | |||
Description
General part information
FN9263 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
