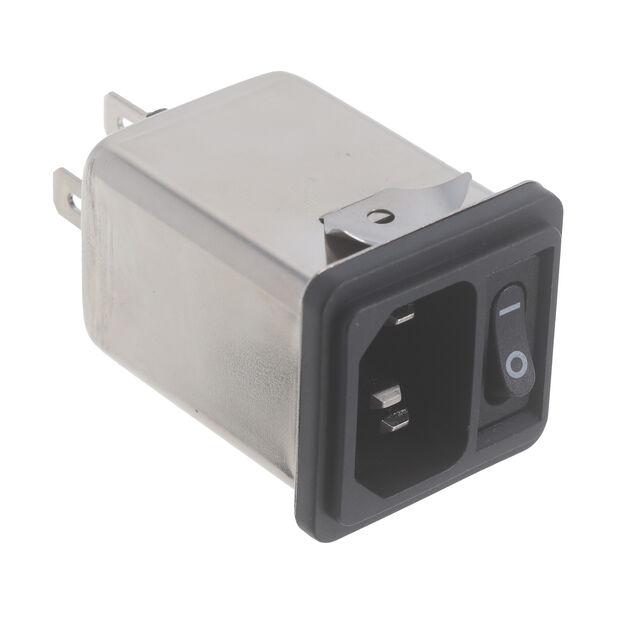

FN9263S-3-06

NRND

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN9263S-3-06

NRND

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9263S-3-06

Accomodates a Fuse	False
Approval Agency	UL, CQC, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	3 A
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	32.6 mm
Panel Thickness [Max]	1.5 mm
Panel Thickness [Max]	0.059 in
Panel Thickness [Min]	0.6 mm
Panel Thickness [Min]	0.024 in
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

FN9263 Series

Part	Approval Agency	Ingress Protection	Termination	Termination	Termination	Features	Filter Type	Material Flammability Rating	Current Rating - Filter	Connector Type	Switch Features	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]
TE Connectivity Raychem Cable Protection FN9263-3-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect	Front or Rear Side Mount	Filtered (EMI RFI) - Commercial	UL94 V-2	3 A	Receptacle Male Blades - Module	Switch On-Off	Flange Panel Mount	33.2 mm	29.2 mm	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9263S-3-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect		Filtered (EMI RFI) - Commercial	UL94 V-2	3 A	Receptacle Male Blades - Module	Switch On-Off	Panel Mount Snap-In	32.6 mm	29 mm	IEC 320-C14	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9263S-2-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect		Filtered (EMI RFI) - Commercial	UL94 V-2	2 A	Receptacle Male Blades - Module	Switch On-Off	Panel Mount Snap-In	32.6 mm	29 mm	IEC 320-C14	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9263S-8-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect		Filtered (EMI RFI) - Commercial	UL94 V-2	8 A	Receptacle Male Blades - Module	Switch On-Off	Panel Mount Snap-In	32.6 mm	29 mm	IEC 320-C14	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9263S1-10-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect		Filtered (EMI RFI) - Commercial	UL94 V-2	10 A	Receptacle Male Blades - Module	Switch On-Off	Panel Mount Snap-In	33.3 mm	28.3 mm	IEC 320-C14	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9263S1-8-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect		Filtered (EMI RFI) - Commercial	UL94 V-2	8 A	Receptacle Male Blades - Module	Switch On-Off	Panel Mount Snap-In	33.3 mm	28.3 mm	IEC 320-C14	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9263S-6-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect		Filtered (EMI RFI) - Commercial	UL94 V-2	6 A	Receptacle Male Blades - Module	Switch On-Off	Panel Mount Snap-In	32.6 mm	29 mm	IEC 320-C14	1.5 mm	0.6 mm	0.024 in	0.059 in
TE Connectivity Raychem Cable Protection FN9263-4-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect	Front or Rear Side Mount	Filtered (EMI RFI) - Commercial	UL94 V-2	4 A	Receptacle Male Blades - Module	Switch On-Off	Flange Panel Mount	33.2 mm	29.2 mm	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9263-6-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect	Front or Rear Side Mount	Filtered (EMI RFI) - Commercial	UL94 V-2	6 A	Receptacle Male Blades - Module	Switch On-Off	Flange Panel Mount	33.2 mm	29.2 mm	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9263-2-06	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm	Quick Connect	Front or Rear Side Mount	Filtered (EMI RFI) - Commercial	UL94 V-2	2 A	Receptacle Male Blades - Module	Switch On-Off	Flange Panel Mount	33.2 mm	29.2 mm	IEC 320-C14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 27.82
		10	$ 21.46
		25	$ 19.44
		40	$ 18.50
		80	$ 17.22
		230	$ 15.50
		440	$ 14.57

Description

General part information

FN9263 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
