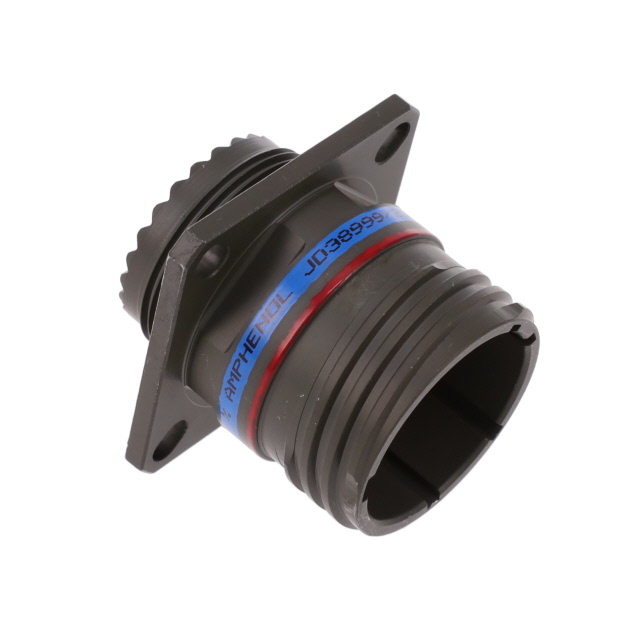

D38999/20WD35PNLC

Active

Amphenol Aerospace Operations

CONN RCPT HSNG MALE 37POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20WD35PNLC

Active

Amphenol Aerospace Operations

CONN RCPT HSNG MALE 37POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20WD35PNLC

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	22D
Contact Type	Crimp
Grade	Military
Housing Color	Olive Drab
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	37
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	15
Shell Size, MIL	D
Shielding	Shielded
Type	For Male Pins

D38999/20WD Series

Part	Grade	Shell Finish	Contact Shape	Ingress Protection	Housing Color	Shell Size, MIL	Qualification	Contact Size	Shell Material	Connector Type	Note	Orientation	Primary Material	Number of Positions	Mounting Feature	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Type	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Contact Type	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert	Contact Size
Amphenol Aerospace Operations D38999/20WD19BB	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III	20	Aluminum	Receptacle Housing	Contacts Not Included	B	Metal	19	Flange	Shielded	-65 ░C	347 °F	Thermoplastic	For Female Sockets	19	15	Crimp
Amphenol Aerospace Operations D38999/20WD35BN-CG	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III		Aluminum	Receptacle Housing	Contacts Not Included	N		37	Flange	Unshielded	-65 ░C	347 °F		For Female Sockets			Crimp	22D	15	35
Amphenol Aerospace Operations D38999/20WD5JN-LC	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III	16	Aluminum	Receptacle Housing	Contacts Not Included	N			Flange	Shielded	-65 ░C	347 °F		For Female Sockets			Crimp				15-5
Amphenol Aerospace Operations D38999/20WD35PNLC	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III		Aluminum	Receptacle Housing	Contacts Not Included	N	Metal	37	Flange	Shielded	-65 ░C	347 °F	Thermoplastic	For Male Pins			Crimp	22D	15	35
Amphenol Aerospace Operations D38999/20WD19JA-LC	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III	20	Aluminum	Receptacle Housing	Contacts Not Included	A		19	Flange	Shielded	-65 ░C	347 °F		For Female Sockets	19	15	Crimp
Amphenol Aerospace Operations D38999/20WD97HN-LC	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III		Aluminum	Receptacle Housing	Contacts Not Included	N		12	Flange	Shielded	-65 ░C	347 °F		For Male Pins			Crimp		15	97		4 8 16 20
Amphenol Aerospace Operations D38999/20WD15JA-LC	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III	16 20	Aluminum	Receptacle Housing	Contacts Not Included	A		15	Flange	Shielded	-65 ░C	347 °F		For Female Sockets			Crimp		15	15
Amphenol Aerospace Operations D38999/20WD5PB-LC	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III	16	Aluminum	Receptacle Housing	Contacts Not Included	B			Flange	Shielded	-65 ░C	347 °F		For Male Pins			Crimp				15-5
Amphenol Aerospace Operations D38999/20WD15HC-LC	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III	16 20	Aluminum	Receptacle Housing	Contacts Not Included	C		15	Flange	Shielded	-65 ░C	347 °F		For Male Pins			Crimp		15	15
Amphenol Aerospace Operations D38999/20WD97HB-LC	Military	Cadmium	Circular	Environment Resistant	Olive Drab	D	MIL-DTL-38999 Series III		Aluminum	Receptacle Housing	Contacts Not Included	B		12	Flange	Shielded	-65 ░C	347 °F		For Male Pins			Crimp		15	97		4 8 16 20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.99
		10	$ 19.30
		25	$ 18.42

Description

General part information

D38999/20WD Series

37 Position Circular Connector Receptacle Housing Panel Mount
