D38999/20WD Series | Amphenol Aerospace Operations | Zenode.ai

Catalog

D38999/20WD19PB

...

Part	Shell Material	Number of Positions	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Color	Primary Material	Connector Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Contact Finish - Mating	Shell Size (MIL)	Fastening Type	Contact Material	Mounting Type	Insert Material	Contact Finish Thickness - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Current Rating	Qualification	Mounting Feature	Shell Finish	Termination	Grade	Ingress Protection	Housing Color	Contact Size	Contact Type	Type	Contact Shape	Note	Contact Size Options	Material Flammability Rating	Features

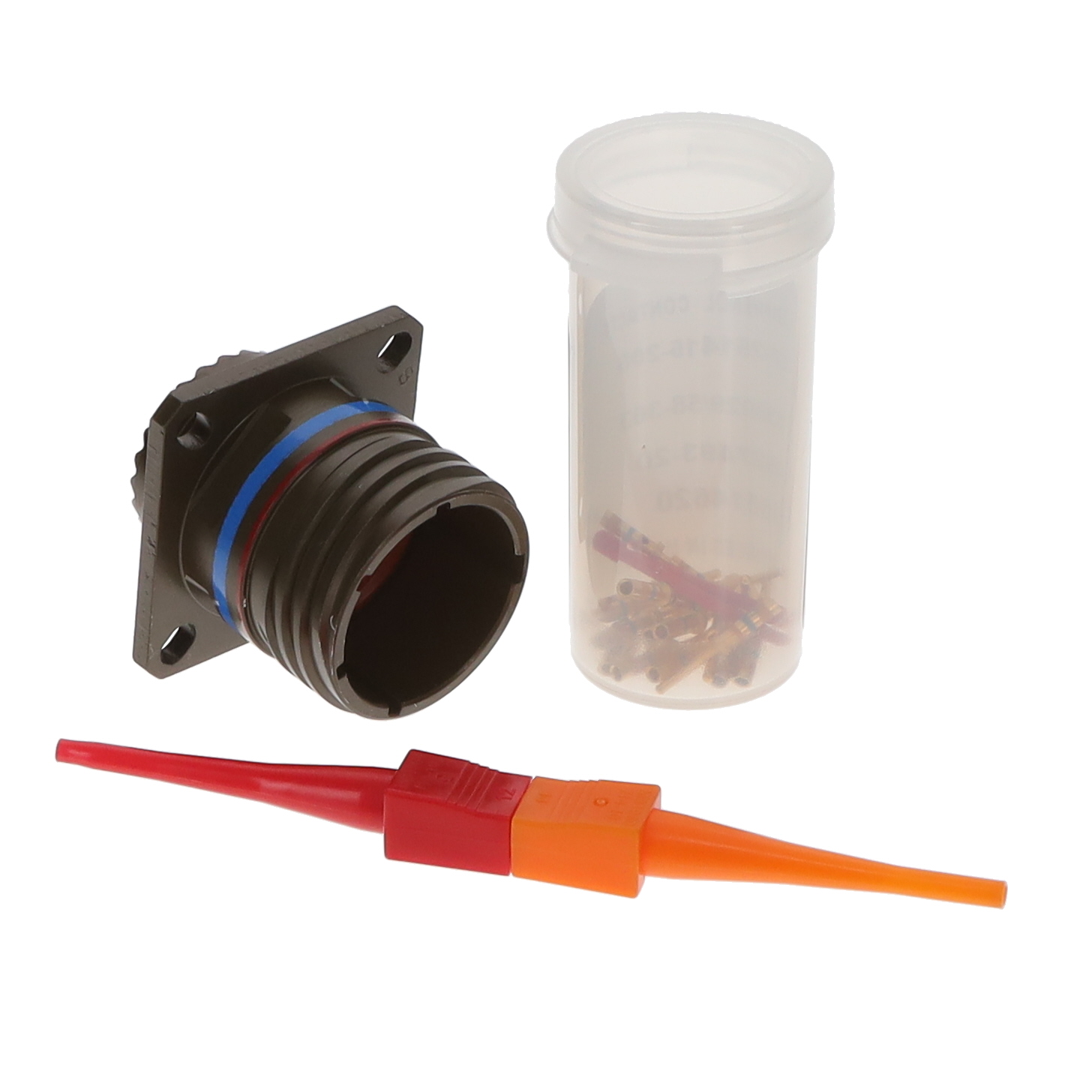

Amphenol Aerospace Operations D38999/20WD19PB	Aluminum	19	B	Dust Tight Waterproof	IP67	Shielded	Olive Drab	Metal	Male Pins Receptacle	19	15	Gold	D	Threaded	Copper Alloy	Panel Mount	Thermoplastic	50 µin	-65 °C	175 °C	Aviation Marine Military	7.5 A	MIL-DTL-38999 Series III	Flange	Olive Drab Cadmium	Crimp	Military
Amphenol Aerospace Operations D38999/20WD19HB		19	B				Olive Drab		Male Pins Receptacle	19	15	Gold		Threaded		Panel Mount								Flange		Crimp
Amphenol Aerospace Operations D38999/20WD19SD	Aluminum	19	D			Shielded	Olive Drab	Metal	Female Sockets Receptacle	19	15	Gold	D	Threaded	Copper Alloy	Panel Mount		50 µin	-65 °C	175 °C	Aerospace Aviation Marine Military	7.5 A		Flange	Olive Drab Cadmium	Crimp		Environment Resistant
Amphenol Aerospace Operations D38999/20WD97SAL	Aluminum	12	A			Shielded Unshielded		Metal	Receptacle Housing	97	15		D	Threaded		Panel Mount	Thermoplastic		-65 °C	175 °C			MIL-DTL-38999 Series III	Flange	Cadmium		Military	Environment Resistant	Olive Drab	16 20	Crimp	For Female Sockets	Circular	Contacts Not Included
Amphenol Aerospace Operations D38999/20WD18AD	Aluminum Alloy	18	D			Shielded			Receptacle Housing	18	15		D	Threaded		Panel Mount	Plastic		-65 °C	175 °C			MIL-DTL-38999 Series III	Flange	Cadmium Chromate		Military	Environment Resistant	Olive Drab	20	Crimp	For Male Pins	Circular	Contacts Not Included

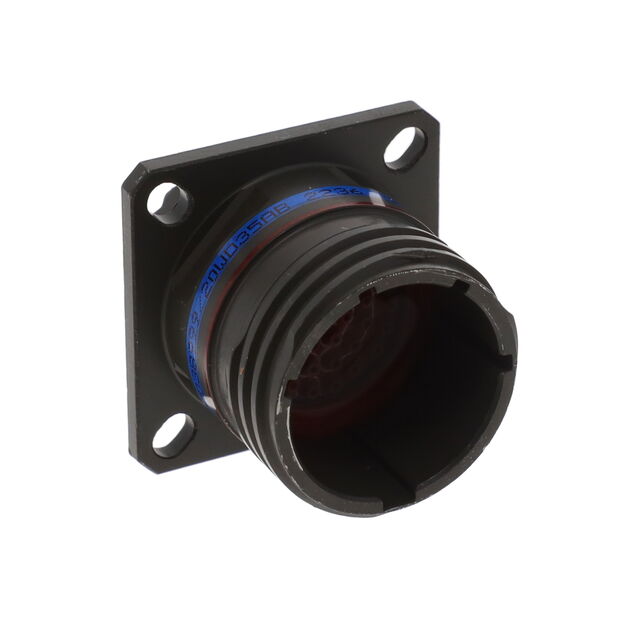

Amphenol Aerospace Operations D38999/20WD35AB	Aluminum	37 pos	B			Shielded		Metal	Receptacle Housing	35	15		D	Threaded		Panel Mount	Thermoplastic		-65 °C	175 °C			MIL-DTL-38999 Series III	Flange	Cadmium		Military	Environment Resistant	Olive Drab		Crimp	For Male Pins	Circular	Contacts Not Included	22D
Amphenol Aerospace Operations D38999/20WD19BB	Aluminum	19	B			Shielded		Metal	Receptacle Housing	19	15		D	Threaded		Panel Mount	Thermoplastic		-65 °C	175 °C			MIL-DTL-38999 Series III	Flange	Cadmium		Military	Environment Resistant	Olive Drab	20	Crimp	For Female Sockets	Circular	Contacts Not Included
Amphenol Aerospace Operations D38999/20WD35SN-LC	Aluminum	37 pos	N (Normal)			Shielded		Metal	Receptacle Housing	35	15		D	Threaded		Panel Mount			-65 °C	175 °C			MIL-DTL-38999 Series III	Flange	Cadmium		Military	Environment Resistant	Olive Drab		Crimp	For Female Sockets	Circular	Contacts Not Included	22D
Amphenol Aerospace Operations D38999/20WD15BD	Aluminum	15	D			Shielded		Metal	Receptacle Housing	15	15		D	Threaded		Panel Mount	Thermoplastic		-65 °C	175 °C			MIL-DTL-38999 Series III	Flange	Cadmium		Military	Environment Resistant	Olive Drab	16 20	Crimp	For Female Sockets	Circular	Contacts Not Included
Amphenol Aerospace Operations D38999/20WD19SN	Aluminum	19	N (Normal)	Dust Tight Waterproof	IP67	Shielded	Olive Drab	Metal	Female Sockets Receptacle	19	15	Gold	D	Threaded	Copper Alloy	Panel Mount	Thermoplastic	50 µin	-65 °C	125 °C 175 °C	Aviation Marine Military	7.5 A	MIL-DTL-38999 Series III	Flange	Olive Drab Cadmium	Crimp	Military	Waterproof								UL94 V-0	Self Locking
