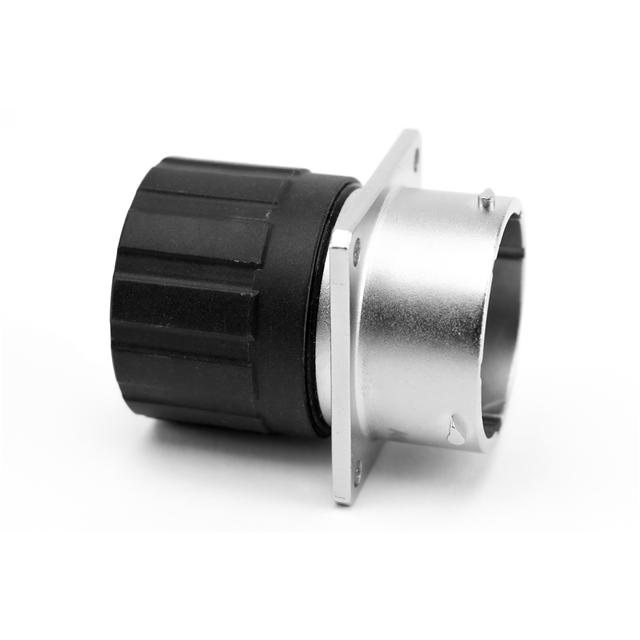

RT002028SNHEC

Active

Amphenol Sine Systems Corp

SQUARE FLANGE RECEPTACLE, FEMALE

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet

RT002028SNHEC

Active

Amphenol Sine Systems Corp

SQUARE FLANGE RECEPTACLE, FEMALE

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT002028SNHEC

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	28
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	28
Shell Size - Insert [Min]	20
Shielding	Shielded
Type	For Female Sockets

RT002028 Series

Part	Orientation	Contact Size	Material Flammability Rating	Connector Type	Mounting Feature	Shell Finish	Insert Material	Shell Material	Features	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shielding	Type	Note	Fastening Type	Contact Type	Number of Positions	Housing Color	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Primary Material	Applications	Contact Finish - Mating	Termination	Voltage Rating	Color	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Material
Amphenol Sine Systems Corp RT002028SNHEC	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Backshell	28	20	Shielded	For Female Sockets	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Circular
Amphenol Sine Systems Corp RT002028PNHEC03	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Cap (Cover)	28	20	Shielded	For Male Pins	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Circular	Metal
Amphenol Sine Systems Corp RT002028PNHECR	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Cap (Cover)	28	20	Shielded	For Male Pins	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Circular	Metal
Amphenol Sine Systems Corp RT002028SNHECR	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Cap (Cover)	28	20	Shielded	For Female Sockets	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Circular	Metal
Amphenol Sine Systems Corp RT002028SNHEC03	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Cap (Cover)	28	20	Shielded	For Female Sockets	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Circular	Metal
Amphenol Sine Systems Corp RT002028SKNH03-K	N		UL94 V-0	Receptacle Female Sockets	Flange	Nickel	Polyamide (PA66) Nylon 6/6	Zinc Die Cast		28	20	Shielded			Bayonet Lock		28		IP67 IP69K	-40 °C	105 ░C		Metal	Aerospace Automation Industrial Telecom Transportation	Gold	Crimp	250 VAC	Silver	13 A	Flash	Brass
Amphenol Sine Systems Corp RT002028PKNH03-K	N		UL94 V-0	Male Pins Receptacle	Flange	Nickel	Polyamide (PA66) Nylon 6/6	Zinc Die Cast		28	20	Shielded			Bayonet Lock		28		IP67 IP69K	-40 °C	105 ░C		Metal	Aerospace Automation Industrial Telecom Transportation	Gold	Crimp	250 VAC	Silver	13 A	Flash	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 18.64

Description

General part information

RT002028 Series

28 Position Circular Connector Receptacle Housing Panel Mount Backshell

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet
