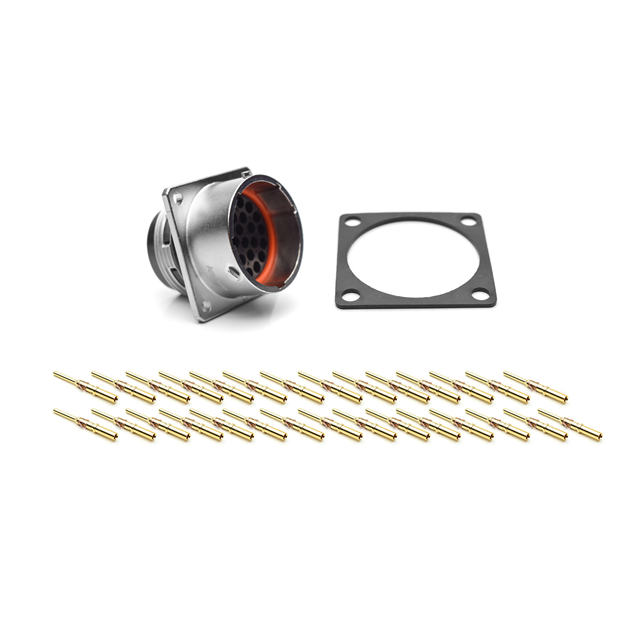

RT002028PKNH03-K

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 28POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate RSSM ecomate-Family-Flyer-2019 +1

RT002028PKNH03-K

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 28POS GOLD CRIMP

Deep-Dive with AI

Documentsecomate RSSM ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT002028PKNH03-K

Applications	Automation, Aerospace, Telecom, Industrial, Transportation
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP69K, IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	28
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert [Max]	28
Shell Size - Insert [Min]	20
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 VAC

RT002028 Series

Part	Orientation	Contact Size	Material Flammability Rating	Connector Type	Mounting Feature	Shell Finish	Insert Material	Shell Material	Features	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shielding	Type	Note	Fastening Type	Contact Type	Number of Positions	Housing Color	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Primary Material	Applications	Contact Finish - Mating	Termination	Voltage Rating	Color	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Material
Amphenol Sine Systems Corp RT002028SNHEC	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Backshell	28	20	Shielded	For Female Sockets	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Circular
Amphenol Sine Systems Corp RT002028PNHEC03	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Cap (Cover)	28	20	Shielded	For Male Pins	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Circular	Metal
Amphenol Sine Systems Corp RT002028PNHECR	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Cap (Cover)	28	20	Shielded	For Male Pins	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Circular	Metal
Amphenol Sine Systems Corp RT002028SNHECR	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Cap (Cover)	28	20	Shielded	For Female Sockets	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Circular	Metal
Amphenol Sine Systems Corp RT002028SNHEC03	N	16	UL94 V-0	Receptacle Housing	Flange	Nickel	Thermoplastic	Zinc Alloy	Cap (Cover)	28	20	Shielded	For Female Sockets	Contacts Not Included	Bayonet Lock	Crimp	28	Silver	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Circular	Metal
Amphenol Sine Systems Corp RT002028SKNH03-K	N		UL94 V-0	Receptacle Female Sockets	Flange	Nickel	Polyamide (PA66) Nylon 6/6	Zinc Die Cast		28	20	Shielded			Bayonet Lock		28		IP67 IP69K	-40 °C	105 ░C		Metal	Aerospace Automation Industrial Telecom Transportation	Gold	Crimp	250 VAC	Silver	13 A	Flash	Brass
Amphenol Sine Systems Corp RT002028PKNH03-K	N		UL94 V-0	Male Pins Receptacle	Flange	Nickel	Polyamide (PA66) Nylon 6/6	Zinc Die Cast		28	20	Shielded			Bayonet Lock		28		IP67 IP69K	-40 °C	105 ░C		Metal	Aerospace Automation Industrial Telecom Transportation	Gold	Crimp	250 VAC	Silver	13 A	Flash	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.05
		10	$ 57.86
		25	$ 55.63
		50	$ 53.78
		100	$ 50.81

Description

General part information

RT002028 Series

28 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

ecomate RSSM

Datasheet

ecomate-Family-Flyer-2019

Datasheet
