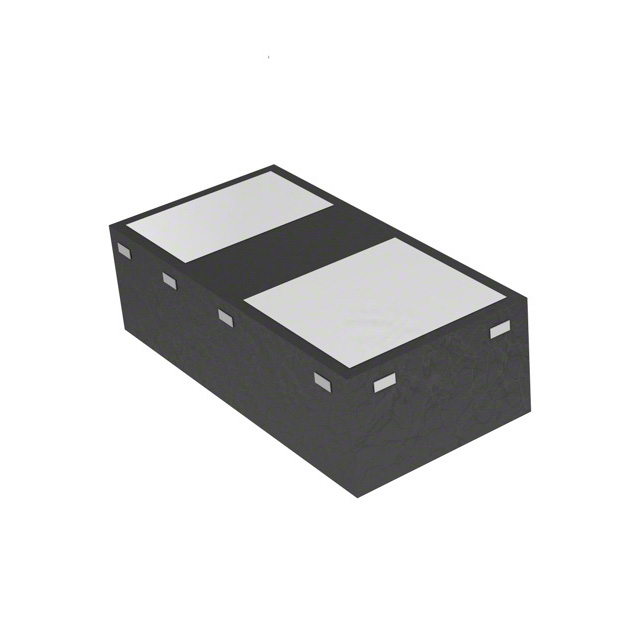

DF2S6P2CTC,L3F

Active

Toshiba Semiconductor and Storage

TVS DIODE 5.5VWM CST2C

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

TVS DIODE 5.5VWM CST2C

Technical Specifications

Parameters and characteristics for this part

Specification	DF2S6P2CTC,L3F

Applications	USB
Capacitance @ Frequency	600 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	2-SMD, No Lead
Power Line Protection	False
Supplier Device Package	CST2C
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	5.6 V
Voltage - Reverse Standoff (Typ)	5.5 V

Part	Type	Applications	Operating Temperature	Unidirectional Channels [custom]	Supplier Device Package	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Mounting Type	Package / Case	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Clamping (Max) @ Ipp
Toshiba Semiconductor and Storage DF2S6P2CTC,L3F	Zener	USB	150 °C	1	CST2C	600 pF	5.5 V	Surface Mount	2-SMD No Lead	5.6 V
Toshiba Semiconductor and Storage DF2S6P2FU,H3F	Zener	General Purpose	150 °C	1	USC	600 pF	5.5 V	Surface Mount	SC-76 SOD-323	5.6 V	80 A	1.9 kW	1900 W	23.7 V
Toshiba Semiconductor and Storage DF2S6M5SL,L3F	Zener	General Purpose	150 °C	1	SL2	0.6 pF	5 V	Surface Mount	2-SMD No Lead	5.5 V	2.5 A		37 W		17 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clamp 80A Ipp Tvs Diode Surface Mount CST2C
