438-047-000-112

Active

EDAC Inc.

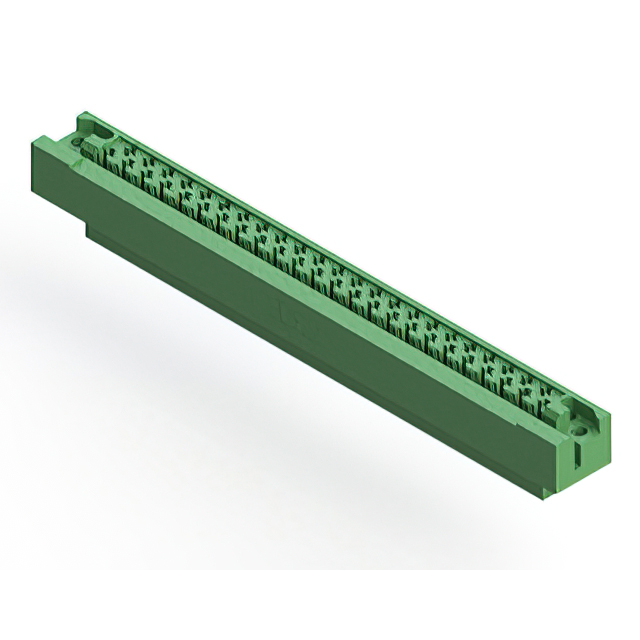

CONN CARDEDGE HSG 47POS .200 GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

438-047-000-112

Active

EDAC Inc.

CONN CARDEDGE HSG 47POS .200 GRN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	438-047-000-112

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Green
Flange Feature	3.25 mm
Flange Feature	0.128 in
Material - Insulation	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm

438-047 Series

Part	Card Thickness	Card Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Flange Feature	Flange Feature	Note	Material - Insulation	Card Type	Pitch [x]	Pitch [x]	Color	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Contact Finish	Contact Material	Gender	Termination	Mounting Type
EDAC Inc. 438-047-000-112	0.062 in	1.57 mm	125 °C	-65 ░C	UL94 V-0	3.25 mm	0.128 in	Contacts Not Included	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	0.2 in	5.08 mm	Green
EDAC Inc. 438-047-500-112	0.062 in	1.57 mm	125 °C	-65 ░C		3.25 mm	0.128 in		Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.2 in	5.08 mm	Green	2	10 Áin	0.25 Ám	2	Gold	Copper Alloy	Female	Solder Eyelet(s)	Panel Mount Through Hole
EDAC Inc. 438-047-500-122	0.093 in	2.36 mm	125 °C	-65 ░C		3.25 mm	0.128 in		Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.2 in	5.08 mm	Green	2	10 Áin	0.25 Ám	2	Gold	Copper Alloy	Female	Solder Eyelet(s)	Panel Mount Through Hole
EDAC Inc. 438-047-542-112	0.062 in	1.57 mm	125 °C	-65 ░C		3.25 mm	0.128 in		Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.2 in	5.08 mm	Green	2	10 Áin	0.25 Ám	2	Gold	Copper Alloy	Female	Wire Wrap	Panel Mount Through Hole
EDAC Inc. 438-047-520-122	0.093 in	2.36 mm	125 °C	-65 ░C		3.25 mm	0.128 in		Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.2 in	5.08 mm	Green	2	10 Áin	0.25 Ám	2	Gold	Copper Alloy	Female	Solder	Panel Mount Through Hole
EDAC Inc. 438-047-540-112	0.062 in	1.57 mm	125 °C	-65 ░C		3.25 mm	0.128 in		Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.2 in	5.08 mm	Green	2	10 Áin	0.25 Ám	2	Gold	Copper Alloy	Female	Wire Wrap	Panel Mount Through Hole
EDAC Inc. 438-047-541-122	0.093 in	2.36 mm	125 °C	-65 ░C		3.25 mm	0.128 in		Diallyl Phthalate (DAP)	Non Specified - Dual Edge	0.2 in	5.08 mm	Green	2	10 Áin	0.25 Ám	2	Gold	Copper Alloy	Female	Wire Wrap	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.44

Description

General part information

438-047 Series

47 Position Card Edge Connector Housing Green 0.200" (5.08mm)
