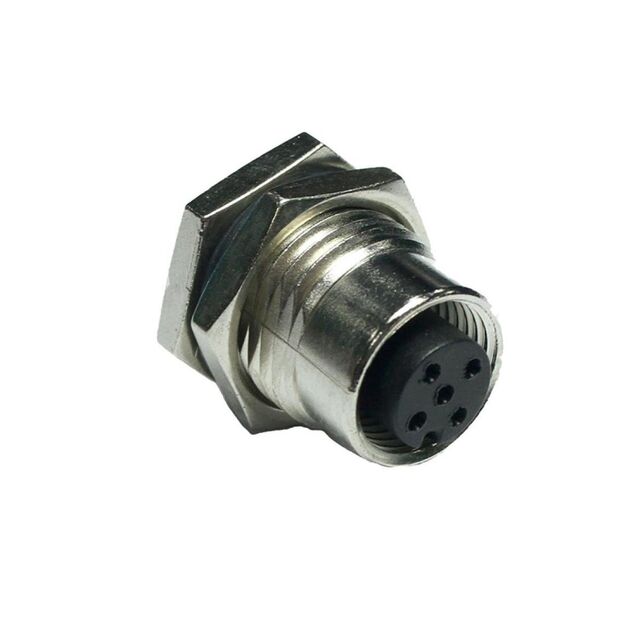

M12A-10PFFS-SF8B15
ActiveAmphenol LTW
CONN RCPT FML 10P WIR LEAD 0.49'
Deep-Dive with AI
Search across all available documentation for this part.
M12A-10PFFS-SF8B15
ActiveAmphenol LTW
CONN RCPT FML 10P WIR LEAD 0.49'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-10PFFS-SF8B15 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-10 |
| Shielding | Shielded |
| Termination | Wire Leads |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.91 | |
| 10 | $ 13.01 | |||
| 25 | $ 11.77 | |||
| 50 | $ 10.92 | |||
| 100 | $ 10.16 | |||
| 250 | $ 9.26 | |||
| 500 | $ 8.66 | |||
| 1000 | $ 8.11 | |||
Description
General part information
M12A-10PFFS Series
10 Position Circular Connector Receptacle, Female Sockets Wire Leads
