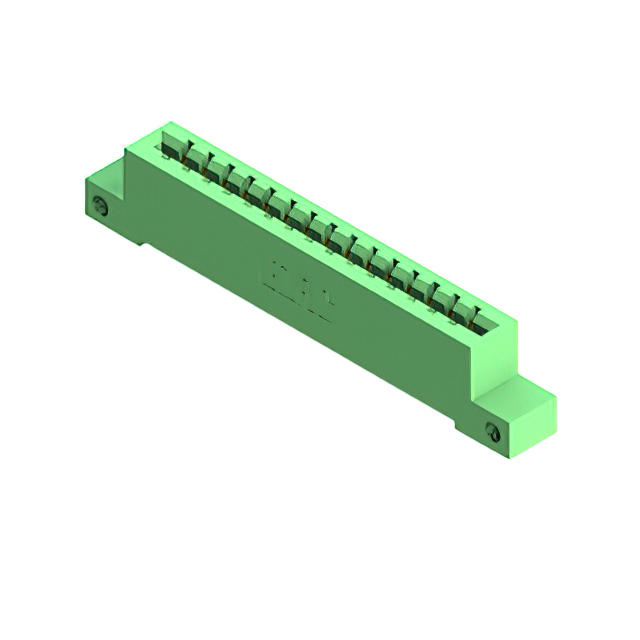

837-015-540-112

Active

EDAC Inc.

837 HIGH TEMP' SERIES (.156" (3.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

837-015-540-112

Active

EDAC Inc.

837 HIGH TEMP' SERIES (.156" (3.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	837-015-540-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	15
Number of Positions/Bay/Row [custom]	15
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

837-015 Series

Part	Mounting Type	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Gender	Contact Type	Read Out	Number of Positions/Bay/Row [custom]	Contact Material	Card Type	Number of Positions	Termination Rows	Contact Finish	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature
EDAC Inc. 837-015-521-112	Through Hole	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Solder	1	10 Áin	0.25 Ám
EDAC Inc. 837-015-541-603	Through Hole	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Wire Wrap	1	10 Áin	0.25 Ám
EDAC Inc. 837-015-540-612	Through Hole	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C		Side Mount Opening Unthreaded		Wire Wrap	1	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 837-015-540-607	Through Hole	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C		M3 Threaded Insert Top Mount Opening		Wire Wrap	1	10 Áin	0.25 Ám
EDAC Inc. 837-015-540-603	Through Hole	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Wire Wrap	1	10 Áin	0.25 Ám
EDAC Inc. 837-015-558-612	Through Hole Right Angle	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C		Side Mount Opening Unthreaded		Solder	1	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 837-015-500-602	Through Hole	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C				Solder Eyelet(s)	1	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 837-015-540-112	Through Hole	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Wire Wrap	1	10 Áin	0.25 Ám
EDAC Inc. 837-015-542-607	Through Hole	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C		M3 Threaded Insert Top Mount Opening		Wire Wrap	1	10 Áin	0.25 Ám
EDAC Inc. 837-015-542-104	Through Hole	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Female	Cantilever	Single	15	Copper Alloy	Non Specified - Single Edge	15	1	Gold	0.156 in	3.96 mm	125 °C	-40 °C	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Wire Wrap	1	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 41.00
Newark	Each	1	$ 47.32
		100	$ 28.09
		250	$ 25.36
		500	$ 24.00
		1000	$ 20.63

Description

General part information

837-015 Series

15 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources
