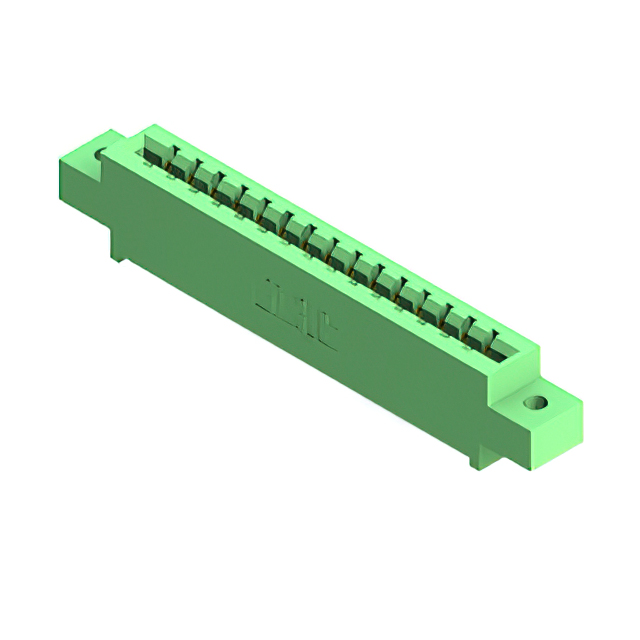

837-015-500-602
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-015-500-602
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-015-500-602 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
837-015 Series
| Part | Mounting Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Gender | Contact Type | Read Out | Number of Positions/Bay/Row [custom] | Contact Material | Card Type | Number of Positions | Termination Rows | Contact Finish | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Solder | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Wire Wrap | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | Side Mount Opening Unthreaded | Wire Wrap | 1 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | M3 Threaded Insert Top Mount Opening | Wire Wrap | 1 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Wire Wrap | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Through Hole Right Angle | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | Side Mount Opening Unthreaded | Solder | 1 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | Solder Eyelet(s) | 1 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Wire Wrap | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | M3 Threaded Insert Top Mount Opening | Wire Wrap | 1 | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | Cantilever | Single | 15 | Copper Alloy | Non Specified - Single Edge | 15 | 1 | Gold | 0.156 in | 3.96 mm | 125 °C | -40 °C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Wire Wrap | 1 | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 93.68 | |
Description
General part information
837-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
