800-1809-2-SJT0-BL-00300

Obsolete

CnC Tech, LLC

CRD 18AWG IEC320-C13 - CBL 9.84'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

800-1809-2-SJT0-BL-00300

Obsolete

CnC Tech, LLC

CRD 18AWG IEC320-C13 - CBL 9.84'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

800-1809 Series

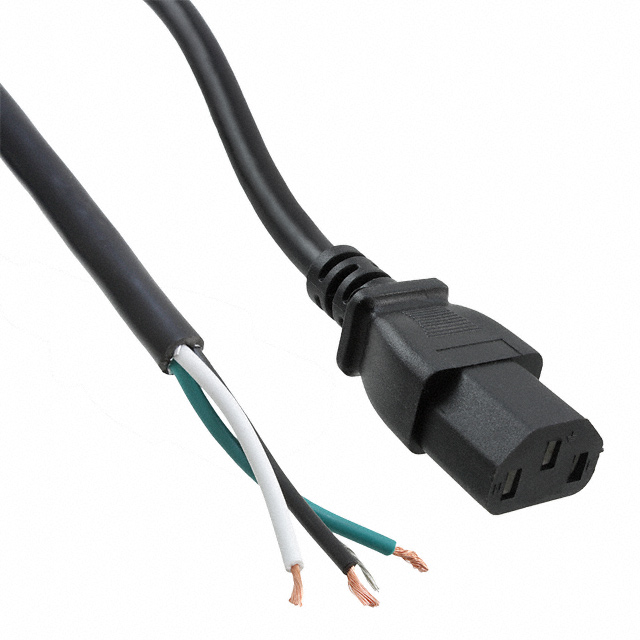

9.84' (3.00m) Power Cord Black IEC 320-C13 To Cable SJT

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	800-1809-2-SJT0-BL-00300	800-1809 Series

1st Connector	IEC 320-C13	NEMA 1-15P, IEC 320-C13
2nd Connector	Cable	Cable
Approval Agency Marking	CSA, UL	CSA, UL, cUL
Approved Countries	United States, Canada	United States, Canada
Color	Black	Black
Cord Type	SJT	SPT-2, SJT, SPT-1
Current Rating (Amps)	10 A	10 A
Features	Drain Wire	Drain Wire
Length	-	6 - 9 ft
Length	-	1.83 - 2.74 m
Length [x]	9.84 ft	6.56 - 9.84 ft
Length [x]	3 m	2 - 3 m
Number of Conductors	3	2 - 3
Operating Temperature	105 C	60 - 105 C
Shielding	Shielded	Unshielded, Shielded
Style	Female Sockets (Slots) to Leads	Male Pins (Blades) to Leads, Female Sockets (Slots) to Leads
Voltage Rating	250 VDC	125 - 250 VDC
Wire Gauge	18 AWG	18 AWG

800-1809 Series

CORD 18AWG NEMA 1-15P TO CBL 8'

Part	Approved Countries	Style	Current Rating (Amps)	Length [x]	Length [x]	Voltage Rating	Color	Operating Temperature	Cord Type	2nd Connector	Shielding	Wire Gauge	Approval Agency Marking	Number of Conductors	1st Connector	Length	Length	Features
CnC Tech, LLC 800-1809-2-SPT2-BL-0008F	Canada, United States	Male Pins (Blades) to Leads	10 A	2.44 m	8 ft	125 VDC	Black	105 C	SPT-2	Cable	Unshielded	18 AWG	CSA, UL	2	NEMA 1-15P
CnC Tech, LLC 800-1809-0-SPT2-BL-0006F	Canada, United States	Male Pins (Blades) to Leads				125 VDC	Black	60 °C	SPT-2	Cable	Unshielded	18 AWG	CSA, UL	2	NEMA 1-15P	6 ft	1.83 m
CnC Tech, LLC 800-1809-2-SJT0-BL-00300	Canada, United States	Female Sockets (Slots) to Leads	10 A	3 m	9.84 ft	250 VDC	Black	105 C	SJT	Cable	Shielded	18 AWG	CSA, UL	3	IEC 320-C13			Drain Wire
CnC Tech, LLC 800-1809-2-SPT1-BL-0009F	Canada, United States	Male Pins (Blades) to Leads	10 A			125 VDC	Black	105 C	SPT-1	Cable	Unshielded	18 AWG	CSA, UL	2	NEMA 1-15P	9 '	2.74 m
CnC Tech, LLC 800-1809-2-SJT0-BL-00300-1	Canada, United States	Female Sockets (Slots) to Leads	10 A	3 m	9.84 ft	250 VDC	Black	105 C	SJT	Cable	Unshielded	18 AWG	cUL, UL	3	IEC 320-C13
CnC Tech, LLC 800-1809-2-SPT2-BL-0008F-1	Canada, United States	Male Pins (Blades) to Leads	10 A	2.44 m	8 ft	125 VDC	Black	105 C	SPT-2	Cable	Unshielded	18 AWG	cUL, UL	2	NEMA 1-15P
CnC Tech, LLC 800-1809-2-SJT0-BL-00200	Canada, United States	Female Sockets (Slots) to Leads	10 A	2 m	6.56 ft	250 VDC	Black	105 C	SJT	Cable	Shielded	18 AWG	CSA, UL	3	IEC 320-C13			Drain Wire
CnC Tech, LLC 800-1809-2-SJT0-BL-00200-1	Canada, United States	Female Sockets (Slots) to Leads	10 A	2 m	6.56 ft	250 VDC	Black	105 C	SJT	Cable	Unshielded	18 AWG	cUL, UL	3	IEC 320-C13
