800-1809-2-SPT1-BL-0009F

Obsolete

CnC Tech, LLC

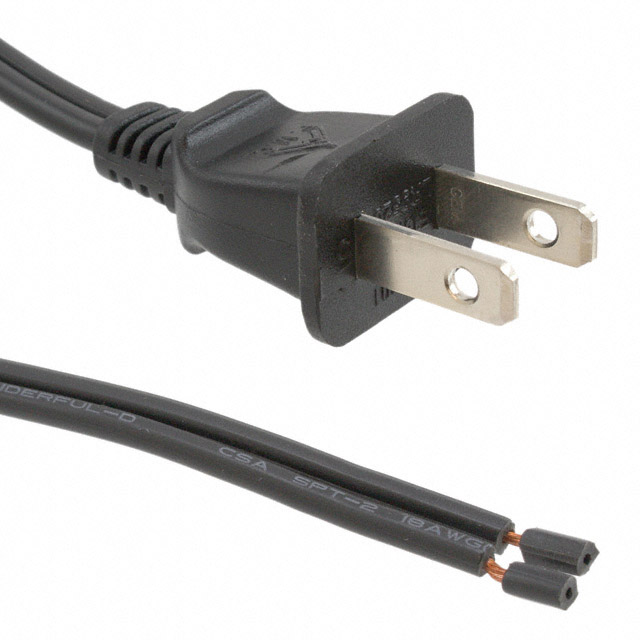

CORD 18AWG NEMA 1-15P TO CBL 9'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

800-1809-2-SPT1-BL-0009F

Obsolete

CnC Tech, LLC

CORD 18AWG NEMA 1-15P TO CBL 9'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	800-1809-2-SPT1-BL-0009F	800-1809 Series

1st Connector	NEMA 1-15P	NEMA 1-15P, IEC 320-C13
2nd Connector	Cable	Cable
Approval Agency Marking	CSA, UL	CSA, UL, cUL
Approved Countries	United States, Canada	United States, Canada
Color	Black	Black
Cord Type	SPT-1	SPT-2, SJT, SPT-1
Current Rating (Amps)	10 A	10 A
Features	-	Drain Wire
Length	2.74 m	1.83 - 2.74 m
Length	9 '	6 - 9 ft
Length	-	2 - 3 m
Length	-	6.56 - 9.84 ft
Number of Conductors	2	2 - 3
Operating Temperature	105 C	60 - 105 C
Shielding	Unshielded	Unshielded, Shielded
Style	Male Pins (Blades) to Leads	Male Pins (Blades) to Leads, Female Sockets (Slots) to Leads
Voltage Rating	125 VDC	125 - 250 VDC
Wire Gauge	18 AWG	18 AWG

800-1809 Series

CORD 18AWG NEMA 1-15P TO CBL 8'

Part	Approved Countries	Style	Current Rating (Amps)	Length [x]	Length [x]	Voltage Rating	Color	Operating Temperature	Cord Type	2nd Connector	Shielding	Wire Gauge	Approval Agency Marking	Number of Conductors	1st Connector	Length	Length	Features
CnC Tech, LLC 800-1809-2-SPT2-BL-0008F	Canada, United States	Male Pins (Blades) to Leads	10 A	2.44 m	8 ft	125 VDC	Black	105 C	SPT-2	Cable	Unshielded	18 AWG	CSA, UL	2	NEMA 1-15P
CnC Tech, LLC 800-1809-0-SPT2-BL-0006F	Canada, United States	Male Pins (Blades) to Leads				125 VDC	Black	60 °C	SPT-2	Cable	Unshielded	18 AWG	CSA, UL	2	NEMA 1-15P	6 ft	1.83 m
CnC Tech, LLC 800-1809-2-SJT0-BL-00300	Canada, United States	Female Sockets (Slots) to Leads	10 A	3 m	9.84 ft	250 VDC	Black	105 C	SJT	Cable	Shielded	18 AWG	CSA, UL	3	IEC 320-C13			Drain Wire
CnC Tech, LLC 800-1809-2-SPT1-BL-0009F	Canada, United States	Male Pins (Blades) to Leads	10 A			125 VDC	Black	105 C	SPT-1	Cable	Unshielded	18 AWG	CSA, UL	2	NEMA 1-15P	9 '	2.74 m
CnC Tech, LLC 800-1809-2-SJT0-BL-00300-1	Canada, United States	Female Sockets (Slots) to Leads	10 A	3 m	9.84 ft	250 VDC	Black	105 C	SJT	Cable	Unshielded	18 AWG	cUL, UL	3	IEC 320-C13
CnC Tech, LLC 800-1809-2-SPT2-BL-0008F-1	Canada, United States	Male Pins (Blades) to Leads	10 A	2.44 m	8 ft	125 VDC	Black	105 C	SPT-2	Cable	Unshielded	18 AWG	cUL, UL	2	NEMA 1-15P
CnC Tech, LLC 800-1809-2-SJT0-BL-00200	Canada, United States	Female Sockets (Slots) to Leads	10 A	2 m	6.56 ft	250 VDC	Black	105 C	SJT	Cable	Shielded	18 AWG	CSA, UL	3	IEC 320-C13			Drain Wire
CnC Tech, LLC 800-1809-2-SJT0-BL-00200-1	Canada, United States	Female Sockets (Slots) to Leads	10 A	2 m	6.56 ft	250 VDC	Black	105 C	SJT	Cable	Unshielded	18 AWG	cUL, UL	3	IEC 320-C13

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

800-1809 Series

9.00' (2.74m) Power Cord Black NEMA 1-15P To Cable SPT-1
