3-1609037-2
ActiveTE Connectivity Corcom Filters

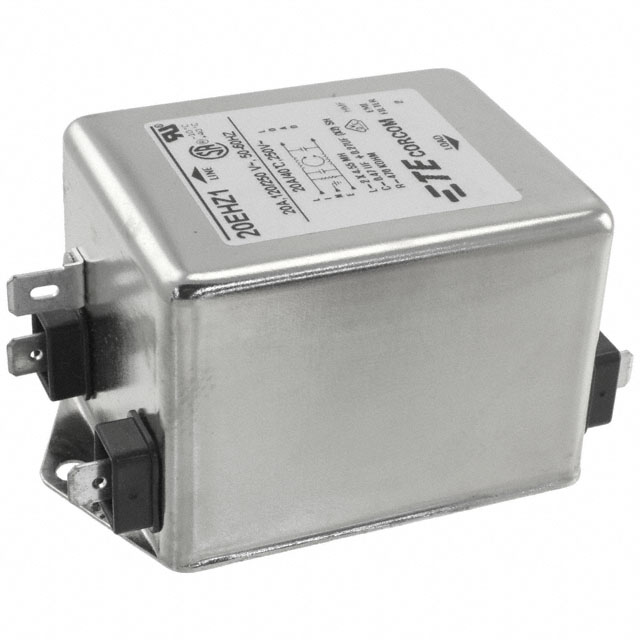

LINE FILTER 250VAC 20A CHASSIS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-1609037-2 | 1609037 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Approval Agency | VDE, CSA, UR | VDE, CSA, UR, UL |
| Configuration | Single Stage | Single Stage, Two Stage |
| Current | 20 A | 4 - 30 A |
| Filter Type | Single Phase | Single Phase |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Inductance | 4.55 mH | 2.88 - 900 mH |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Termination Style | Quick Connect | Quick Connect, Threaded Post (8-32) |
| Voltage - Rated AC | 250 V | 250 V |
1609037 Series
LINE FILTER 250VAC 6A CHASSIS
| Part | Applications | Termination Style | Current | Inductance | Voltage - Rated AC | Filter Type | Frequency - Operating [Max] | Frequency - Operating [Min] | Approval Agency | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters 2-1609037-9 | General Purpose | Quick Connect | 6 A | 5.1 mH | 250 V | Single Phase | 60 Hz | 50 Hz | CSA, UR, VDE | Chassis Mount | -10 °C | 40 °C | Single Stage |
TE Connectivity Corcom Filters 3-1609037-2 | General Purpose | Quick Connect | 20 A | 4.55 mH | 250 V | Single Phase | 60 Hz | 50 Hz | CSA, UR, VDE | Chassis Mount | -10 °C | 40 °C | Single Stage |
TE Connectivity Corcom Filters 3-1609037-5 | General Purpose | Threaded Post (8-32) | 20 A | 3.88 mH | 250 V | Single Phase | 60 Hz | 50 Hz | UR, VDE | Chassis Mount | -10 °C | 40 °C | Single Stage |
TE Connectivity Corcom Filters 3-1609037-3 | General Purpose | Threaded Post (8-32) | 30 A | 900 µH | 250 V | Single Phase | 60 Hz | 50 Hz | CSA, UR, VDE | Chassis Mount | -10 °C | 40 °C | Single Stage |
TE Connectivity Corcom Filters 4-1609037-2 | General Purpose | Quick Connect | 20 A | 6 mH | 250 V | Single Phase | 60 Hz | 50 Hz | CSA, UR, VDE | Chassis Mount | -10 °C | 40 °C | Two Stage |
TE Connectivity Corcom Filters 3-1609037-1 | General Purpose | Quick Connect | 15 A | 5.04 mH | 250 V | Single Phase | 60 Hz | 50 Hz | CSA, UR, VDE | Chassis Mount | -10 °C | 40 °C | Single Stage |
TE Connectivity Corcom Filters 2-1609037-8 | General Purpose | Quick Connect | 4 A | 7 mH | 250 V | Single Phase | 60 Hz | 50 Hz | CSA, UR, VDE | Chassis Mount | -10 °C | 40 °C | Single Stage |
TE Connectivity Corcom Filters 4-1609037-0 | General Purpose | Quick Connect | 20 A | 2.88 mH | 250 V | Single Phase | 60 Hz | 50 Hz | UR, VDE | Chassis Mount | -10 °C | 40 °C | Two Stage |
TE Connectivity Corcom Filters 3-1609037-0 | General Purpose | Quick Connect | 10 A | 4.97 mH | 250 V | Single Phase | 60 Hz | 50 Hz | CSA, UR, VDE | Chassis Mount | -10 °C | 40 °C | Single Stage |
TE Connectivity Corcom Filters 4-1609037-1 | General Purpose | Threaded Post (8-32) | 20 A | 6 mH | 250 V | Single Phase | 60 Hz | 50 Hz | CSA, UR, VDE | Chassis Mount | -10 °C | 40 °C | Two Stage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 64.37 | |
| 12 | $ 62.23 | |||
| 36 | $ 60.08 | |||
| 60 | $ 57.94 | |||
| 108 | $ 53.11 | |||
Description
General part information
1609037 Series
Single Phase EMC/EMI Line Filter 20 A 250V 50/60Hz Single Stage Quick Connect
