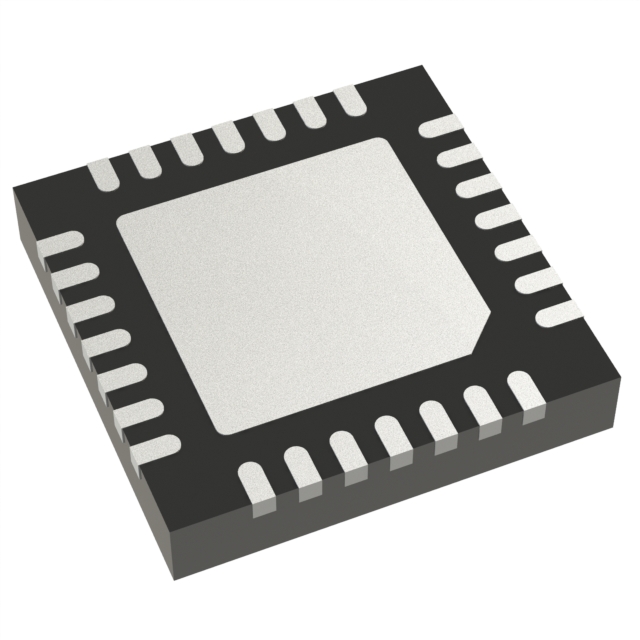

CMX902QT8

Active

CML Micro

IC AMP GPS 130MHZ-700MHZ 28WQFN

Search across all available documentation for this part.

Active

CML Micro

IC AMP GPS 130MHZ-700MHZ 28WQFN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Amplifier IC General Purpose 130MHz ~ 700MHz 28-WQFN (5x5)

Technical documentation and resources

Specification	CMX902QT8	CMX902 Series

For Use With/Related Products	-	CMX902
Frequency [Max]	700 MHz	170 - 700 MHz
Frequency [Min]	130 MHz	130 - 400 MHz
Gain	42.5 dB	42.5 dB
Mounting Type	Surface Mount	Surface Mount
Package / Case	28-VFQFN Exposed Pad	28-VFQFN Exposed Pad
RF Type	General Purpose	General Purpose
Supplied Contents	-	Board(s)
Supplier Device Package	28-WQFN (5x5)	28-WQFN (5x5)
Test Frequency	435 MHz	435 MHz
Type	-	Power Amplifier
Voltage - Supply [Max]	6 V	6 V
Voltage - Supply [Min]	2.5 V	2.5 V

Part	For Use With/Related Products	Type	Frequency [Max]	Frequency [Min]	Supplied Contents	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Type	Gain	Test Frequency	Package / Case	Supplier Device Package	Mounting Type
CML Micro EV9021-435	CMX902	Power Amplifier	470 MHz	400 MHz	Board(s)
CML Micro EV9021-160	CMX902	Power Amplifier	170 MHz	150 MHz	Board(s)
CML Micro CMX902QT8			700 MHz	130 MHz		2.5 V	6 V	General Purpose	42.5 dB	435 MHz	28-VFQFN Exposed Pad	28-WQFN (5x5)	Surface Mount
