EV9021-435

Active

CML Micro

CMX902 EVALUATION KIT 400-470MHZ

Search across all available documentation for this part.

Active

CML Micro

CMX902 EVALUATION KIT 400-470MHZ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EV9021-435	CMX902 Series

For Use With/Related Products	CMX902	CMX902
Frequency [Max]	470 MHz	170 - 700 MHz
Frequency [Min]	400 MHz	130 - 400 MHz
Gain	-	42.5 dB
Mounting Type	-	Surface Mount
Package / Case	-	28-VFQFN Exposed Pad
RF Type	-	General Purpose
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	28-WQFN (5x5)
Test Frequency	-	435 MHz
Type	Power Amplifier	Power Amplifier
Voltage - Supply	-	2.5 V
Voltage - Supply	-	6 V

CMX902 EVALUATION KIT 400-470MHZ

Part	For Use With/Related Products	Type	Frequency [Max]	Frequency [Min]	Supplied Contents	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Type	Gain	Test Frequency	Package / Case	Supplier Device Package	Mounting Type
CML Micro EV9021-435	CMX902	Power Amplifier	470 MHz	400 MHz	Board(s)
CML Micro EV9021-160	CMX902	Power Amplifier	170 MHz	150 MHz	Board(s)
CML Micro CMX902QT8			700 MHz	130 MHz		2.5 V	6 V	General Purpose	42.5 dB	435 MHz	28-VFQFN Exposed Pad	28-WQFN (5x5)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 110.35

General part information

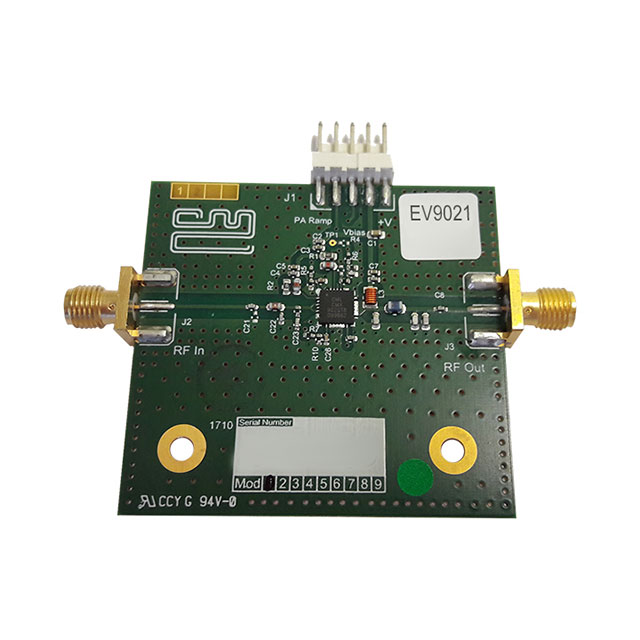

- CMX902 Power Amplifier 400MHz ~ 470MHz Evaluation Board

Technical documentation and resources
