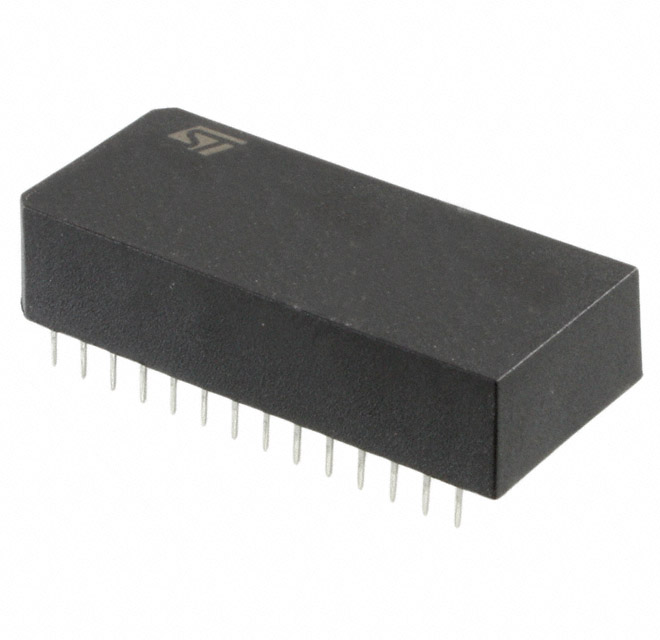

M48Z35AV-10PC1

Obsolete

STMicroelectronics

IC NVSRAM 256KBIT PAR 28PCDIP

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC NVSRAM 256KBIT PAR 28PCDIP

Technical Specifications

Parameters and characteristics for this part

Specification	M48Z35AV-10PC1

Access Time	100 ns
Memory Format	NVSRAM
Memory Interface	Parallel
Memory Organization	32K x 8
Memory Size	32 KB
Memory Type	Non-Volatile
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	0.6 in
Package / Case	28-DIP Module
Package / Case	15.24 mm
Supplier Device Package	28-PCDIP, CAPHAT®
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V
Write Cycle Time - Word, Page [custom]	100 ns
Write Cycle Time - Word, Page [custom]	100 ns

Part	Operating Temperature [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Format	Package / Case	Package / Case	Package / Case	Access Time	Technology	Supplier Device Package	Memory Size	Memory Type	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Interface	Memory Organization
STMicroelectronics M48Z35AV-10PC1	70 °C	Through Hole	3.6 V	3 V	NVSRAM	0.6 in	28-DIP Module	15.24 mm	100 ns	NVSRAM (Non-Volatile SRAM)	28-PCDIP CAPHAT®	32 KB	Non-Volatile	100 ns	100 ns	Parallel	32K x 8
STMicroelectronics M48Z35-70PC1	70 °C	Through Hole	5.5 V	4.75 V	NVSRAM	0.6 in	28-DIP Module	15.24 mm	70 ns	NVSRAM (Non-Volatile SRAM)	28-PCDIP CAPHAT®	32 KB	Non-Volatile			Parallel	32K x 8
STMicroelectronics M48Z35Y-70MH1E	70 °C	Surface Mount	5.5 V	4.5 V	NVSRAM		28-SOP		70 ns	NVSRAM (Non-Volatile SRAM)	28-SOH	32 KB	Non-Volatile			Parallel	32K x 8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

NVSRAM (Non-Volatile SRAM) Memory IC 256Kbit Parallel 100 ns 28-PCDIP, CAPHAT®
