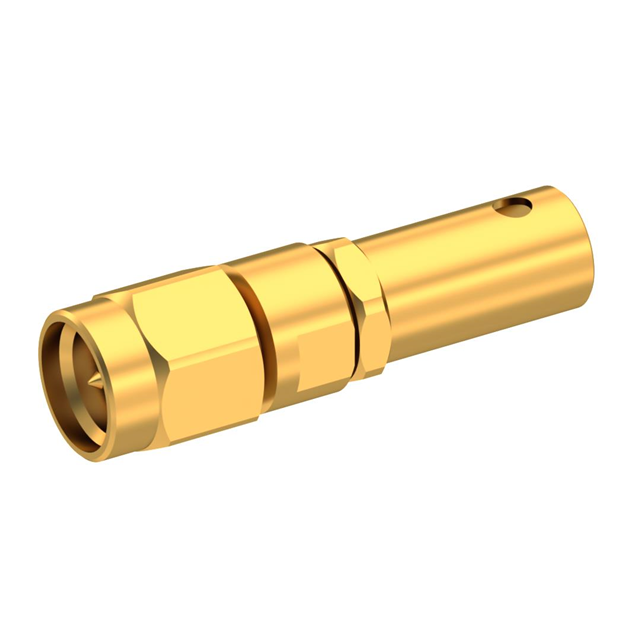

SMA M STR CR SD 5/50S C100

Deep-Dive with AI

Search across all available documentation for this part.

R125077000

Active

Radiall USA, Inc.

SMA M STR CR SD 5/50S C100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125077000

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

R12507 Series

Part	Body Material	Mating Cycles	Connector Type	Shield Termination	Contact Termination	Center Contact Plating	Impedance	Voltage Rating	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Style	Number of Ports	Mounting Type	Dielectric Material	Center Contact Material	Cable Group	Frequency - Max [Max]	Cable Group
Radiall USA, Inc. R125072220W	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-316 Double Braid	12.4 GHz
Radiall USA, Inc. R125072080W	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-316 Double Braid	12.4 GHz
Radiall USA, Inc. R125072081	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC		-65 ░C	165 °C	Silver	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-316 Double Braid	12.4 GHz
Radiall USA, Inc. R125071120W	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	316 RG-174	12.4 GHz
Radiall USA, Inc. R125077000	Stainless Steel	500	Male Pin Plug	Solder	Crimp Solder	Gold	50 Ohms	335 V	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-58	12.4 GHz	141
Radiall USA, Inc. R125075000	Stainless Steel		Male Pin Plug	Clamp	Crimp Solder	Gold	50 Ohms	500 V	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-58	12.4 GHz	141
Radiall USA, Inc. R125072220	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-316 Double Braid	12.4 GHz
Radiall USA, Inc. R125072001	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC		-65 ░C	165 °C	Silver	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	316 RG-174	12.4 GHz
Radiall USA, Inc. R125073001	Stainless Steel	500	Male Pin Plug	Clamp	Crimp Solder	Gold	50 Ohms	250 VDC		-65 ░C	165 °C	Silver	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	316 RG-188	12.4 GHz
Radiall USA, Inc. R125072001W	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	170 V		-65 ░C	165 °C	Silver	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	316 RG-174	12.4 GHz
