R125072081

Active

Radiall USA, Inc.

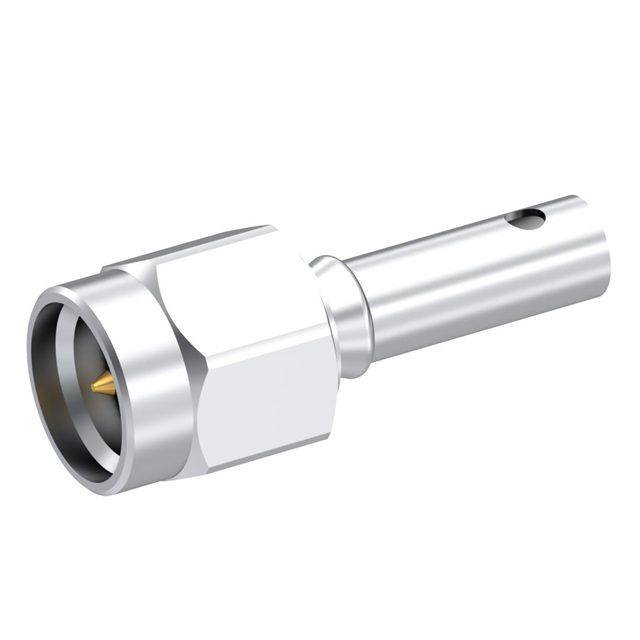

SMA / STRAIGHT PLUG CRIMP TYPE C

Deep-Dive with AI

Search across all available documentation for this part.

R125072081

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG CRIMP TYPE C

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125072081

Body Material	Stainless Steel
Cable Group	RG-316 Double Braid
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

R12507 Series

Part	Body Material	Mating Cycles	Connector Type	Shield Termination	Contact Termination	Center Contact Plating	Impedance	Voltage Rating	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Style	Number of Ports	Mounting Type	Dielectric Material	Center Contact Material	Cable Group	Frequency - Max [Max]	Cable Group
Radiall USA, Inc. R125072220W	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-316 Double Braid	12.4 GHz
Radiall USA, Inc. R125072080W	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-316 Double Braid	12.4 GHz
Radiall USA, Inc. R125072081	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC		-65 ░C	165 °C	Silver	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-316 Double Braid	12.4 GHz
Radiall USA, Inc. R125071120W	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	316 RG-174	12.4 GHz
Radiall USA, Inc. R125077000	Stainless Steel	500	Male Pin Plug	Solder	Crimp Solder	Gold	50 Ohms	335 V	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-58	12.4 GHz	141
Radiall USA, Inc. R125075000	Stainless Steel		Male Pin Plug	Clamp	Crimp Solder	Gold	50 Ohms	500 V	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-58	12.4 GHz	141
Radiall USA, Inc. R125072220	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC	Gold	-65 ░C	165 °C	Gold	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	RG-316 Double Braid	12.4 GHz
Radiall USA, Inc. R125072001	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	250 VDC		-65 ░C	165 °C	Silver	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	316 RG-174	12.4 GHz
Radiall USA, Inc. R125073001	Stainless Steel	500	Male Pin Plug	Clamp	Crimp Solder	Gold	50 Ohms	250 VDC		-65 ░C	165 °C	Silver	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	316 RG-188	12.4 GHz
Radiall USA, Inc. R125072001W	Stainless Steel	500	Male Pin Plug	Crimp	Crimp	Gold	50 Ohms	170 V		-65 ░C	165 °C	Silver	SMA	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	316 RG-174	12.4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.48

Description

General part information

R12507 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
