1EEJ2

Active

TE Connectivity Corcom Filters

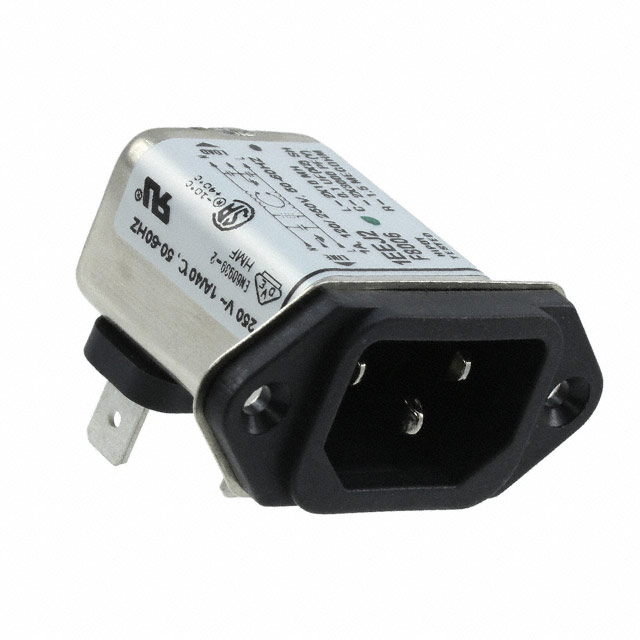

PWR ENT RCPT IEC320-C14 PANEL QC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector Chart

1EEJ2

Active

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C14 PANEL QC

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.58
		10	$ 12.75
		25	$ 11.53
		50	$ 10.71
		100	$ 9.96
		250	$ 9.08
		500	$ 8.49
		1000	$ 7.95

Description

General part information

1E Series

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle

Documents

Technical documentation and resources

Corcom EMI/RFI Filter Selector Chart

Related Document

Specification	1EEJ2	1E Series

Accomodates a Fuse	False	False
Applications	-	General Purpose
Approval Agency	UL, VDE, CSA	UL, VDE, CSA, UR
Configuration	-	Single Stage
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current	-	1 A
Current Rating - Appliance Inlet	1 A	1 A
Current Rating - Filter	1 A	1 A
Features	-	Front or Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, Single Phase
Frequency - Operating	-	60 Hz
Frequency - Operating	-	50 Hz
Inductance	-	1.86 - 21.2 mH
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle	Panel Mount, Flange, Panel Mount, Flange, Through Hole, Right Angle, Snap-In, Chassis Mount, Right Angle, Through Hole
Operating Temperature	-	-10 °C
Operating Temperature	-	40 °C
Panel Cutout Dimensions	-	Variable Size
Panel Cutout Dimensions [x]	30.48 mm	30.48 - 35.56 mm
Panel Cutout Dimensions [y]	22.86 mm	22.86 - 25.65 mm
Panel Thickness	-	1.73 mm
Panel Thickness	-	0.79 mm
Panel Thickness	-	0.031 "
Panel Thickness	-	0.068 in
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Termination Style	-	Wire Leads, PC Pins
Voltage - Rated AC	-	250 V
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC	120 VAC

Part

Current Rating - Appliance Inlet

Current Rating - Filter

Termination

Filter Type

Mounting Type

Connector Style

Approval Agency

Panel Cutout Dimensions [y]

Panel Cutout Dimensions [x]

Accomodates a Fuse

Connector Type

Voltage Rating - Appliance Inlet [Max]

Voltage Rating - Appliance Inlet [Min]

Panel Thickness [Max]

Panel Thickness [Min]

Panel Thickness [Max]

Panel Cutout Dimensions

Inductance

Termination Style

Configuration

Current

Applications

Voltage - Rated AC

Operating Temperature [Min]

Operating Temperature [Max]

Frequency - Operating [Max]

Frequency - Operating [Min]

Features

TE Connectivity Corcom Filters

1EBF1

1 A

0.25 in

6.3 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

Flange, Panel Mount

IEC 320-C14

CSA, UL, VDE

25.65 mm

35.56 mm

Male Blades, Receptacle

250 VAC

120 VAC

TE Connectivity Corcom Filters

1EEJ2

1 A

0.25 in

6.3 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

Panel Mount, Flange, Through Hole, Right Angle

IEC 320-C14

CSA, UL, VDE

22.86 mm

30.48 mm

Male Blades, Receptacle

250 VAC

120 VAC

TE Connectivity Corcom Filters

1EBS1

1 A

0.25 in

6.3 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

Panel Mount, Snap-In

IEC 320-C14

CSA, UL, VDE

Male Blades, Receptacle

250 VAC

120 VAC

1.73 mm

0.79 mm

0.031 "

0.068 in

Variable Size

TE Connectivity Corcom Filters

1EB3

Single Phase

Chassis Mount

CSA, UR, VDE

1.86 mH

Wire Leads

Single Stage

1 A

General Purpose

250 V

-10 °C

40 °C

60 Hz

50 Hz

TE Connectivity Corcom Filters

1EF2F

1 A

0.25 in

6.3 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

Flange, Panel Mount, Right Angle

IEC 320-C14

CSA, UL, VDE

22.86 mm

30.48 mm

Male Blades, Receptacle

250 VAC

120 VAC

TE Connectivity Corcom Filters

1EEA2

1 A

0.25 in

6.3 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

Flange, Panel Mount, Right Angle

IEC 320-C14

CSA, UL, VDE

22.86 mm

30.48 mm

Male Blades, Receptacle

250 VAC

120 VAC

TE Connectivity Corcom Filters

1EDP

Single Phase

Through Hole

CSA, UR, VDE

PC Pins

Single Stage

1 A

General Purpose

250 V

-10 °C

40 °C

60 Hz

50 Hz

TE Connectivity Corcom Filters

1EF1F

1 A

0.25 in

6.3 mm

Quick Connect

Filtered (EMI, RFI) - Commercial

Flange, Panel Mount

IEC 320-C14

CSA, UL, VDE

Male Blades, Receptacle

250 VAC

120 VAC

Variable Size

Front or Rear Side Mount

TE Connectivity Corcom Filters

1EZP

Single Phase

Through Hole

CSA, UR, VDE

21.2 mH

PC Pins

Single Stage

1 A

General Purpose

250 V

-10 °C

40 °C

60 Hz

50 Hz

Part	Current Rating - Appliance Inlet	Current Rating - Filter	Termination	Termination	Termination	Filter Type	Mounting Type	Connector Style	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Cutout Dimensions	Inductance	Termination Style	Configuration	Current	Applications	Voltage - Rated AC	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Operating [Max]	Frequency - Operating [Min]	Features
TE Connectivity Corcom Filters 1EBF1	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	IEC 320-C14	CSA, UL, VDE	25.65 mm	35.56 mm	Male Blades, Receptacle	250 VAC	120 VAC
TE Connectivity Corcom Filters 1EEJ2	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Panel Mount, Flange, Through Hole, Right Angle	IEC 320-C14	CSA, UL, VDE	22.86 mm	30.48 mm	Male Blades, Receptacle	250 VAC	120 VAC
TE Connectivity Corcom Filters 1EBS1	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Panel Mount, Snap-In	IEC 320-C14	CSA, UL, VDE			Male Blades, Receptacle	250 VAC	120 VAC	1.73 mm	0.79 mm	0.031 "	0.068 in	Variable Size
TE Connectivity Corcom Filters 1EB3						Single Phase	Chassis Mount		CSA, UR, VDE											1.86 mH	Wire Leads	Single Stage	1 A	General Purpose	250 V	-10 °C	40 °C	60 Hz	50 Hz
TE Connectivity Corcom Filters 1EF2F	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount, Right Angle	IEC 320-C14	CSA, UL, VDE	22.86 mm	30.48 mm	Male Blades, Receptacle	250 VAC	120 VAC
TE Connectivity Corcom Filters 1EEA2	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount, Right Angle	IEC 320-C14	CSA, UL, VDE	22.86 mm	30.48 mm	Male Blades, Receptacle	250 VAC	120 VAC
TE Connectivity Corcom Filters 1EDP						Single Phase	Through Hole		CSA, UR, VDE												PC Pins	Single Stage	1 A	General Purpose	250 V	-10 °C	40 °C	60 Hz	50 Hz
TE Connectivity Corcom Filters 1EF1F	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	IEC 320-C14	CSA, UL, VDE			Male Blades, Receptacle	250 VAC	120 VAC					Variable Size											Front or Rear Side Mount
TE Connectivity Corcom Filters 1EZP						Single Phase	Through Hole		CSA, UR, VDE											21.2 mH	PC Pins	Single Stage	1 A	General Purpose	250 V	-10 °C	40 °C	60 Hz	50 Hz
