1EB3

Active

TE Connectivity Corcom Filters

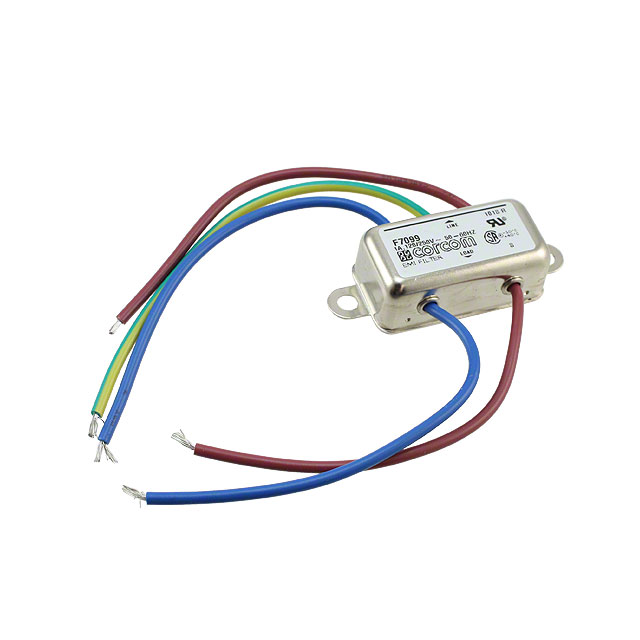

LINE FILTER 250VAC 1A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector Chart Datasheet

1EB3

Active

TE Connectivity Corcom Filters

LINE FILTER 250VAC 1A CHASSIS

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector Chart Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.62
		10	$ 12.30

Description

General part information

1E Series

Single Phase EMC/EMI Line Filter 1 A 250V 50/60Hz Single Stage Wire Leads

Documents

Technical documentation and resources

Corcom EMI/RFI Filter Selector Chart

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1EB3	1E Series

Accomodates a Fuse	-	False
Applications	General Purpose	General Purpose
Approval Agency	VDE, CSA, UR	UL, VDE, CSA, UR
Configuration	Single Stage	Single Stage
Connector Style	-	IEC 320-C14
Connector Type	-	Male Blades, Receptacle
Current	1 A	1 A
Current Rating - Appliance Inlet	-	1 A
Current Rating - Filter	-	1 A
Features	-	Front or Rear Side Mount
Filter Type	Single Phase	Filtered (EMI, RFI) - Commercial, Single Phase
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	1.86 mH	1.86 - 21.2 mH
Mounting Type	Chassis Mount	Panel Mount, Flange, Panel Mount, Flange, Through Hole, Right Angle, Snap-In, Chassis Mount, Right Angle, Through Hole
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Panel Cutout Dimensions	-	22.86 - 25.65 mm
Panel Cutout Dimensions	-	30.48 - 35.56 mm
Panel Cutout Dimensions	-	Variable Size
Panel Thickness	-	1.73 mm
Panel Thickness	-	0.79 mm
Panel Thickness	-	0.031 "
Panel Thickness	-	0.068 in
Termination	-	0.25 in
Termination	-	6.3 mm
Termination	-	Quick Connect
Termination Style	Wire Leads	Wire Leads, PC Pins
Voltage - Rated AC	250 V	250 V
Voltage Rating - Appliance Inlet	-	250 VAC
Voltage Rating - Appliance Inlet	-	120 VAC

1E Series

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Current Rating - Appliance Inlet	Current Rating - Filter	Termination	Termination	Termination	Filter Type	Mounting Type	Connector Style	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Cutout Dimensions	Inductance	Termination Style	Configuration	Current	Applications	Voltage - Rated AC	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Operating [Max]	Frequency - Operating [Min]	Features
TE Connectivity Corcom Filters 1EBF1	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	IEC 320-C14	CSA, UL, VDE	25.65 mm	35.56 mm	Male Blades, Receptacle	250 VAC	120 VAC
TE Connectivity Corcom Filters 1EEJ2	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Panel Mount, Flange, Through Hole, Right Angle	IEC 320-C14	CSA, UL, VDE	22.86 mm	30.48 mm	Male Blades, Receptacle	250 VAC	120 VAC
TE Connectivity Corcom Filters 1EBS1	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Panel Mount, Snap-In	IEC 320-C14	CSA, UL, VDE			Male Blades, Receptacle	250 VAC	120 VAC	1.73 mm	0.79 mm	0.031 "	0.068 in	Variable Size
TE Connectivity Corcom Filters 1EB3						Single Phase	Chassis Mount		CSA, UR, VDE											1.86 mH	Wire Leads	Single Stage	1 A	General Purpose	250 V	-10 °C	40 °C	60 Hz	50 Hz
TE Connectivity Corcom Filters 1EF2F	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount, Right Angle	IEC 320-C14	CSA, UL, VDE	22.86 mm	30.48 mm	Male Blades, Receptacle	250 VAC	120 VAC
TE Connectivity Corcom Filters 1EEA2	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount, Right Angle	IEC 320-C14	CSA, UL, VDE	22.86 mm	30.48 mm	Male Blades, Receptacle	250 VAC	120 VAC
TE Connectivity Corcom Filters 1EDP						Single Phase	Through Hole		CSA, UR, VDE												PC Pins	Single Stage	1 A	General Purpose	250 V	-10 °C	40 °C	60 Hz	50 Hz
TE Connectivity Corcom Filters 1EF1F	1 A	1 A	0.25 in	6.3 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	IEC 320-C14	CSA, UL, VDE			Male Blades, Receptacle	250 VAC	120 VAC					Variable Size											Front or Rear Side Mount
TE Connectivity Corcom Filters 1EZP						Single Phase	Through Hole		CSA, UR, VDE											21.2 mH	PC Pins	Single Stage	1 A	General Purpose	250 V	-10 °C	40 °C	60 Hz	50 Hz
